Echo SRM-302ADX Brushcutter

Model: SRM-302ADX

Back To Assemblies

Save Part Not Listed?
product name

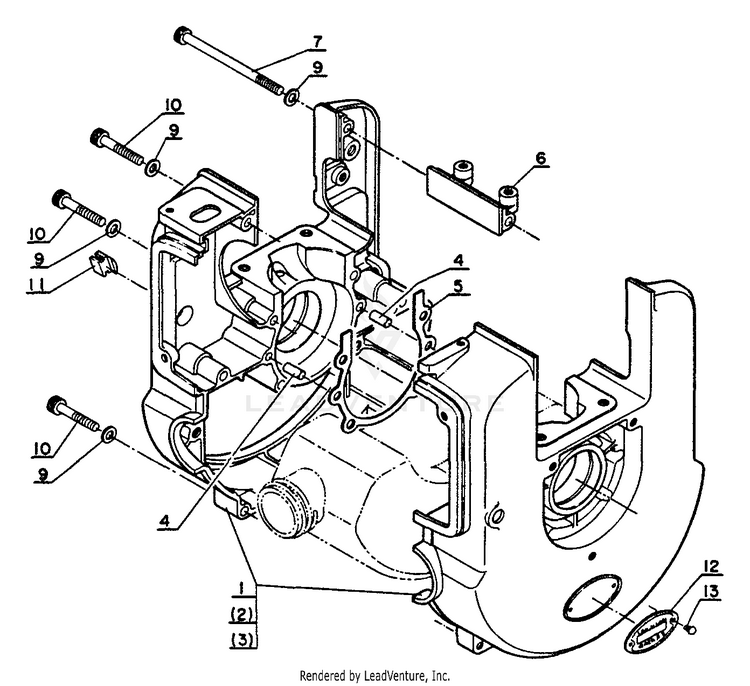

Crankcase

...
...
1
CRANKCASE KIT ECH-10020004931
...
2
N/A ECH---
...
3
N/A ECH---
...
4
PIN, LOCATING 4 ECH-V622000020
...
5
GASKET, CRANKCASE ECH-10024204930
...
6
BRACKET, MUFFLER ECH-14566304130
...
7
SCREW - 4x65 ECH-90010504065
...
9
WASHER 4 MM ECH-90060000004
...
10
SCREW - 4x20 ECH-90010504025
...
11
PLUG ECH-10061403930
...
12
MODEL PLATE ECH-89001004130
...
13
RIVET ECH-89001100130
Schematic Image Zoomed
