Echo SRM-302ADX Brushcutter

Model: SRM-302ADX

Back To Assemblies

Save Part Not Listed?
product name

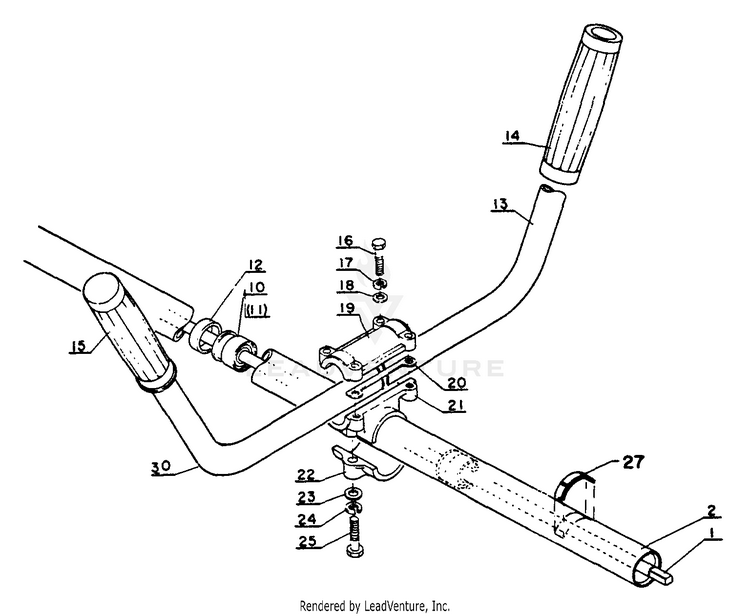

Driveshaft, Handles

...
...
1
DRIVESHAFT ECH-61001104130
...
2
PIPE, MAIN Includes ITEMS 10-12 ECH-61020604930
...
10
STOPPER ECH-61010504930
...
11
N/A ECH---
...
12
BUSHING ECH-61011204930
...
13
HANDLE Includes ITEMS 14-15 ECH-35101005530
...
14
GRIP, HANDLE ECH-35131527931
...
15
GRIP, HANDLE ECH-35131102330
...
16
BOLT - 5x25 ECH-90010005025
...
17
WASHER, SPRING 5 ECH-90060500005
...
18
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
19
BRACKET ASSY, HANDLE ECH-35130104130
...
21
BRACKET ASSY, HANDLE ECH-35130104130
...
22
BRACKET ASSY, HANDLE ECH-35130104130
...
20
WASHER ECH-35131904130
...
23
WASHER 6.5x11.5x0.8 ECH-90060000006
...
24
WASHER, SPRING 6 ECH-90060500006
...
25
BOLT - 6x30 ECH-90010006030
...
27
LABEL - ALIGNMENT ECH-89015204930
...
30
HANDLE, LEFT ECH-35121005530
