Echo SRM-302ADX Brushcutter

Model: SRM-302ADX

Back To Assemblies

Save Part Not Listed?
product name

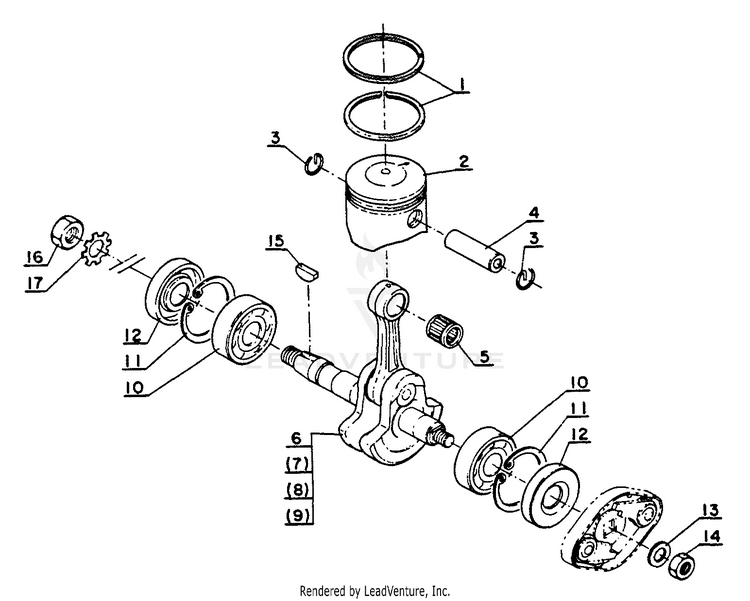

Bearings, Crankshaft, Piston

...
...
1
RING, PISTON ECH-10001100310
...
2
PISTON KIT ECH-10000003930
...
3
RING, SNAP ECH-10001503931
...
4
PIN, PISTON ECH-10001303930
...
5
BEARING, NEEDLE 9 ECH-10001216131
...
6
CRANKSHAFT ASSY ECH-10010004130
...
7
N/A ECH---
...
8
N/A ECH---
...
9
N/A ECH---
...
10
BEARING, BALL 6201 ECH-9403536201
...
11
RING, SNAP 32 ECH-90070200032
...
12
SEAL, OIL 12 ECH-10021203930
...
13
WASHER 6.5x11.5x0.8 ECH-90060000006
...
14
LOCKNUT - 6 ECH-10013903930
...
15
KEY, WOODRUFF ECH-61032502730
...
16
NUT M8 ECH-90050000008
...
17
LOCKWASHER - 8 ECH-90061140008
