Echo SRM-302ADX Brushcutter

Model: SRM-302ADX

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

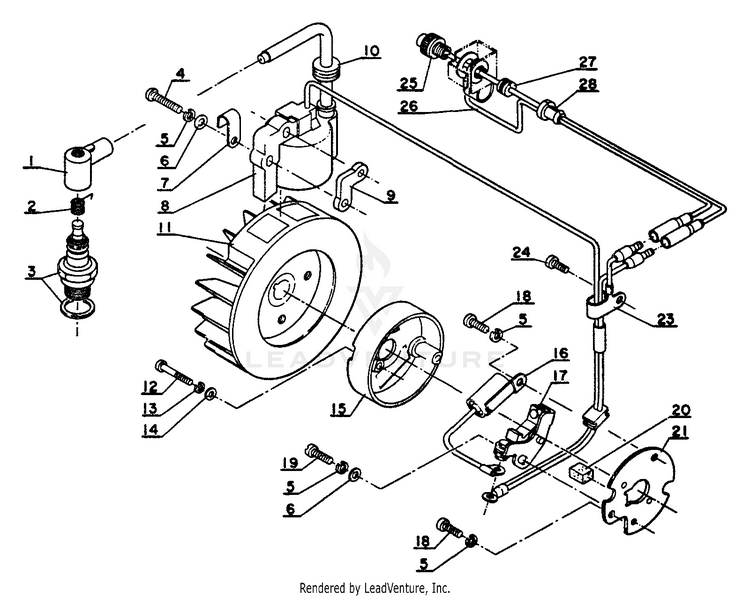

Ignition

...
...
1
CAP, SPARK PLUG ECH-15901201620
...
2
TERMINAL, SPARK PLUG ECH-15901103432
...
3
FLYWHEEL ECH-159010-00330
...
4
SCREW ECH-15931412330
...
5
WASHER, SPRING 4 ECH-900605-00004
...
6
WASHER 4 MM ECH-90060000004
...
7
CLIP (B) ECH-15911304930
...
8
COIL, IGNITION ECH-15012603930
...
9
SPACER ECH-15011713730
...
10
BUSHING ECH-15011204930
...
11
FLYWHEEL ECH-15020004131
...
12
SCREW 3x20 ECH-90022003020
...
13
LOCKWASHER - 3 ECH-90060500003
...
14
WASHER 3 MM ECH-90060000003
...
15
COVER, BREAKER ECH-15611203930
...
16
CONDENSER ECH-15012703930
...
17
CONTACT POINT SET ECH-15010103930
...
18
SCREW 4x10 ECH-90022004010
...
19
SCREW 4x12 ECH-90022004012
...
20
OILER ECH-15013403930
...
21
STATER PLATE ECH-15013203930
...
23
CLIP A ECH-15911204130
...
24
SCREW 4x8 ECH-90022004008
...
25
STOPPER BUTTON ECH-16610104930
...
26
LEAD - GROUND ECH-16201004930
...
27
GROMMET ECH-15111404630
...
28
RUBBER BUSH ECH-16211004930
