Echo SRM-302ADX Brushcutter

Model: SRM-302ADX

Back To Assemblies

Save Part Not Listed?
product name

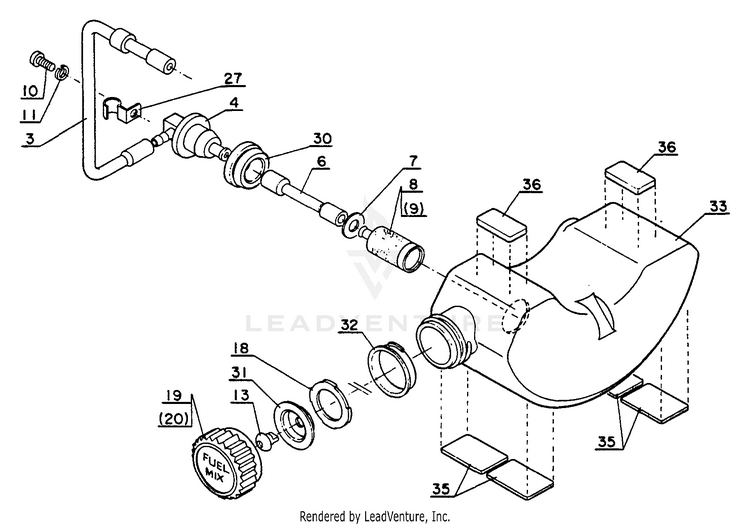

Fuel System

...
...
3
PIPE, FUEL - OUTER ITEM IS NO LONGER AVAILABLE ECH-13201204930
...
4
CONNECTOR, PIPE ECH-13201104931
...
6
FUEL PIPE ITEM IS NO LONGER AVAILABLE ECH-13201004131
...
7
WASHER 6.5x11.5x0.8 ECH-90060000006
...
8
FILTER, FUEL ECH-A369000470
...
9
N/A ECH---
...
10
SCREW 4x12 ECH-90022004012
...
11
WASHER, SPRING 4 ECH-900605-00004
...
13
VALVE ECH-A356000070
...
18
GASKET, FUEL CAP ECH-13101604931
...
19
CAP ECH-13101704930
...
20
N/A ECH---
...
27
CLAMP ECH-13211204930
...
30
SEAL ECH-13201904932
...
31
HOLDER, CHECK VALVE ECH-13101504931
...
32
GASKET ECH-13103804930
...
33
TANK, FUEL ECH-13101004932
...
35
RUBBER SEAT (A) ECH-13192404930
...
36
RUBBER SEAT (B) ECH-13192704930
Schematic Image Zoomed
