Echo SRM-302ADX Brushcutter

Model: SRM-302ADX

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

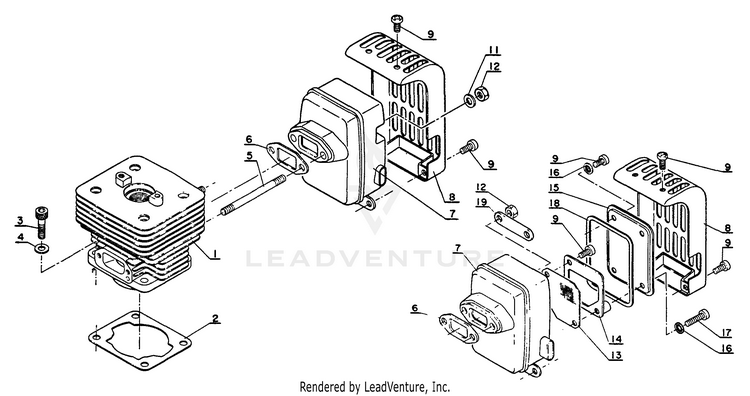

Cylinder

...
...
1
CYLINDER ECH-10101104930
...
2
GASKET, CYL. BASE ECH-10101003931
...
3
BOLT 5x20 HSH ECH-90010505020
...
4
WASHER ECH-10024702830
...
5
BOLT, STUD ECH-10101404930
...
6
GASKET, MUFFLER ECH-14551003931
...
7
MUFFLER ECH-14561004932
...
8
COVER, MUFFLER ECH-14562104930
...
9
SCREW 4x8 ECH-90022004008
...
11
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
12
NUT, LOCK M5 ECH-90056000005
...
13
SCREEN, SPARK ARRESTER OPTIONAL ECH-14586204930
...
14
RETAINER, SCREEN OPTIONAL ECH-14586304930
...
15
COVER, MUFFLER OPTIONAL ECH-14586104930
...
16
WASHER, LOCK 4 MM OPTIONAL ECH-90061000004
...
17
SCREW 4x18 OPTIONAL ECH-90022004018
...
18
GASKET, EXHAUST OPTIONAL ECH-14586604930
...
19
WASHER OPTIONAL ECH-14564204930
...
12
NUT, LOCK M5 ECH-90056000005
