Echo SRM-302ADX Brushcutter

Model: SRM-302ADX

Back To Assemblies

Save Part Not Listed?
product name

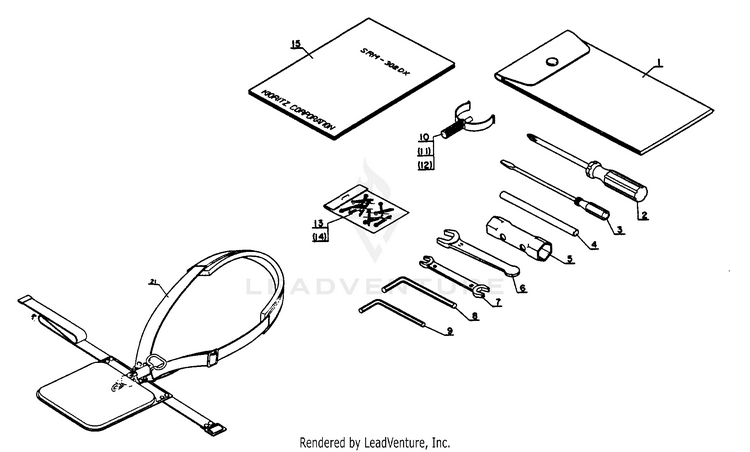

Harness, Tools

...
...
xx
SERVICE TOOL KIT ECH-89600004130
...
1
BAG, TOOL ECH-X698000170
...
2
SCREWDRIVER - CROSS HEAD ECH-89571000430
...
3
SCREWDRIVER, SLOTTED ECH-89581100130
...
4
ROD, HANDLE ECH-89541200230
...
5
WRENCH 17x19 ECH-89541905330
...
6
SPANNER 10x13 ECH-89512303830
...
7
SPANNER 8x10 ECH-89511200330
...
8
WRENCH, ALLEN 4 MM ECH-A605000100
...
9
WRENCH, ALLEN 3 MM ECH-X605000090
...
10
FITTING TOOL ECH-89750104130
...
11
UNKNOWN ECH---
...
12
UNKNOWN ECH---
...
13
PIN, COTTER 2x22 (PKG. OF 10) ECH-89850201130
...
14
UNKNOWN ECH---
...
15
OWNER'S MANUAL ECH-89859104930
...
21
HARNESS, SHOULDER ECH-C062000690
