Echo SRM-302ADX Brushcutter

Model: SRM-302ADX

Back To Assemblies

Save Part Not Listed?
product name

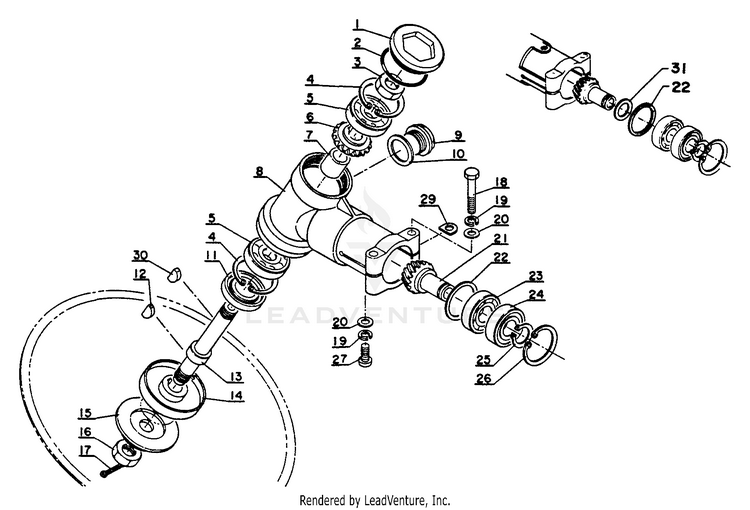

Gear Case

...
...
xx
GEAR CASE ASSY ECH-61040004630
...
1
COVER, GEAR CASE ECH-61043104130
...
2
O-RING ECH-61043204130
...
3
NUT 3N-10 ECH-90050200010
...
4
E-RING 30 ECH-90070200030
...
5
BEARING, BALL 6200 ECH-90081006200
...
6
GEAR SET ECH-61030004630
...
21
GEAR SET ECH-61030004630
...
7
SPACER ECH-61031504130
...
8
CASE, GEAR ECH-61041004130
...
9
FITTING, GREASE ECH-61051001930
...
10
GASING, GEAR ECH-61051101230
...
11
SEAL, OIL ECH-10021200120
...
12
KEY, WOODRUFF ECH-61032502730
...
13
DRIVESHAFT ECH-61031004130
...
14
PLATE, ADAPTOR - UPPER ECH-61031304130
...
15
PLATE, ADAPTOR - LOWER ECH-C535000150
...
16
NUT 10 ECH-90051100010
...
17
PIN, COTTER 2x22 BULK OPTION: 89850201130 - 10 PACK ECH-90030020022
...
19
WASHER, SPRING 5 ECH-90060500005
...
20
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
22
WASHER ECH-61031604130
...
23
BEARING, BALL 6001 ECH-90080036001
...
24
BEARING, BALL ECH-9404206001
...
25
RING, SNAP 12 ECH-90070100012
...
26
RING, SNAP 28 ECH-90070200028
...
27
SCREW 5x10 ECH-90022005010
...
30
KEY ECH-10013101620
...
18
BOLT 5x30 ECH-90010005030
...
19
WASHER, SPRING 5 ECH-90060500005
...
20
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
29
D-WASHER ECH-61023904130
...
31
WASHER ECH-61031705330
