Echo SRM-300E1 Brushcutter

Model: SRM-300E1

Back To Assemblies

Save Part Not Listed?
product name

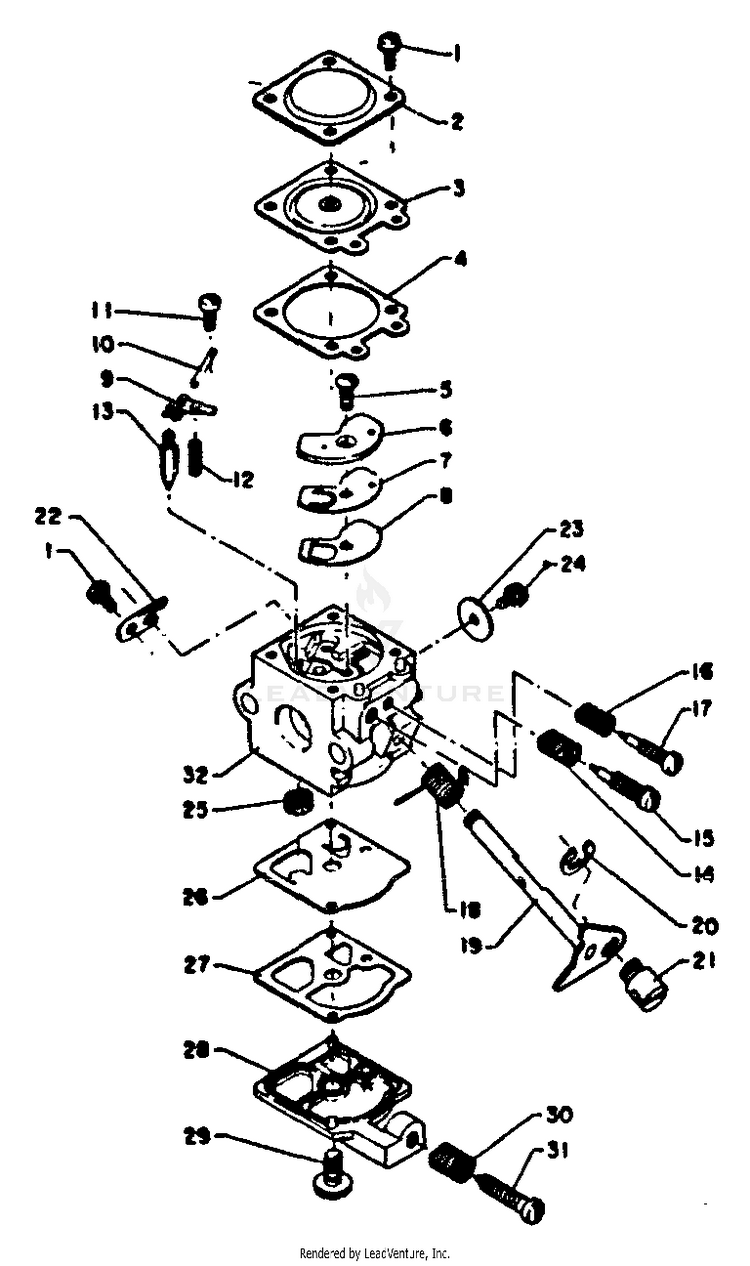

Carburetor

...
...
xx
CARBURETOR - WA-87 Consists of 1 thru 32 ECH-12300006720
...
1
SCREW ECH-12314403930
...
2
COVER, MET. DIA. ECH-P003006890
...
3
DIAPHRAGM, METERING ECH-12314103930
...
4
GASKET, METERING DIAPHRAGM ECH-P003006980
...
5
SCREW, CIRCUIT PLATE ECH-12316705230
...
6
PLATE, CIRCUIT ECH-12316603930
...
7
VALVE, CHECK ECH-12316503930
...
8
GASKET, CIRCUIT PLATE ECH-12316403930
...
9
LEVER, METERING ECH-12312338330
...
10
PIN ECH-P003006740
...
11
SCREW, METER. LEV. PIN ECH-P003007030
...
12
SPRING ECH-12312203930
...
13
VALVE, INLET NEEDLE ECH-12313703930
...
14
SPRING, NEEDLE ECH-12311903930
...
15
NEEDLE, HIGH SPEED ECH-12312006720
...
16
SPRING, NEEDLE ECH-12312103930
...
17
NEEDLE, IDLE ECH-12311806520
...
18
SPRING, THROTTLE RETURN ECH-12311309660
...
19
SHAFT, THROTTLE ECH-12311705020
...
20
RING, RETAINING ECH-12312710630
...
21
SWIVEL ECH-12317204320
...
22
CLIP, THROTTLE SHAFT ECH-12312703930
...
23
VALVE, THROTTLE ECH-12311603930
...
24
SCREW ECH-12311403930
...
25
SCREEN, INLET ECH-P003006710
...
26
DIAPHRAGM, FUEL PUMP ECH-12311203930
...
27
GASKET, FUEL PUMP ECH-12312503930
...
28
COVER, PUMP ECH-12312411130
...
29
SCREW, PUMP COVER ECH-P003006850
...
30
SPRING, IDLE ADJUST ECH-12313311130
...
31
SCREW, IDLE ADJUST ECH-12313406530
...
32
BODY, CARBURETOR NOT AVAILABLE SEPARATELY ECH---
