Echo SRM-300E1 Brushcutter

Model: SRM-300E1

Back To Assemblies

Save Part Not Listed?
product name

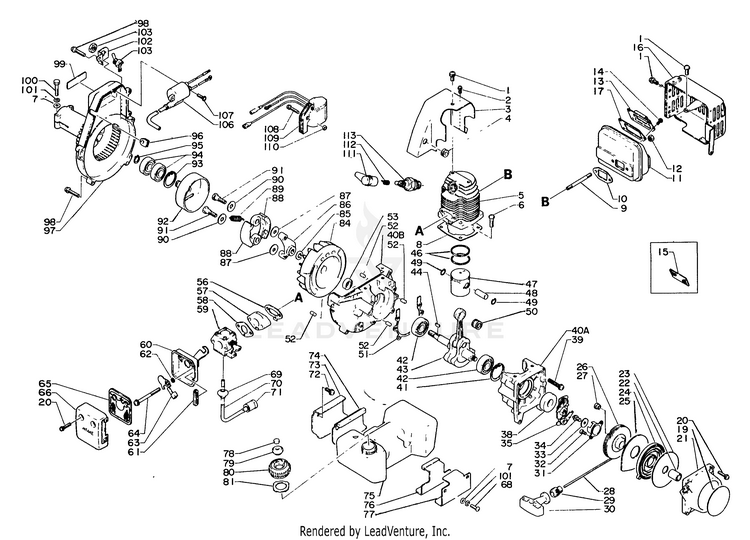

Engine, Crankcase, Ignition, Stop Switch

...
...
1
SCREW 5x10 ECH-90024205010
...
2
SCREW 4x10 ECH-90024204010
...
3
COVER, CYLINDER ECH-10151406720
...
4
GROMMET ECH-15011409130
...
5
CYLINDER ECH-10101106720
...
6
SCREW 5x22 ECH-90024205022
...
7
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
8
GASKET, CYLINDER ECH-10101006720
...
9
BOLT, STUD ECH-10101422330
...
xx
MUFFLER ASSY Consists of 1, 10 thru 17 ECH-14580306721
...
10
GASKET, MUFFLER ECH-14551005731
...
11
MUFFLER ECH-14580606720
...
12
NUT, LOCK M5 ECH-90056000005
...
13
LID, MUFFLER ECH-14580906720
...
14
SCREW 4x8 ECH-90024204008
...
15
SCREEN, SPARK ARRESTER ECH-14586206720
...
16
COVER, MUFFLER ECH-14562106720
...
17
GASKET,MUFFLER LID ECH-14586606721
...
19
LABEL - ECHO ECH-89011849330
...
20
SCREW 4x20 ECH-90024204020
...
xx
STARTER ASSY Consists of 21 thru 34 ECH-17720006722
...
21
CASE, STARTER ECH-17720906721
...
22
BUSHING ECH-17721612330
...
23
PLATE, SIDE ECH-17722106720
...
24
SPRING, RECOIL ECH-17722003930
...
25
PLATE, SIDE ECH-17724206721
...
26
REEL, ROPE ECH-17721504130
...
27
CLIP, STARTER ROPE ECH-17724603930
...
28
ROPE, STARTER 3.5x850 RePower BULK OPTION: 99944445000 ECH-17722603930
...
29
GUIDE, ROPE ECH-17722705330
...
30
HANDLE ECH-17722811130
...
31
PAWL CATCHER ECH-17724304130
...
32
SCREW 4x8 ECH-90024104008
...
33
WASHER 5.2x16x1.0 ECH-17721402830
...
34
SCREW 5x10 ECH-90024105010
...
35
PAWL ASSY, STARTER ECH-177305-06720
...
38
SEAL, OIL 18 ECH-10021302830
...
39
SCREW 5x30 ECH-90024205030
...
40
CRANKCASE KIT Includes 52 ECH-10020006721
...
40A
CRANKCASE KIT See Ref No. 40, Crankcase set, P/N 10020006720 ECH-10020006721
...
40B
CRANKCASE KIT See Ref No. 40, Crankcase set, P\N 10020006720 ECH-10020006721
...
52
PIN, LOCATING 5x10 ECH-10021502830
...
41
RING, SNAP 35 ECH-90070200035
...
42
BEARING, BALL 6202 ECH-90081036202
...
43
CRANKSHAFT ECH-10010006720
...
44
KEY ECH-10013101620
...
46
RING, PISTON ECH-10001105731
...
47
PISTON KIT ECH-10000005730
...
48
PIN, PISTON ECH-10001305731
...
49
RING, SNAP 8 ECH-10001500120
...
50
BEARING, NEEDLE 10 ECH-10001212331
...
51
GASKET, CRANKCASE ECH-10024206720
...
53
SEAL, OIL ECH-10021211230
...
56
GASKET ECH-13001006721
...
57
INSULATOR, INTAKE ECH-13001706721
...
58
GASKET ECH-13001604631
...
59
CARBURETOR - WA-87 ECH-12300006720
...
60
CASE, AIR FILTER Includes 61. ECH-13030105021
...
61
GROMMET ECH-17881005020
...
62
WASHER 5.2x8x0.8T ECH-17851600830
...
63
SHUTTER, CHOKE ECH-17851506720
...
64
SCREW 5x60 ECH-90024205060
...
65
FILTER, AIR ECH-13031006530
...
66
COVER, AIR FILTER ECH-13031305020
...
68
SCREW 5x14 ECH-90022005014
...
69
GROMMET ECH-13211504920
...
70
PIPE, FUEL 3x5x150 BLACK RePower BULK OPTION: 90014 ECH-13201004921
...
71
FILTER, FUEL ECH-A369000480
...
72
SCREW 5x14 ECH-90024205014
...
73
BRACKET, FUEL TANK ECH-13191006720
...
74
CUSHION ECH-13192006721
...
75
TANK, FUEL ECH-13101006720
...
76
CUSHION ECH-13192406721
...
77
BRACKET, FUEL TANK ECH-13191806720
...
xx
CAP ASSY Consists of 78 thru 81. ECH-13100406320
...
78
FILTER, CHECK VALVE ECH-13131505020
...
79
VENT ASSY ECH-13131406320
...
80
CAP ASSY ECH-13100406320
...
81
PACKING ECH-13101604920
...
84
FLYWHEEL ECH-15020003931
...
85
WASHER, SPRING 8 ECH-90060500008
...
86
BOSS, CLUTCH ECH-17501606720
...
87
WASHER 6.2x19x1.0 ECH-17504805530
...
88
SHOE, CLUTCH ECH-17500905731
...
89
SPRING, CLUTCH ECH-17501805731
...
90
WASHER ECH-17504905530
...
91
BOLT, CLUTCH ECH-17504605530
...
92
DRUM, CLUTCH ECH-17500506720
...
93
RING, SNAP 32 ECH-90070200032
...
94
BEARING, BALL 6201 ECH-90081206201
...
95
RING, SNAP 12 ECH-90070100012
...
96
GROMMET ECH-15011009130
...
97
COVER, FAN ECH-10151106720
...
98
SCREW 5x25 ECH-90024205025
...
99
LABEL - MODEL ECH-89011209130
...
100
BOLT - 5x25 ECH-90010005025
...
101
WASHER, SPRING 5 ECH-90060500005
...
102
BRACKET, SWITCH ECH-16381006720
...
103
SWITCH, IGNITION ECH-16340006520
...
106
COIL, IGNITION ECH-15062609130
...
107
SCREW 4x15 ECH-90024204015
...
108
SCREW 4x22 ECH-90024204022
...
109
COIL, IGNITION ECH-15060309130
...
110
WASHER ECH-15011709130
...
111
CAP, SPARK PLUG ECH-15901203433
...
112
TERMINAL, SPARK PLUG ECH-15901103432
...
113
FLYWHEEL ECH-159010-00330
