Echo SRM-300E Brushcutter

Model: SRM-300E

Back To Assemblies

Save Part Not Listed?
product name

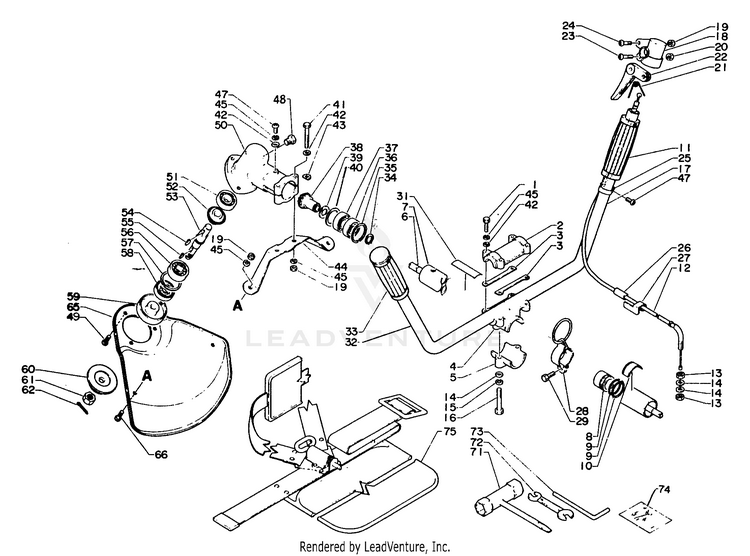

Driveshaft, Gear Case, Handles, Harness, Shield, Throttle, Tools

...
...
xx
BRACKET ASSY, HANDLE Consists of 1 thru 5, 14 thru 16 and 42, 45 ECH-35130104130
...
1
BOLT - 5x25 ECH-90010005025
...
2
UNKNOWN ECH---
...
3
WASHER ECH-35131904130
...
4
UNKNOWN ECH---
...
5
UNKNOWN ECH---
...
6
DRIVESHAFT ECH-61001104130
...
7
MAIN PIPE ASSY Includes 8 and 9 ECH-61020609130
...
8
STOPPER ECH-61010504130
...
9
O-RING 22 ECH-90072000022
...
10
LABEL - ALIGNMENT ECH-89015204930
...
11
GRIP, HANDLE ECH-35131527931
...
12
CABLE, THROTTLE ECH-17800209131
...
13
NUT M6 ECH-90050200006
...
14
WASHER 6.5x11.5x0.8 ECH-90060000006
...
15
WASHER, SPRING 6 ECH-90060500006
...
16
BOLT - 6x30 ECH-90010006030
...
17
HANDLE ECH-35101005530
...
18
BRACKET, TRIGGER ECH-17802406130
...
19
NUT, LOCK M5 ECH-90056000005
...
20
NUT M5 ECH-90050000005
...
21
SPRING ECH-17804305230
...
22
TRIGGER, THROTTLE ECH-17801005330
...
23
SCREW 5x25 ECH-90022005025
...
24
SCREW ECH-17811005330
...
25
CLAMP ECH-17810605330
...
26
TUBE ECH-17812704930
...
27
BRACKET ECH-17811104930
...
28
HANGER ASSY, HARNESS ECH-P021012661
...
29
BOLT 5x12 ECH-90010005012
...
31
LABEL ECH-89016007530
...
32
HANDLE, LEFT ECH-35121005530
...
33
GRIP, HANDLE ECH-35131102330
...
34
RING, SNAP 12 ECH-90070100012
...
35
RING, SNAP 28 ECH-90070200028
...
36
BEARING, BALL ECH-9404206001
...
37
BEARING, BALL 6001 ECH-90080036001
...
38
GEAR SET ECH-61030005331
...
52
GEAR SET ECH-61030005331
...
39
WASHER ECH-61031705330
...
40
WASHER ECH-61031604130
...
41
BOLT 5x40 ECH-90010005040
...
42
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
43
D-WASHER ECH-61023904130
...
44
BRACKET, SHIELD MOUNTING ECH-69901523532
...
45
WASHER, SPRING 5 ECH-90060500005
...
47
SCREW 5x10 ECH-90022005010
...
48
BOLT 8x8 SP ECH-90010008008
...
49
SCREW 5x10 ECH-90024205010
...
50
CASE, GEAR ECH-61041007530
...
51
BEARING, BALL 6000 ECH-90080036000
...
53
DRIVESHAFT ECH-61031005330
...
54
KEY ECH-10013101620
...
55
KEY, WOODRUFF ECH-61032502730
...
56
BEARING, BALL 6201 ECH-9403536201
...
57
RING, SNAP 32 ECH-90070200032
...
58
SEAL, OIL ECH-61041305330
...
59
PLATE, ADAPTOR - UPPER ECH-61031304130
...
60
PLATE, ADAPTOR - LOWER ECH-C535000150
...
61
NUT 10 ECH-90051100010
...
62
PIN, COTTER 2x22 BULK OPTION: 89850201130 - 10 PACK ECH-90030020022
...
65
SHIELD, METAL DEBRIS ECH-C550000200
...
66
SCREW 5x8 ECH-90022005008
...
71
T-WRENCH 17x19 L200 ECH-X602000020
...
72
SPANNER 8x10 ECH-89511200330
...
73
TOOL, LOCKING 5x120 MM ECH-89751801131
...
74
PIN, COTTER 2x22 (PKG. OF 10) ECH-89850201130
...
75
HARNESS, SHOULDER ECH-C062000690
