Echo SRM-300AE Brushcutter

Model: SRM-300AE

Back To Assemblies

Save Part Not Listed?
product name

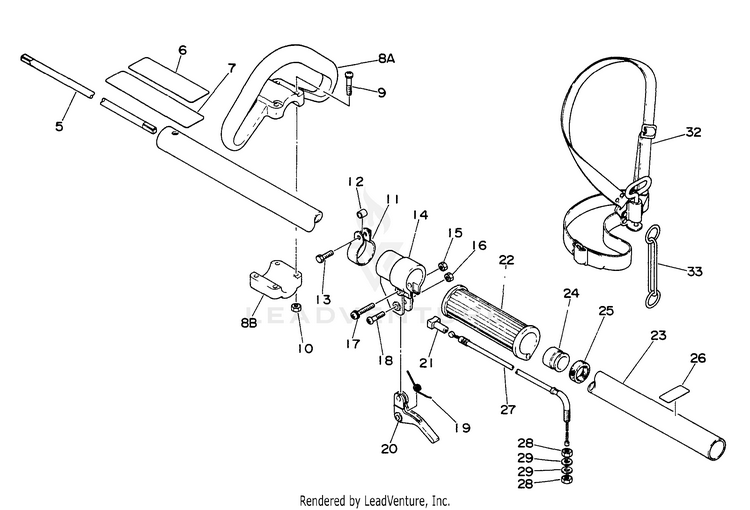

Driveshaft, Handles, Harness, Throttle

...
...
5
DRIVESHAFT ECH-61001104130
...
6
LABEL ECH-89017709130
...
7
LABEL ECH-89016044730
...
8
HANDLE ASSY - LOOP Includes items 9 and 10 ECH-35120106930
...
8A
HANDLE ASSY - LOOP See Ref No. 8, Loop handle ass'y , 35120106930 ECH-35120106930
...
8B
HANDLE ASSY - LOOP See Ref No. 8, Loop handle ass'y ,P\N 35120106930 ECH-35120106930
...
9
SCREW 5x35 ECH-90024205035
...
10
NUT M5 ECH-90050000005
...
11
HANGER, HARNESS ECH-30120707531
...
12
SPACER ECH-69901203330
...
13
BOLT 5x18 ECH-90010005018
...
14
BRACKET, TRIGGER ECH-17802406830
...
15
NUT M5 ECH-90050000005
...
16
NUT, LOCK M5 ECH-90056000005
...
17
SCREW 5x30 ECH-90024205030
...
18
SCREW ECH-17811005330
...
19
SPRING, THROTTLE ECH-17804306930
...
20
TRIGGER, THROTTLE ECH-C450000060
...
21
GUIDE, CABLE ECH-17804805630
...
22
GRIP ECH-35101205630
...
23
MAIN PIPE ASSY Includes items 24 and 25 ECH-61020609130
...
24
STOPPER ECH-61010504930
...
25
BUSHING ECH-61011204930
...
26
LABEL - ALIGNMENT ECH-89015204930
...
27
CABLE, THROTTLE ECH-17800124431
...
28
NUT M6 ECH-90050200006
...
29
WASHER 6.5x11.5x0.8 ECH-90060000006
...
32
HARNESS ASY Includes ITEM 33 ECH-30100055232
...
33
RING, HARNESS ECH-30130524330
