Echo SRM-300AE Brushcutter

Model: SRM-300AE

Back To Assemblies

Save Part Not Listed?
product name

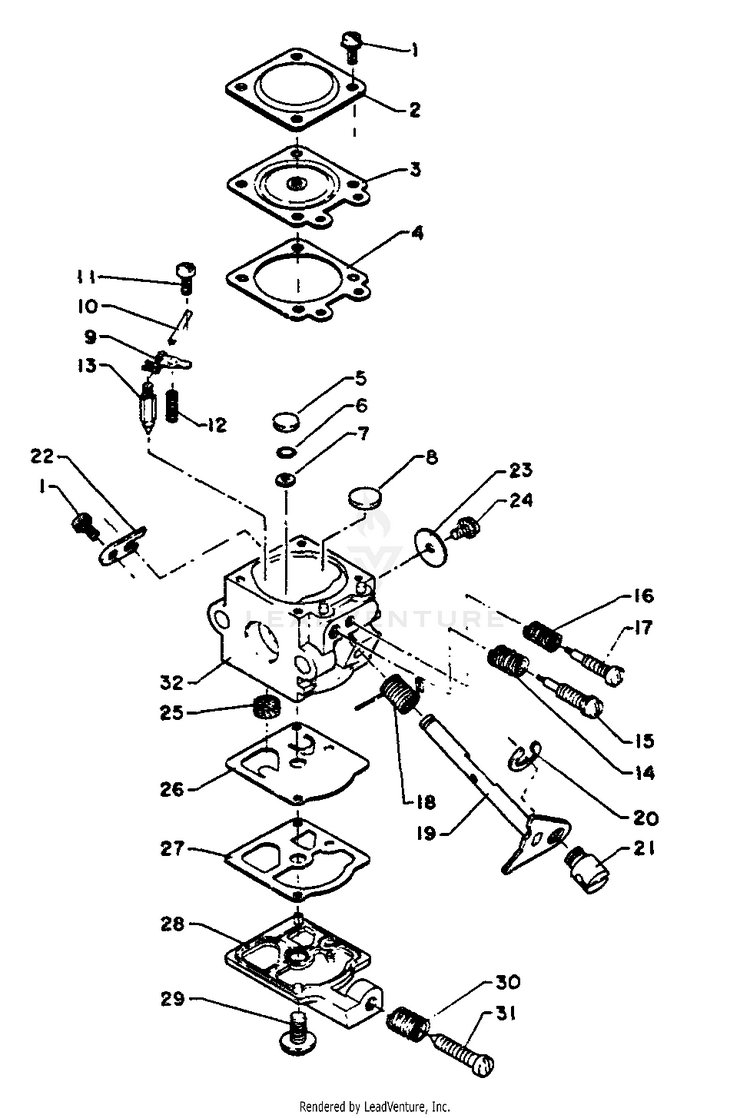

Carburetor

...
...
xx
CARBURETOR - WA-141 Consist of 1 thru 32 ECH-12300024430
...
1
SCREW-METERING COVER ECH-P003006960
...
2
COVER, MET. DIA. ECH-P003006890
...
3
DIAPHRAGM, METERING ECH-12314103930
...
4
GASKET, METERING ECH-12314006530
...
5
PLUG, WELCH ECH-12314516330
...
6
RING, RETAINING ECH-12316910630
...
7
SCREEN, SPARK ARRESTER ECH-12316810631
...
8
PLUG, WELCH ECH-P003006910
...
9
LEVER, METERING ECH-12312338330
...
10
PIN ECH-P003006740
...
11
SCREW, METER. LEV. PIN ECH-P003007030
...
12
SPRING ECH-12312211130
...
13
VALVE, INLET NEEDLE ECH-12313703930
...
14
SPRING, NEEDLE ECH-12311903930
...
15
NEEDLE, HIGH SPEED ECH-12312000760
...
16
SPRING, NEEDLE ECH-12312103930
...
17
NEEDLE, LOW SPEED ECH-12311824430
...
18
SPRING, THROTTLE RETURN ECH-12311315030
...
19
SHAFT, THROTTLE ECH-12311705020
...
20
RING, RETAINING ECH-12312710630
...
21
SWIVEL ECH-12317204320
...
22
CLIP, THROTTLE SHAFT ECH-12312703930
...
23
VALVE, THROTTLE ECH-12311610530
...
24
SCREW ECH-12311403930
...
25
SCREEN, INLET ECH-P003006710
...
26
DIAPHRAGM, FUEL PUMP ECH-P003006870
...
27
GASKET, FUEL PUMP ECH-12312515030
...
28
FUEL PUMP COVER ECH-P003007020
...
29
SCREW, PUMP COVER ECH-P003006850
...
30
SPRING ECH-12313306320
...
31
SCREW, IDLE ADJUST ECH-12313406320
...
32
LABEL - GENERATOR ECH---
...
xx
DIAPHRAGM/GASKET KIT Includes items 3, 26, 27 ECH-12310315030
...
xx
REPAIR KIT Includes items 3, 4, 9-13 and 25-27 ECH-12310216330
