Echo SRM-300AE Brushcutter

Model: SRM-300AE

Back To Assemblies

Save Part Not Listed?
product name

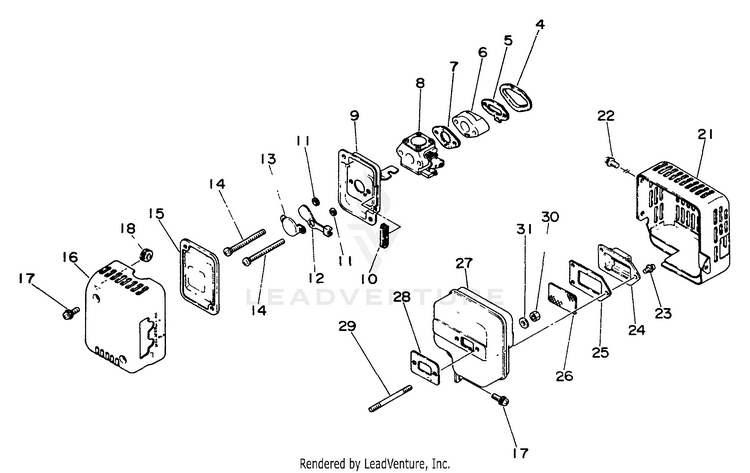

Intake, Exhaust, Air Cleaner

...
...
4
GROMMET ECH-13001224830
...
5
GASKET ECH-13001006721
...
6
INSULATOR, INTAKE ECH-13001706721
...
7
GASKET ECH-13001604631
...
8
CARBURETOR - WA-141 ECH-12300024430
...
9
CASE, AIR FILTER Includes ITEM 10 ECH-13030124830
...
10
GROMMET ECH-17881021630
...
11
WASHER 5.2x8x0.8T ECH-17851600830
...
12
SHUTTER, CHOKE ECH-17851524830
...
13
PLATE ECH-12901104630
...
14
SCREW 5x60 ECH-90024105060
...
15
FILTER, AIR ECH-13031024831
...
16
COVER, AIR FILTER ECH-13030824830
...
17
SCREW 5x14 ECH-90024205014
...
18
GROMMET ECH-15011200310
...
21
COVER, MUFFLER ECH-14562124831
...
22
SCREW 5x10 ECH-90024205010
...
23
SCREW 4x8 ECH-90024204008
...
24
LID, MUFFLER ECH-14580922730
...
25
GASKET,MUFFLER LID ECH-14586606721
...
26
SCREEN, SPARK ARRESTER ECH-14586206720
...
27
CASE, MUFFLER ECH-14580624530
...
28
GASKET, MUFFLER ECH-14551024831
...
29
BOLT, STUD ECH-10101404930
...
30
NUT, LOCK M5 ECH-90056000005
...
31
WASHER 5.5x12x0.8 ECH-90060300005
