Echo SRM-2610 Brushcutter

Model: SRM-2610

Back To Assemblies

Save Part Not Listed?
product name

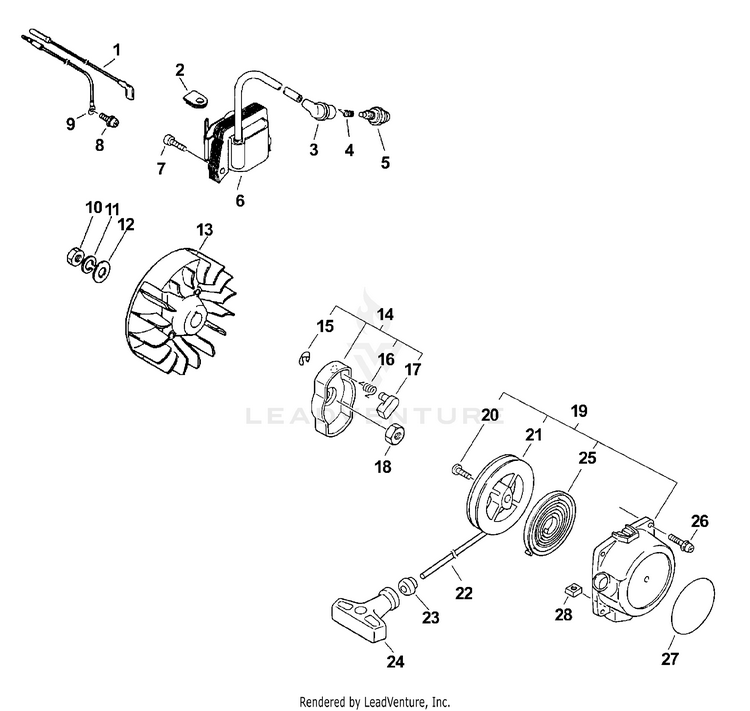

Ignition, Starter, Flywheel

...
...
1
LEAD - IGNITION 145 MM ECH-16201056430
...
2
GROMMET S/N 005001 - 050276 ECH-15611240630
...
2
GROMMET S/N 050277 & UP ECH-15611240630
...
3
CAP, SPARK PLUG ECH-15901203433
...
4
TERMINAL, SPARK PLUG ECH-15901103432
...
5
SPARK PLUG - BPM7Y ECH-99944500071R
...
5
SPARK PLUG - BPMR7A FOR CANADIAN MODELS ONLY ECH-15901010230
...
6
COIL, IGNITION ECH-15262656032
...
7
BOLT 5x20 ECH-90016205020
...
8
SCREW 5x10 ECH-90024205010
...
9
LEAD - GROUND ECH-16201452930
...
10
NUT 8x1.25 ECH-90050200008
...
11
WASHER, SPRING 8 ECH-90060500008
...
12
WASHER 8.5x16x1.2 ECH-90060000008
...
13
FLYWHEEL ECH-15280155930
...
14
PAWL ASSY, STARTER Includes ITEMS 15-17 ECH-A052000030
...
15
E-RING 4 ECH-90070000004
...
16
SPRING, RETURN ECH-17723440630
...
17
PAWL, STARTER ECH-17721840630
...
18
NUT 8x1.25 ECH-90050200008
...
19
STARTER ASSY, RECOIL INCLUDES ITEMS 20 - 25 ECH-17720055931
...
20
SCREW ECH-17723644330
...
21
REEL, ROPE ECH-17721540630
...
22
ROPE, STARTER USE BULK ROPE P/N 99944400050 DIA. 3.8 MM (.15") X 950 MM (37.0") ECH---
...
23
GUIDE, ROPE ECH-17722742030
...
24
GRIP, STARTER ECH-17722827030
...
25
SPRING, RECOIL ECH-17722040630
...
26
BOLT 4x14 ECH-90016204014
...
27
LABEL - STARTER - ECHO ECH-X502000330
...
28
NUT - 5 - SQUARE ECH-90056550005
...
xx
BULK STARTER ROPE - 4.0 MMx61 M ECH-99944450000
