Echo SRM-2601 Brushcutter

Model: SRM-2601

Back To Assemblies

Save Part Not Listed?
product name

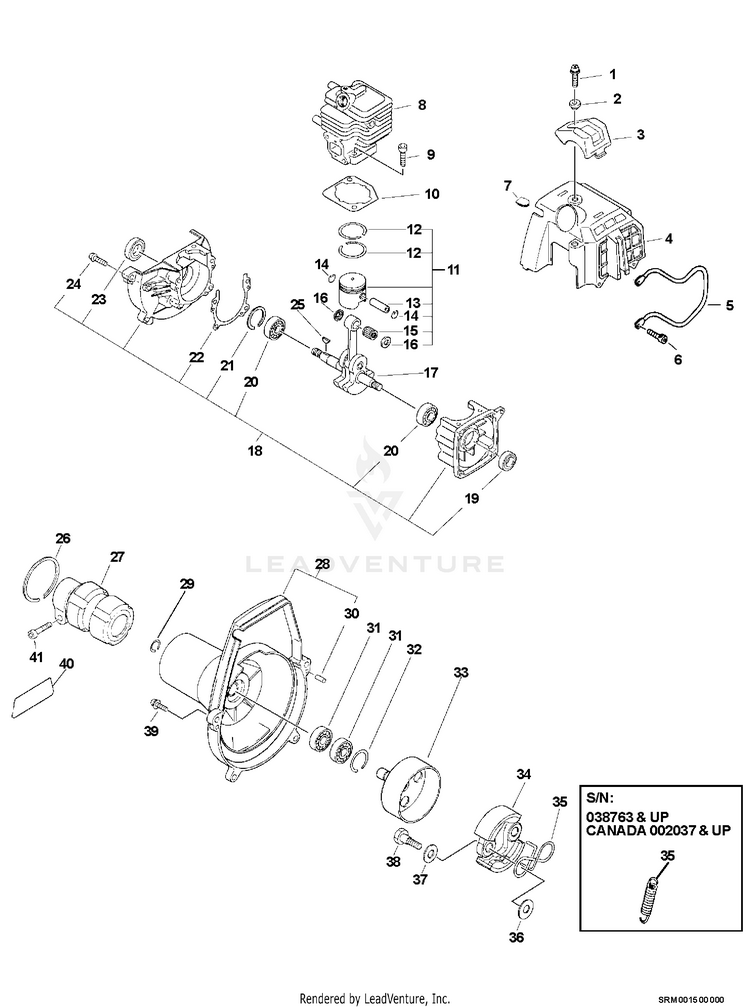

Crankcase, Engine, Engine Cover, Fan Case

...
...
xx
GASKET KIT ECH-88900057730
...
1
BOLT 5x20 ECH-90010605020
...
2
COLLAR 5 ECH-V353000020
...
3
GUARD, TOP ECH-15990555930
...
4
COVER, CYLINDER ECH-10150657730
...
5
GUARD, ENGINE OPTIONAL ECH-10026857730
...
6
BOLT 4x16 ECH-V202000830
...
7
GROMMET, PLUG S/N 050277 & UP ECH-10153828230
...
xx
SHORT BLOCK SRM-2601 INCLUDES ITEMS 8-24 ECH-SB1039
...
8
CYLINDER ECH-10103456532
...
9
BOLT 5x22 ECH-90016205022
...
10
GASKET, CYLINDER Included In GASKET KIT 88900057730 ECH-10101056030
...
11
PISTON KIT Includes ITEMS 12-16 S/N 005001 - 059438 ECH-P021000371
...
11
PISTON KIT Includes ITEMS 12-16 S/N 059439 & UP ECH-P021000371
...
12
RING, PISTON S/N 005001 - 059438 ECH-10001109560
...
12
RING, PISTON S/N 059439 & UP ECH-A101000010
...
13
PIN, PISTON ECH-V606000000
...
14
RING, SNAP ECH-10001504630
...
15
BEARING, NEEDLE ECH-V553000140
...
16
WASHER, THRUST ECH-10001455930
...
17
CRANKSHAFT ASSY USE SB1039 ECH---
...
18
CRANKCASE KIT INCLUDES 19-24 USE SB1039 ECH---
...
19
SEAL, OIL 12 ECH-10021305530
...
20
BEARING, BALL 6001 ECH-90080036001
...
21
RING, SNAP 28 ECH-90070200028
...
22
GASKET, CRANKCASE Included In GASKET KIT 88900057730 ECH---
...
23
SEAL, OIL 12 ECH-10021228230
...
24
BOLT 5x25 ECH-90016205025
...
25
KEY, WOODRUFF ECH-10014212330
...
26
RING, SNAP 42 ECH-90070200042
...
27
HOLDER, MAIN PIPE ECH-A575000640
...
28
COVER ASSY, FAN INCLUDES 29-33 S/N 005001 - 050276, CANADA 001001-002036 ECH-10150357732
...
28
COVER ASSY, FAN INCLUDES 29-33 S/N 050277 - 102046, CANADA 002037 & UP ECH-10150357732
...
28
CASE KIT, FAN INCLUDES 29-33 S/N 102047 & UP ECH-P021001580
...
29
E-RING 10 ECH-90070100010
...
30
PIN, LOCATING 4 ECH-V622000020
...
31
BEARING, BALL 6000LU ECH-90080706000
...
32
RING, SNAP 26 ECH-90070200026
...
33
DRUM, CLUTCH S/N 005001 - 102046, CANADA 001001 & UP ECH-A556000560
...
33
DRUM, CLUTCH S/N 102047 & UP ECH-A556000050
...
34
SHOE, CLUTCH S/N 005001 - 102046, CANADA 001001 & UP ECH-17500955931
...
34
SHOE, CLUTCH S/N 102047 & UP ECH-A553000200
...
35
SPRING, CLUTCH S/N 005001 - 038762, CANADA 001001-002036 ECH-17501855930
...
35
SPRING, CLUTCH S/N 038763 - 102046, CANADA 002037 & UP ECH-17501805533
...
35
SPRING, CLUTCH S/N 102047 & UP ECH-V451000090
...
36
WASHER 6.2x19x1.0 ECH-17504805530
...
37
WASHER, SPRING 8.5x16x0.5 ECH-17504956030
...
38
BOLT, CLUTCH 8x7.9xM6 ECH-17504656030
...
39
BOLT 5x18 ECH-90016205018
...
40
LABEL - MODEL ECH-89003457730
...
41
BOLT 5x28 ECH-90016205028
