Echo SRM-2601 Brushcutter

Model: SRM-2601

Back To Assemblies

Save Part Not Listed?
product name

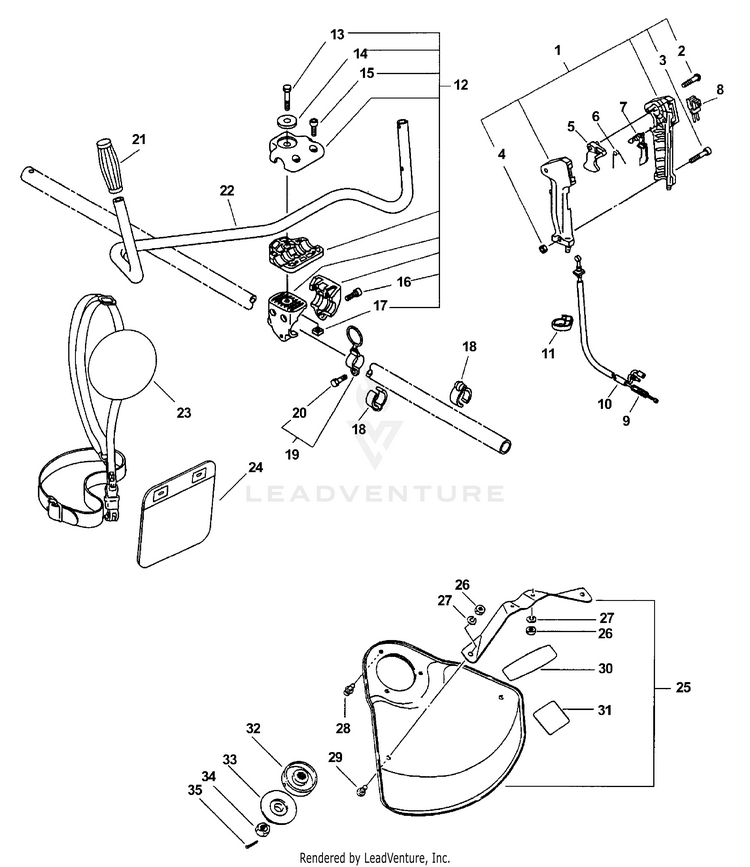

U-Handle Kit, Shield

...
...
xx
U-HANDLE/BLADE COMBO KIT (SRM-2601 OPTIONAL) ECH-99944200521
...
1
CONTROL HANDLE KIT INCLUDES ITEMS 2 - 4 ECH-35110247530
...
2
SCREW 3x25 ECH-90024603025
...
3
SCREW 5x30 ECH-90022005030
...
4
NUT M5 ECH-90050000005
...
5
TRIGGER, THROTTLE ECH-17801005960
...
6
SPRING, TORSION ECH-17801335631
...
7
LOCKOUT, THROTTLE ECH-17801205960
...
8
SWITCH, ON-OFF ECH-A440000310
...
9
CABLE, THROTTLE ECH-17800159230
...
10
TUBE, FLEXIBLE 7x790 ECH-V475000000
...
11
CLIP, CABLE ECH-15911209961
...
12
BRACKET KIT, HANDLEBAR INCLUDES ITEMS 13 - 17 ECH-P021012791
...
13
BOLT 8x55 ECH-35142152130
...
14
WASHER 8 ECH-60501454230
...
15
BOLT 5x20 ECH-90016205020
...
16
BOLT 5x30 ECH-90016205030
...
17
NUT 8x1.25 ECH-90056550008
...
18
CLIP, CABLE 25 MM ECH-22492452130
...
19
HANGER SET, HARNESS Includes ITEM 20 ECH-C646000060
...
20
BOLT 5x12 ECH-90010005012
...
21
GRIP, HANDLE ECH-35131102330
...
22
HANDLEBAR ECH-C400000000
...
23
HARNESS, SHOULDER ECH-C062000690
...
24
PAD, HIP ECH-C652000000
...
25
SHIELD ASSY, METAL DEBRIS INCLUDES ITEMS 26 - 29 ECH-69900023432
...
26
NUT M5 ECH-90050000005
...
27
WASHER, SPRING 5 ECH-90060500005
...
28
SCREW 5x8 ECH-90022005008
...
29
SCREW 5x10 ECH-90024205010
...
30
LABEL - ECHO ECH-X502000320
...
31
LABEL - DANGER ECH-89016841031
...
32
PLATE, ADAPTOR - UPPER ECH-C535000160
...
33
PLATE, ADAPTOR - LOWER ECH-C535000150
...
34
NUT 10 ECH-90051100010
...
35
PIN, COTTER 2x22 BULK OPTION: 89850201130 - 10 PACK ECH-90030020022
