Echo SRM-2601 Brushcutter

Model: SRM-2601

Back To Assemblies

Save Part Not Listed?
product name

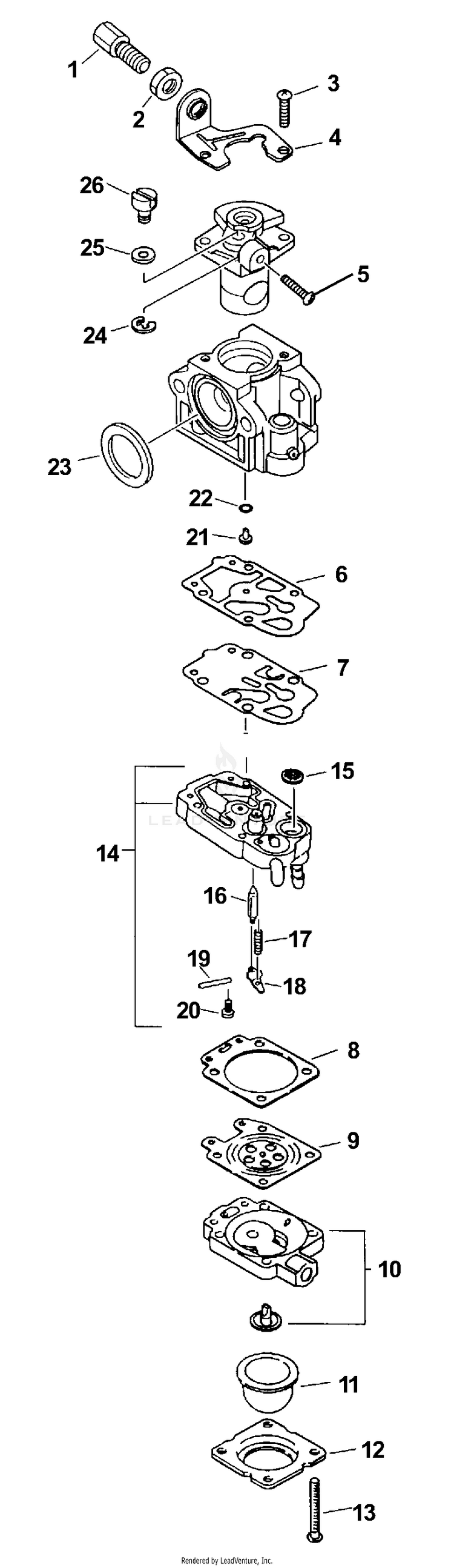

Carburetor

...
...
xx
CARBURETOR, WYJ-192B INCLUDES THE FOLLOWING ITEMS ECH-12300057732
...
1
ADJUSTER, THROTTLE CABLE ECH-12316156431
...
2
NUT, ADJUSTER LOCK M7 ECH-12315356430
...
3
SCREW ECH-P003006820
...
4
BRACKET, THROTTLE CABLE ECH-12312854230
...
5
SCREW ECH-12313440030
...
6
GASKET, PUMP USE REPAIR KIT P/N 12310057730 & DIAPHRAGM/GASKET KIT P/N 12310157730 ECH---
...
7
DIAPHRAGM, PUMP USE REPAIR KIT P/N 12310057730 & DIAPHRAGM/GASKET KIT P/N 12310157730 ECH---
...
8
GASKET, METERING USE REPAIR KIT P/N 12310057730 & DIAPHRAGM/GASKET KIT P/N 12310157730 ECH---
...
9
DIAPHRAGM, METERING USE REPAIR KIT P/N 12310057730 & DIAPHRAGM/GASKET KIT P/N 12310157730 ECH---
...
10
BODY, AIR PURGE ECH-P003007100
...
11
PURGE BULB ECH-P003006770
...
12
COVER, PRIMER PUMP ECH-P003006760
...
13
SCREW, PUMP COVER ECH-P003006830
...
14
BODY ASSY, PUMP Includes ITEMS 15-20 ECH-12317905560
...
15
STRAINER USE REPAIR KIT P/N 12310057730 ECH---
...
16
VALVE, INLET NEEDLE USE REPAIR KIT P/N 12310057730 ECH---
...
17
SPRING, METERING LEVER ECH-P003006730
...
18
LEVER, METERING USE REPAIR KIT P/N 12310057730 ECH---
...
19
PIN ECH-P003006740
...
20
SCREW ECH-12313905560
...
21
JET, MAIN ECH-12318457730
...
22
O-RING ECH-12318305960
...
23
SEAL USE REPAIR KIT P/N 12310057730 & DIAPHRAGM/GASKET KIT P/N 12310157730 ECH---
...
24
CLIP, SWIVEL ECH-P003006790
...
25
WASHER ECH-12314954230
...
26
SWIVEL ECH-P003006810
...
26
REPAIR KIT ECH-12310057730
...
26
DIAPHRAGM KIT ECH-12310157730
