Echo SRM-2601 Brushcutter

Model: SRM-2601

Back To Assemblies

Save Part Not Listed?
product name

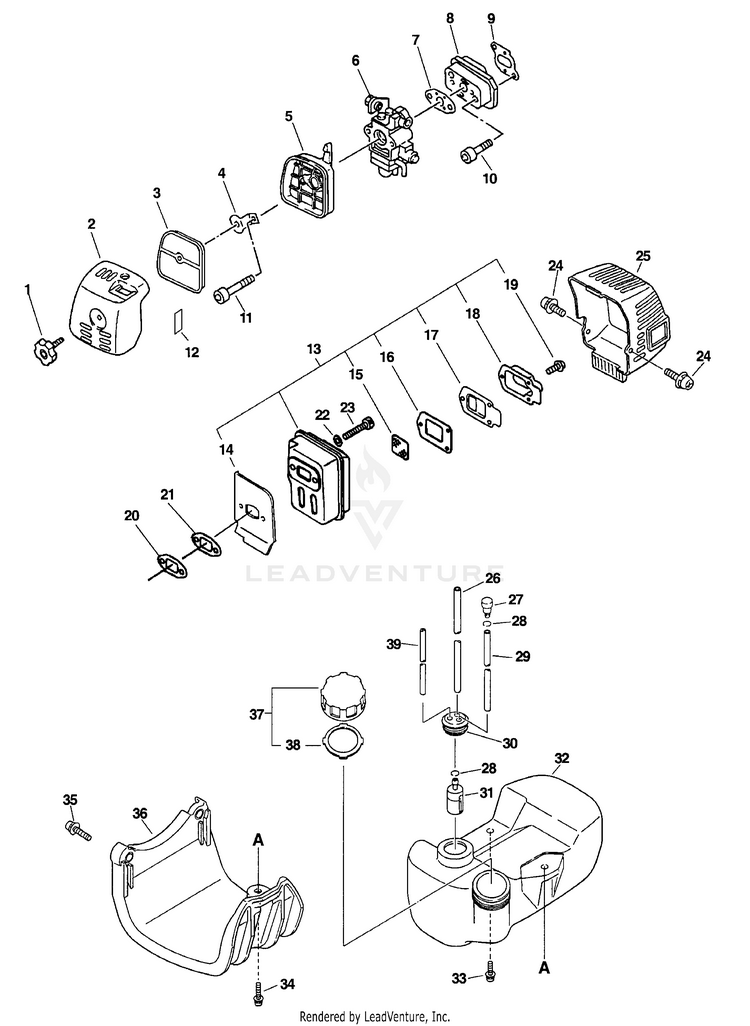

Intake, Exhaust, Fuel System, Stand

...
...
1
THUMBSCREW ECH-13040652131
...
2
COVER, AIR FILTER ECH-13031357732
...
3
FILTER, AIR - HEAVY DUTY USE REPOWER FILTRATION KIT P/N 90030 ECH-13031051830
...
4
PLATE, PREVENT ECH-12901157731
...
5
CASE, AIR FILTER ECH-13030757730
...
6
CARBURETOR, WYJ-192B ECH-12300057732
...
7
GASKET, CARBURETOR USE GASKET KIT P/N 88900057730 ECH-13001013410
...
8
INSULATOR, INTAKE ECH-13001756431
...
9
GASKET, INTAKE USE GASKET KIT P/N 88900057730 ECH-13001055930
...
10
BOLT 5x25 ECH-90016205025
...
11
SCREW 5x55 ECH-90024205055
...
12
LABEL - CHOKE ECH-89012152730
...
13
MUFFLER ASSY Includes ITEMS 14-19 ECH-14580057732
...
14
HEAT SHIELD, EXHAUST USE GASKET KIT P/N 88900057730 ECH-14551055932
...
15
SCREEN, SPARK ARRESTER ECH-14586240630
...
16
GASKET, EXHAUST USE GASKET KIT P/N 88900057730 ECH-14586642031
...
17
GUIDE, EXHAUST ECH-14587642030
...
18
OUTLET, EXHAUST ECH-14581852130
...
19
SCREW 4x10 ECH-90023804010
...
20
GASKET, EXHAUST (S/N 005001 - 050277). USE GASKET KIT P/N 88900057730 ECH-V104000160
...
21
SPACER (S/N 005001 - 050277) ECH-14564257730
...
22
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
23
BOLT 5x55 ECH-90010505055
...
24
BOLT 5x12 ECH-90016205012
...
25
COVER, MUFFLER ECH-14562157731
...
26
PIPE, FUEL RePower BULK OPTION: 90015 ECH-13201052031
...
27
VENT ASSY USE VENT/CAP KIT, REPOWER KIT P/N 90010 ECH-A356000031
...
28
CLIP 6.5 MM ECH-V490001230
...
29
PIPE, FUEL 3x6x100 RePower BULK OPTION: 90015 ECH-43721720761
...
30
GROMMET, FUEL ECH-13211555931
...
31
FILTER, FUEL USE VENT/CAP KIT, REPOWER KIT P/N 90030 ECH-A369000460
...
32
TANK, FUEL ECH-13100556532
...
33
SCREW 5x16 ECH-90023905016
...
34
SCREW 5x20 ECH-90024405020
...
35
BOLT 5x22 ECH-90016205022
...
36
GUARD, FUEL TANK ECH-30511057733
...
37
FUEL CAP ASSY Includes ITEM 38 ECH-P200000830
...
38
GASKET, FUEL CAP ECH-V107000230
...
39
PIPE, FUEL 3x6x60 CLEAR RePower BULK OPTION: 90017 ECH-43721520760
...
xx
GASKET KIT ECH-88900057730
...
xx
CAP/VENT KIT - REPOWER ECH-90248
...
xx
TUNE-UP KIT ECH-90153Y
