Echo SRM-2450 Type 1 Brushcutter

Model: SRM-2450 Type 1

Back To Assemblies

Save Part Not Listed?
product name

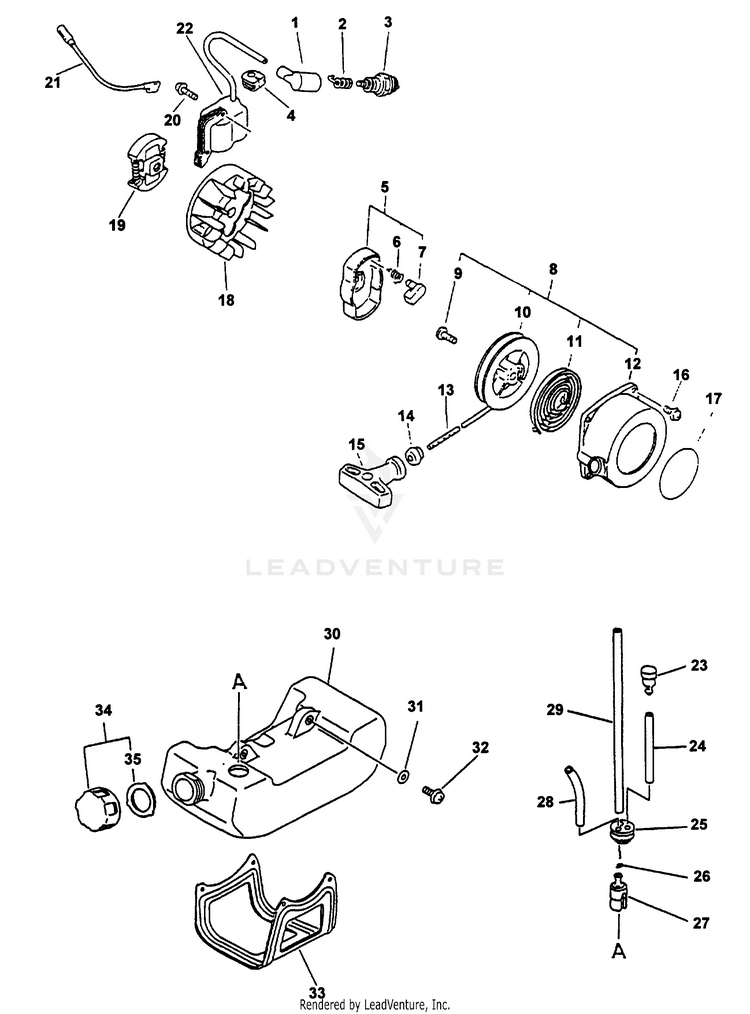

Clutch, Fuel System, Ignition, Starter

...
...
1
CAP, SPARK PLUG ECH-15901201620
...
2
TERMINAL, SPARK PLUG ECH-15901103432
...
3
SPARK PLUG - BPM7Y ECH-99944500071R
...
4
GROMMET ECH-15611240630
...
5
PAWL ASSY, STARTER Includes ITEMS 6 & 7 ECH-17720212220
...
6
SPRING, RETURN ECH-17723412220
...
7
PAWL, STARTER - BLACK ECH-17721844330
...
8
STARTER ASSY, RECOIL INCLUDES ITEMS 9 - 15 ECH-17720042033
...
9
SCREW ECH-17723644330
...
10
REEL, ROPE ECH-17721544430
...
11
SPRING, RECOIL ECH-P022019680
...
12
CASE, RECOIL STARTER ECH-17723242032
...
------------------
ROPE, STARTER 3.0×890 RePower BULK OPTION: 99944440000 ECH---
...
14
GUIDE, ROPE ECH-17722742030
...
15
GRIP, STARTER ECH-17722806530
...
16
BOLT 4x16 ECH-V202000830
...
17
LABEL - STARTER - ECHO ECH-X502000330
...
18
FLYWHEEL ECH-15680144731
...
19
CLUTCH ASSY ECH-17500056831
...
20
SCREW 4x22 ECH-90016204022
...
21
LEAD - IGNITION ECH-V485001080
...
22
COIL, IGNITION ECH-15660152131
...
23
VENT ASSY INCLUDED IN REPOWER VENT/CAP KIT P/N 90010 ECH-A356000031
...
24
PIPE, FUEL RePower BULK OPTION: 90014 ECH-V471-001200
...
25
GROMMET, FUEL 5 ECH-13211546730
...
26
CLIP 6 MM ECH-13201309820
...
27
FILTER, FUEL INCLUDED IN REPOWER FILTRATION KIT P/N 90030 ECH-A369000480
...
28
PIPE, RETURN, FUEL, 3X6X90 RePower BULK OPTION: 90017 ECH-V471006160
...
29
PIPE, FUEL RePower BULK OPTION: 90014 ECH-V471-001190
...
30
TANK, FUEL ECH-13100546831
...
31
WASHER 5.5x12x0.8 ECH-90060300005
...
32
SCREW 5x16 ECH-90023805016
...
33
GUARD, FUEL TANK ECH-30511042030
...
34
FUEL CAP ASSY INCLUDES ITEM 35; (INCLUDED IN REPOWER VENT/CAP KIT P/N 90010) ECH-P200000830
...
35
GASKET, FUEL CAP ECH-V107000230
...
xx
BULK STARTER ROPE - 3.0 MMx61 M ECH-99944440000
...
xx
CAP/VENT KIT - REPOWER ECH-90248
...
xx
TUNE-UP KIT ECH-90153Y
