Echo SRM-2450 Type 1 Brushcutter

Model: SRM-2450 Type 1

Back To Assemblies

Save Part Not Listed?
product name

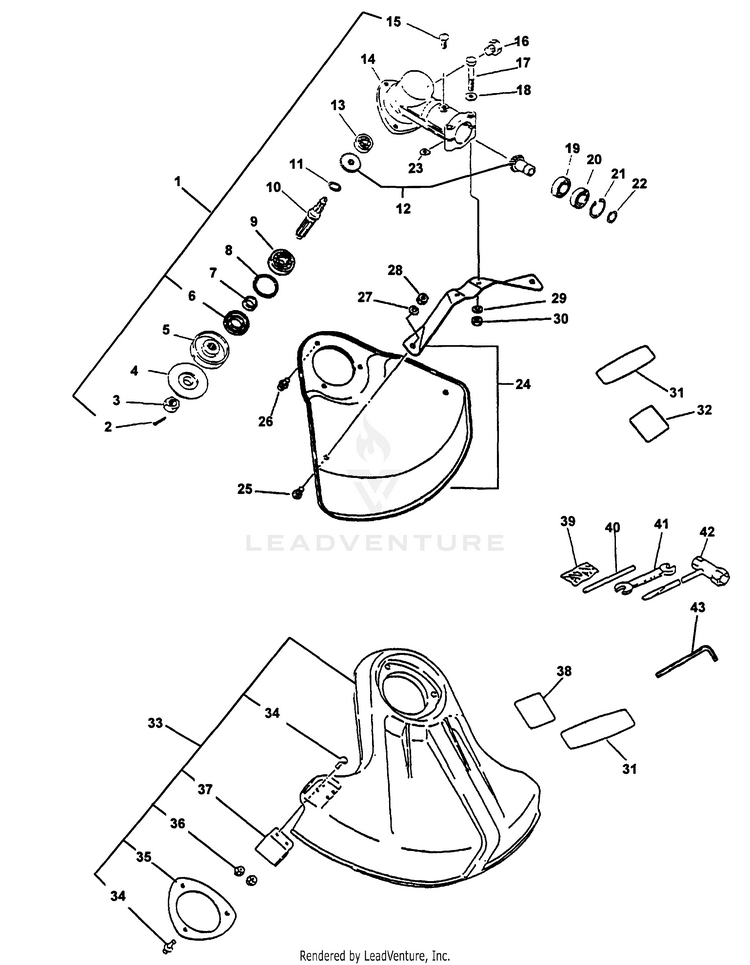

Gear Case, Shields, Tools

...
...
1
GEAR CASE ASSY INCLUDES ITEMS 2 - 23 ECH-61040041933
...
2
PIN, COTTER 2x22 BULK OPTION: 89850201130 - 10 PACK ECH-90030020022
...
3
NUT 10 ECH-90051100010
...
4
PLATE, ADAPTOR - LOWER ECH-C535000150
...
5
PLATE, ADAPTOR - UPPER ECH-C535000160
...
6
SEAL, OIL 22 ECH-61041307130
...
7
SPACER 11.8x15x9 ECH-61031507130
...
8
RING, SNAP 32 ECH-90070200032
...
9
BEARING, BALL 6201 ECH-9403536201
...
10
SHAFT, GEAR ECH-C534000270
...
11
RING, SNAP 10 ECH-90070600010
...
12
GEAR SET ECH-61030040930
...
13
BEARING, BALL 609 ECH-90080000609
...
14
GEAR CASE ASSY ECH-P021053000
...
15
SCREW 5x10 ECH-90024205010
...
16
BOLT 8x8 SP ECH-90010008008
...
17
BOLT 5x35 SP ECH-90010005035
...
18
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
19
BEARING, BALL 6900 ECH-90085506900
...
20
BEARING, BALL 6900Z ECH-90085806900
...
21
RING, SNAP 22 ECH-90070200022
...
22
RING, SNAP 12 ECH-90070600012
...
23
D-WASHER ECH-61023904130
...
24
SHIELD ASSY, METAL DEBRIS INCLUDES ITEMS 25 - 28 ECH-69900023432
...
25
SCREW 5x8 ECH-90022005008
...
26
SCREW 5x10 ECH-90024205010
...
27
WASHER, SPRING 5 ECH-90060500005
...
28
NUT M5 ECH-90050000005
...
29
WASHER, SPRING 5 ECH-90060500005
...
30
NUT M5 ECH-90050000005
...
31
LABEL - ECHO ECH-X502000320
...
32
LABEL - DANGER ECH-89016841031
...
33
SHIELD ASSY, DEBRIS INCLUDES ITEMS 34 - 37 ECH-69900440931
...
34
SCREW 5x16 ECH-90024205016
...
35
PLATE, SHIELD ECH-C552000240
...
36
NUT M5 ECH-90050000005
...
37
CUTTER, LINE ECH-C554000080
...
38
LABEL - CAUTION ECH-89016844830
...
39
PIN, COTTER 2x22 (PKG. OF 10) ECH-89850201130
...
40
TOOL, LOCKING 5x120 MM ECH-89751801131
...
41
SPANNER 8x10 ECH-89511200330
...
42
T-WRENCH 17x19 L200 ECH-X602000020
...
43
WRENCH, ALLEN 3 MM ECH-X605000090
