Echo SRM-2410 Type 1E Brushcutter

Model: SRM-2410 Type 1E

Back To Assemblies

Save Part Not Listed?
product name

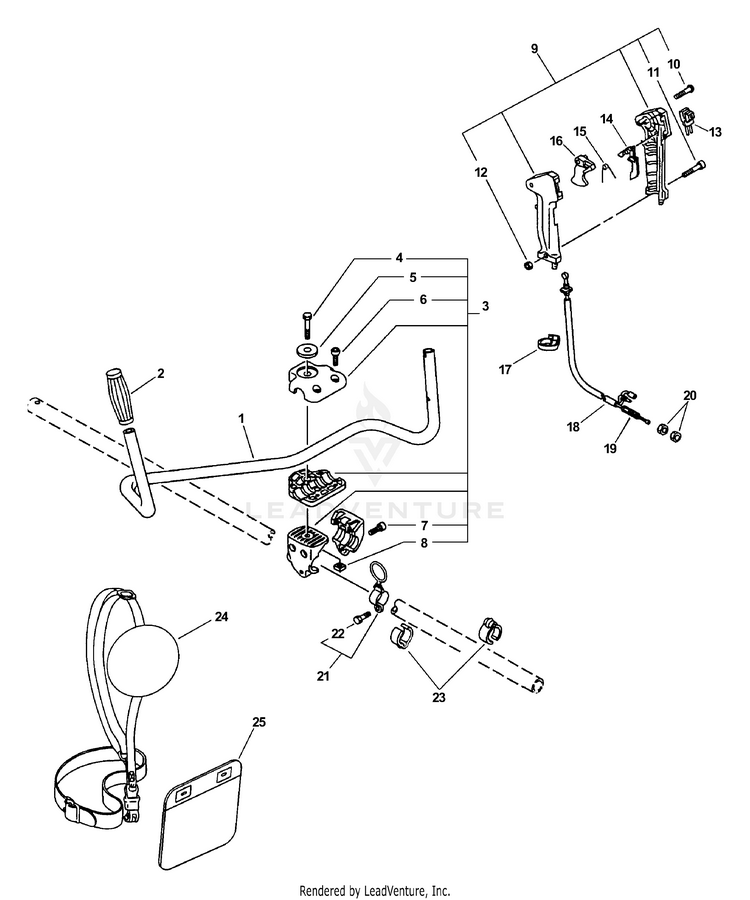

Driveshaft, Handles, Throttle, Stop Switch, Harness S/N: 503954 - 599999

...
...
1
HANDLEBAR ECH-C400000000
...
2
GRIP, HANDLE ECH-35131102330
...
3
BRACKET KIT, HANDLEBAR INCLUDES ITEMS 4-8 ECH-P021012791
...
4
BOLT 8x55 ECH-35142152130
...
5
WASHER 8 ECH-60501454230
...
6
BOLT 5x20 ECH-90016205020
...
7
BOLT 5x30 ECH-90016205030
...
8
NUT 8x1.25 ECH-90056550008
...
9
CONTROL HANDLE KIT Includes ITEMS 10-12 ECH-35110247530
...
10
SCREW 3x25 ECH-90024603025
...
11
SCREW 5x30 ECH-90022005030
...
12
NUT M5 ECH-90050000005
...
13
SWITCH, ON-OFF ECH-A440000310
...
14
LOCKOUT, THROTTLE ECH-17801205960
...
15
SPRING, TORSION ECH-17801335631
...
16
TRIGGER, THROTTLE ECH-17801005960
...
17
CLIP, CABLE ECH-15911209961
...
18
TUBE, FLEXIBLE 7x790 ECH-V475000000
...
19
CABLE, THROTTLE S/N: 001001-503484 ECH-17800147530
...
19
CABLE, THROTTLE S/N: 503485 & UP ECH-17800156430
...
20
NUT 6 MM ECH-90050300006
...
21
HANGER SET, HARNESS Includes ITEM 22 ECH-C646000060
...
22
BOLT 5x12 ECH-90010005012
...
23
CLIP, CABLE 25 MM ECH-22492452130
...
24
HARNESS, SHOULDER ECH-C062000690
...
25
PAD, HIP ECH-C652000000
