Echo SRM-2410 Type 1E Brushcutter

Model: SRM-2410 Type 1E

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

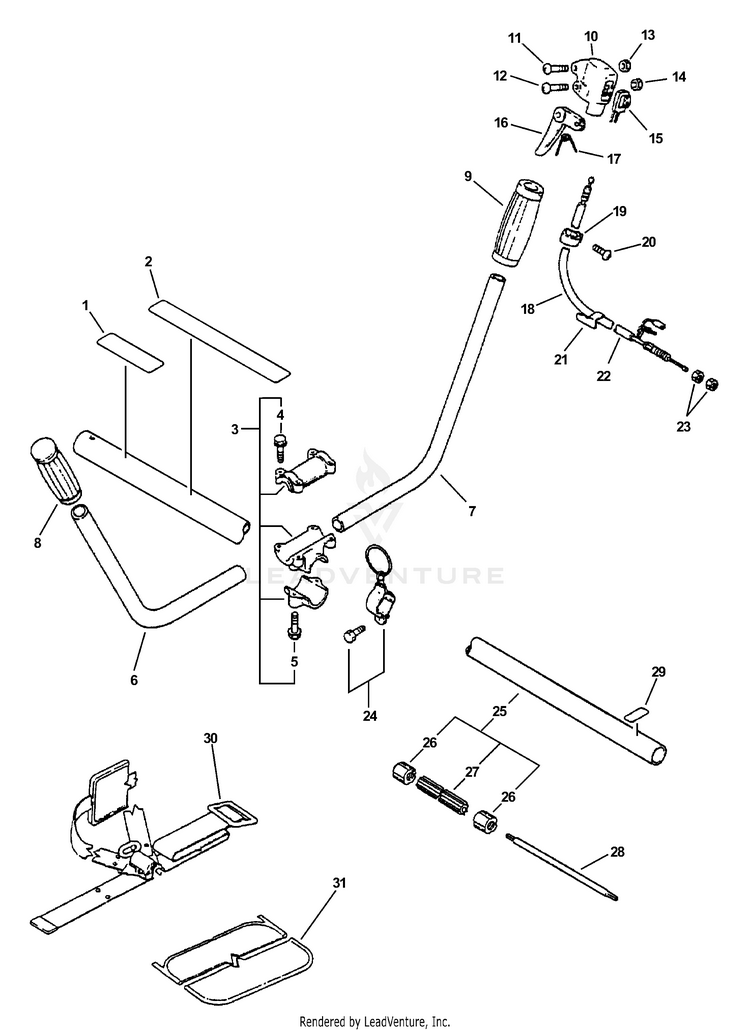

Driveshaft, Handles, Throttle, Stop Switch, Harness S/N: 001001-503953

...
...
1
LABEL - CAUTION ECH-89022809560
...
2
LABEL - CAUTION ECH-89016054130
...
3
BRACKET KIT, HANDLE INCLUDES ITEMS 4-5 ECH-P021-000460
...
4
BOLT - 5x25 ECH-90014205025
...
5
BOLT - 6x30 ECH-90014206030
...
6
HANDLE, LEFT ECH-35121005530
...
7
HANDLE ECH-35101005530
...
8
GRIP, HANDLE ECH-35131102330
...
9
GRIP ECH-35131522130
...
10
BODY, THROTTLE CONTROL ECH-17802451830
...
11
SCREW 5x25 ECH-90022005025
...
12
SCREW ECH-17811005330
...
13
NUT, LOCK M5 ECH-90056000005
...
14
NUT M5 ECH-90050000005
...
15
SWITCH, ON-OFF ECH-A440000340
...
16
TRIGGER, THROTTLE ECH-17801006460
...
17
SPRING ECH-17804305230
...
18
CABLE, THROTTLE ECH-17800141330
...
19
CLAMP ECH-17810605330
...
20
SCREW 5x10 ECH-90022005010
...
21
BRACKET ECH-17811104930
...
22
PIPE ECH-V475002270
...
23
NUT 6 MM ECH-90050300006
...
24
HANGER SET, HARNESS ECH-C646000060
...
25
MAIN PIPE ASSY 25x1500 INCLUDES ITEMS 26-27 ECH-61060944730
...
26
STOPPER ECH-61024644730
...
27
LINER, FLEXIBLE ECH-C507000430
...
28
DRIVESHAFT - FLEXIBLE ECH-C506000390
...
29
LABEL - ALIGNMENT ECH-89015204930
...
30
HARNESS, SHOULDER ECH-C062000690
...
31
PAD, HIP ECH-C652000000
