Echo SRM-2410 Type 1E Brushcutter

Model: SRM-2410 Type 1E

Back To Assemblies

Save Part Not Listed?
product name

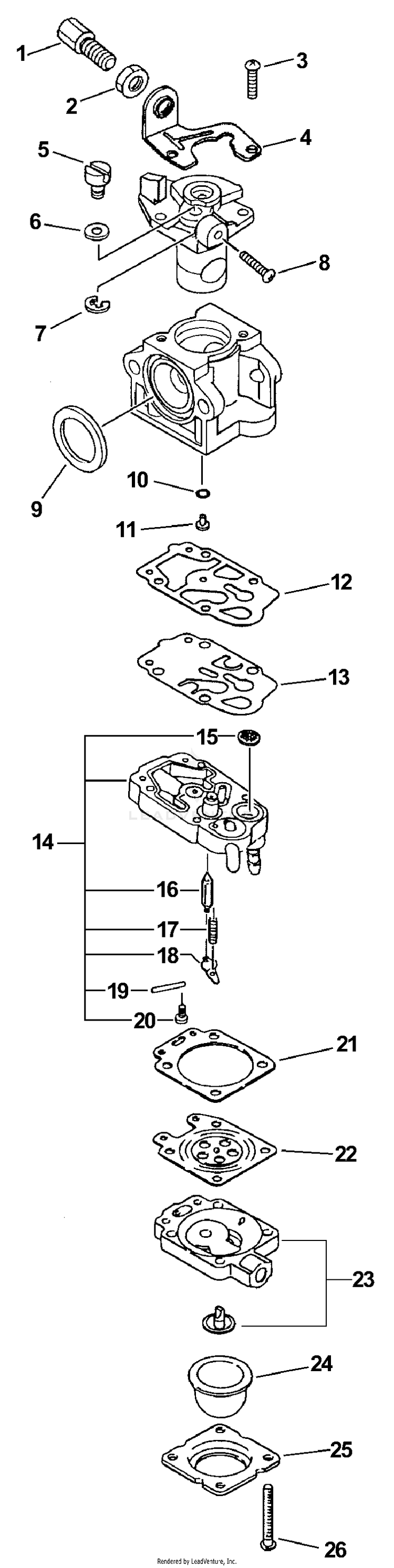

Carburetor S/N: SRM-2400 -- 563000_Up, SRM-2410 -- 501558_Up

...
...
xx
CARBURETOR Includes ITEMS 1-26 ECH-12300051731
...
1
ADJUSTER, THROTTLE CABLE ECH-12316156431
...
2
NUT, ADJUSTER LOCK M7 ECH-12315356430
...
3
SCREW ECH-P003006820
...
4
BRACKET, THROTTLE CABLE ECH-12312854230
...
5
SWIVEL ECH-P003006810
...
6
WASHER ECH-12314954230
...
7
CLIP, SWIVEL ECH-P003006790
...
8
SCREW ECH-12313440030
...
9
SEAL INCLUDED IN REPAIR KIT P/N 12310057730 & DIAPHRAGM/GASKET KIT P/N 12310157730 ECH---
...
10
NEEDLE, MIXTURE ECH-12312052131
...
11
JET, MAIN ECH-12318457730
...
------------------
GASKET, PUMP INCLUDED IN REPAIR KIT P/N 12310057730 & DIAPHRAGM/GASKET KIT P/N 12310157730 ECH---
...
------------------
DIAPHRAGM, PUMP INCLUDED IN REPAIR KIT P/N 12310057730 & DIAPHRAGM/GASKET KIT P/N 12310157730 ECH---
...
14
BODY ASSY, PUMP Includes ITEMS 15-20 ECH-12317905560
...
15
STRAINER INCLUDED IN REPAIR KIT P/N 12310057730 ECH---
...
16
VALVE, INLET NEEDLE INCLUDED IN REPAIR KIT P/N 12310057730 ECH---
...
17
SPRING, METERING LEVER ECH-P003006730
...
18
LEVER, METERING INCLUDED IN REPAIR KIT P/N 12310057730 ECH---
...
19
PIN ECH-P003006740
...
20
SCREW ECH-12313905560
...
21
GASKET, METERING INCLUDED IN REPAIR KIT P/N 12310057730 & DIAPHRAGM/GASKET KIT P/N 12310157730 ECH---
...
22
DIAPHRAGM, METERING INCLUDED IN REPAIR KIT P/N 12310057730 & DIAPHRAGM/GASKET KIT P/N 12310157730 ECH---
...
23
BODY, AIR PURGE ECH-P003007100
...
24
PURGE BULB ECH-P003006770
...
25
COVER, PRIMER PUMP ECH-P003006760
...
26
SCREW, PUMP COVER ECH-P003006830
...
xx
REPAIR KIT ECH-12310057730
...
xx
DIAPHRAGM KIT ECH-12310157730
