Echo SRM-2410 Type 1 Brushcutter

Model: SRM-2410 Type 1

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

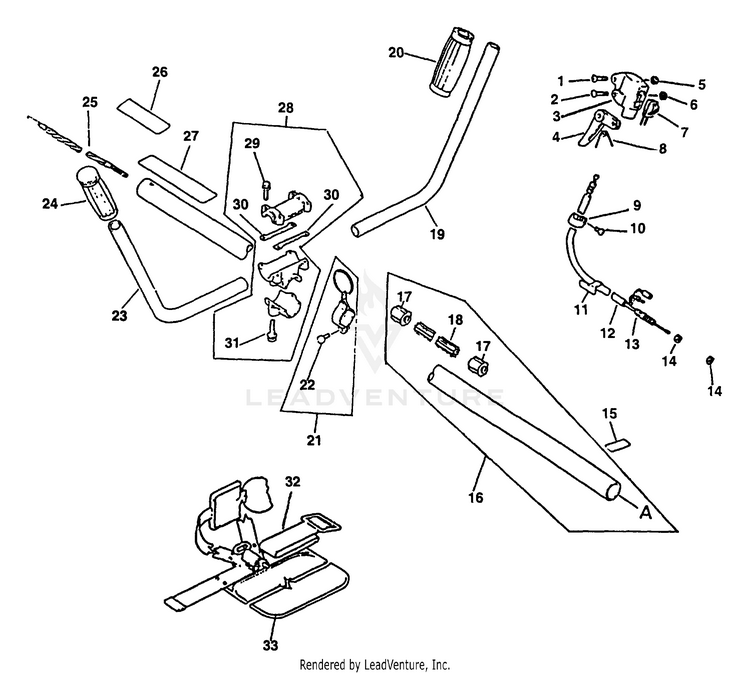

Driveshaft, Handles, Throttle, Stop Switch, Harness

...
...
1
SCREW ECH-17811005330
...
2
SCREW 5x25 ECH-90022005025
...
3
BODY, THROTTLE CONTROL ECH-17802451830
...
4
TRIGGER, THROTTLE ECH-17801006460
...
5
NUT, LOCK M5 ECH-90056000005
...
6
NUT M5 ECH-90050000005
...
7
SWITCH, ON-OFF ECH-A440000340
...
8
SPRING ECH-17804305230
...
9
CLAMP ECH-17810605330
...
10
SCREW 5x10 ECH-90022005010
...
11
BRACKET ECH-17811104930
...
12
PIPE ECH-V475002270
...
13
CABLE, THROTTLE ECH-17800141330
...
14
NUT ECH-17802105530
...
15
LABEL - ALIGNMENT ECH-89015204930
...
16
MAIN PIPE ASSY 25x1500 Includes ITEMS 17-18 ECH-61060944730
...
17
STOPPER ECH-61024644730
...
18
LINER, FLEXIBLE ECH-C507000430
...
19
HANDLE ECH-35101005530
...
20
GRIP ECH-35131522130
...
21
HANGER SET, HARNESS Includes ITEM 22 ECH-C646000060
...
22
BOLT 5x12 ECH-90010005012
...
23
HANDLE, LEFT ECH-35121023430
...
24
GRIP, HANDLE ECH-35131102330
...
25
DRIVESHAFT - FLEXIBLE ECH-C506000390
...
26
LABEL - CAUTION ECH-89037144530
...
27
LABEL - CAUTION ECH-89016049730
...
28
BRACKET, HANDLE INCLUDES ITEMS 29-31 ECH-P021000460
...
29
BOLT - 5x25 ECH-90014205025
...
30
WASHER ECH-35131904130
...
31
BOLT - 6x30 ECH-90014206030
...
32
HARNESS, SHOULDER Includes ITEM 33 ECH-C062000690
...
33
PAD, HIP ECH-C652000000
