Echo SRM-2400SB Type 1 Brushcutter

Model: SRM-2400SB Type 1

Back To Assemblies

Save Part Not Listed?
product name

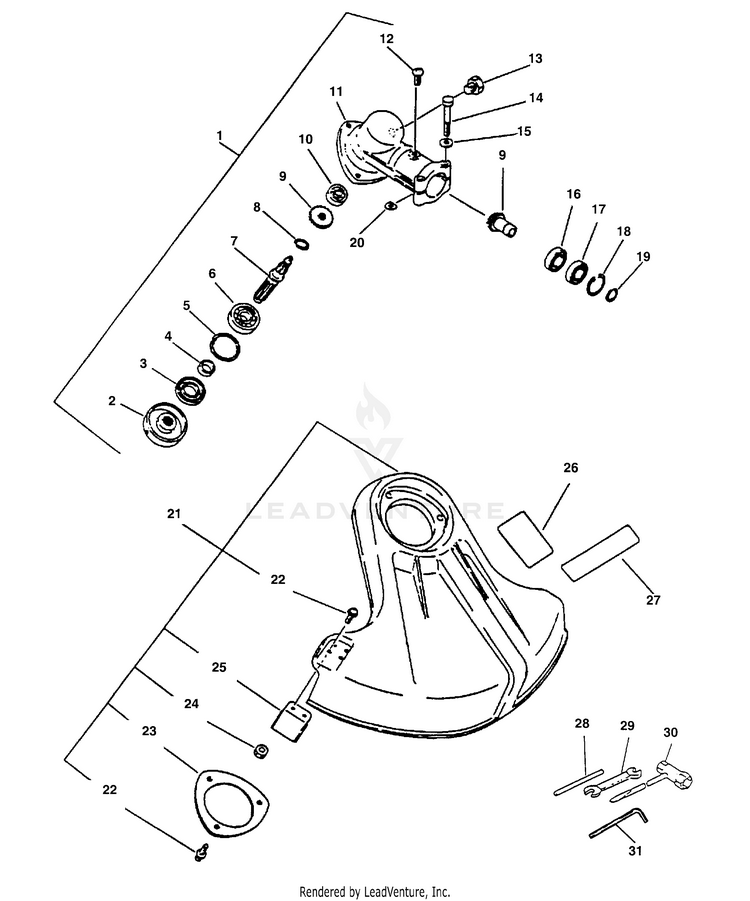

SRM Gear Housing, Shield, Tools

...
...
1
GEAR CASE ASSY INCLUDES ITEMS 2 - 20 ECH-P021053000
...
2
PLATE, ADAPTOR - UPPER ECH-61031347731
...
3
SEAL, OIL 22 ECH-61041307130
...
4
SPACER 11.8x15x9 ECH-61031507130
...
5
RING, SNAP 32 ECH-90070200032
...
6
BEARING, BALL 6201 ECH-9403536201
...
7
SHAFT, GEAR ECH-C534000270
...
8
RING, SNAP 10 ECH-90070600010
...
9
GEAR SET ECH-61030044830
...
10
BEARING, BALL 609 ECH-90080000609
...
11
GEAR CASE ASSY ECH-P021053000
...
12
SCREW 5x10 ECH-90024205010
...
13
BOLT 8x8 SP ECH-90010008008
...
14
BOLT 5x35 SP ECH-90010005035
...
15
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
16
BEARING, BALL 6900 ECH-90085506900
...
17
BEARING, BALL 6900Z ECH-90085806900
...
18
RING, SNAP 22 ECH-90070200022
...
19
RING, SNAP 12 ECH-90070600012
...
20
D-WASHER ECH-61023904130
...
21
SHIELD ASSY, DEBRIS INCLUDES ITEMS 22 - 25 ECH-69900440931
...
22
SCREW 5x16 ECH-90024205016
...
23
PLATE, SHIELD ECH-C552000240
...
24
NUT M5 ECH-90050000005
...
25
CUTTER, LINE ECH-C554000080
...
26
LABEL - CAUTION ECH-89016844830
...
27
LABEL - ECHO ECH-X502000320
...
28
TOOL, LOCKING 5x120 MM ECH-89751801131
...
29
SPANNER 8x10 ECH-89511200330
...
30
T-WRENCH 17x19 L200 ECH-X602000020
...
31
WRENCH, ALLEN 3 MM ECH-X605000090
