Echo SRM-2400SB Type 1 Brushcutter

Model: SRM-2400SB Type 1

Back To Assemblies

Save Part Not Listed?
product name

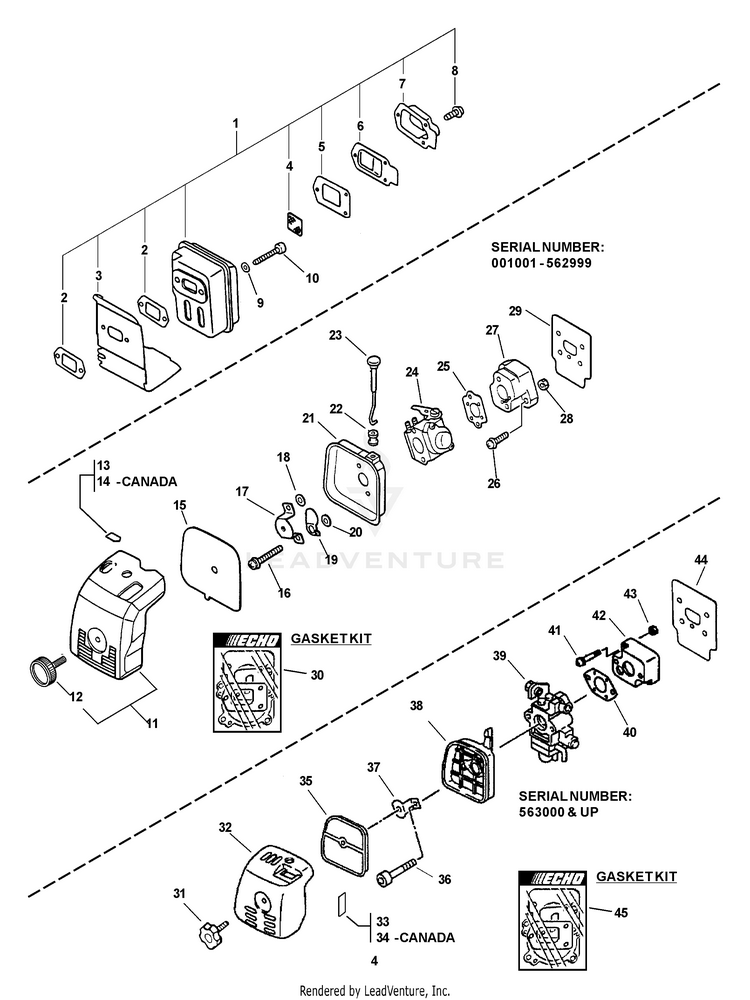

Intake, Exhaust, Air Filter

...
...
1
MUFFLER ASSY INCLUDES ITEMS 2-8 ECH-14580052633
...
2
GASKET, EXHAUST Included In GASKET KIT ECH-V104000160
...
3
HEAT SHIELD, EXHAUST ECH-A320000251
...
4
SCREEN, SPARK ARRESTER ECH-14586240630
...
5
GASKET, EXHAUST Included In GASKET KIT ECH-14586642031
...
6
GUIDE, EXHAUST ECH-14587642030
...
7
OUTLET, EXHAUST ECH-14581852130
...
8
SCREW 4x10 ECH-90023804010
...
9
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
10
BOLT 5x55 ECH-90010505055
...
11
AIR CLEANER COVER ASSY Includes ITEMS 12 S/N: 001001 - 562999 ECH-13030252132
...
12
THUMBSCREW S/N: 001001 - 562999 ECH-13040652131
...
13
LABEL - CHOKE S/N: 001001 - 562999 ECH-89012152130
...
14
LABEL - CHOKE -- CANADA MODELS; S/N: 001001 - 562999 ECH-89033252730
...
15
FILTER, AIR - HEAVY DUTY S/N: 001001 - 562999 ECH-13031051830
...
16
SCREW 5x57 S/N: 001001 - 562999 ECH-90024205057
...
17
PLATE, PREVENT S/N: 001001 - 562999 ECH-12901152131
...
18
WASHER, FLAT 5.5x10x0.8 S/N: 001001 - 562999 ECH-90060000005
...
19
SHUTTER, CHOKE S/N: 001001 - 562999 ECH-17851505060
...
20
WASHER 5.2x8x0.8T S/N: 001001 - 562999 ECH-17851600830
...
21
CASE, AIR FILTER S/N: 001001 - 562999 ECH-13031451730
...
22
GROMMET, CHOKE S/N: 001001 - 562999 ECH-17881005230
...
23
ROD, CHOKE S/N: 001001 - 562999 ECH-17851051730
...
24
CARBURETOR - WT-424C S/N: 001001 - 562999 ECH-12300052133
...
25
GASKET, CARBURETOR S/N: 001001 - 562999; Also Included In GASKET KIT ECH-13001005960
...
26
SCREW 5x20 S/N: 001001 - 562999 ECH-90023805020
...
27
INSULATOR, INTAKE S/N: 001001 - 562999 ECH-13001742031
...
28
NUT M5 S/N: 001001 - 562999 ECH-90050000005
...
29
HEAT SHIELD, INTAKE S/N: 001001 - 562999; Also Included In GASKET KIT ECH-V103001360
...
30
GASKET KIT S/N: 001001 - 562999 ECH-88900005960
...
31
THUMBSCREW S/N: 563000 & UP ECH-13040652131
...
32
COVER, AIR FILTER S/N: 563000 & UP ECH-13031357732
...
33
LABEL - CHOKE S/N: 563000 & UP ECH-89012152730
...
34
LABEL - CHOKE -- CANADA MODELS; S/N: 563000 & UP ECH-89033252730
...
35
FILTER, AIR - HEAVY DUTY S/N: 563000 & UP ECH-13031051830
...
36
SCREW 5x65 S/N: 563000 & UP ECH-90024205065
...
37
PLATE, PREVENT S/N: 563000 & UP ECH-12901157731
...
38
CASE, AIR FILTER S/N: 563000 & UP ECH-13030757730
...
39
CARBURETOR S/N: 563000 & UP ECH-12300051731
...
40
GASKET, INTAKE S/N: 563000 & UP: Also Included In GASKET KIT ECH-13001044431
...
41
SCREW 5x20 S/N: 563000 & UP ECH-90023805020
...
42
INSULATOR KIT S/N: 563000 & UP ECH-P021015350
...
43
NUT M5 S/N: 563000 & UP ECH-90050000005
...
44
HEAT SHIELD, INTAKE S/N: 563000 & UP; Also Included In GASKET KIT ECH-V103001360
...
45
GASKET KIT S/N: 563000 & UP ECH-88900004861
