Echo SRM-2400 Type 1E Brushcutter

Model: SRM-2400 Type 1E

Back To Assemblies

Save Part Not Listed?
product name

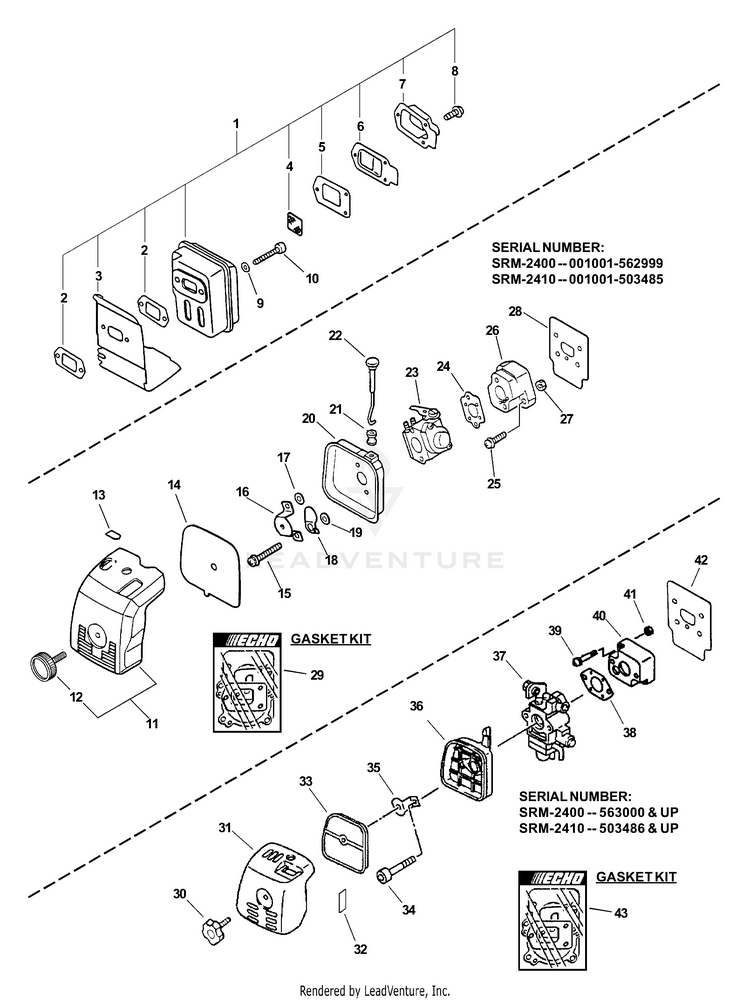

Intake, Exhaust

...
...
1
MUFFLER ASSY INCLUDES ITEMS 2-8 ECH-14580052633
...
2
GASKET, EXHAUST Included In GASKET KIT ECH-V104000160
...
3
COVER, MUFFLER ECH-A320-000251
...
4
SCREEN, SPARK ARRESTER ECH-14586240630
...
5
GASKET, EXHAUST Included In GASKET KIT ECH-14586642031
...
6
GUIDE, EXHAUST ECH-14587642030
...
7
OUTLET, EXHAUST ECH-14581852130
...
8
SCREW 4x10 ECH-90023804010
...
9
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
10
BOLT 5x55 ECH-90010505055
...
11
AIR CLEANER COVER ASSY INCLUDES ITEMS 12; S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485 ECH-13030252132
...
12
THUMBSCREW S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485 ECH-13040652131
...
13
LABEL - CHOKE S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485 ECH-89012152130
...
14
FILTER, AIR - HEAVY DUTY S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485 ECH-13031051830
...
15
SCREW 5x57 S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485 ECH-90024205057
...
16
PLATE, PREVENT S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485 ECH-12901152131
...
17
WASHER, FLAT 5.5x10x0.8 S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485 ECH-90060000005
...
18
SHUTTER, CHOKE S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485 ECH-17851505060
...
19
WASHER 5.2x8x0.8T S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485 ECH-17851600830
...
20
CASE, AIR FILTER S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485 ECH-13031451730
...
21
GROMMET, CHOKE S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485 ECH-17881005230
...
22
ROD, CHOKE S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485 ECH-17851051730
...
23
CARBURETOR - WT-424C S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485 ECH-12300052133
...
24
GASKET, CARBURETOR S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485; Also Included In GASKET KIT ECH-13001005960
...
25
SCREW 5x20 S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485 ECH-90023805020
...
26
INSULATOR, INTAKE S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485 ECH-13001742031
...
27
NUT M5 S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485 ECH-90050000005
...
28
HEAT SHIELD, INTAKE S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485; Also Included In GASKET KIT ECH-V103001360
...
29
GASKET KIT S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485 ECH-88900005960
...
30
THUMBSCREW S/N: SRM-2400 -- 563000 & UP, SRM-2410 -- 503486 & UP ECH-13040652131
...
31
COVER, AIR FILTER S/N: SRM-2400 -- 563000 & UP, SRM-2410 -- 503486 & UP ECH-13031357732
...
32
LABEL - CHOKE S/N: SRM-2400 -- 563000 & UP, SRM-2410 -- 503486 & UP ECH-89012152730
...
32
LABEL - CHOKE S/N: SRM-2400 -- 563000 & UP, SRM-2410 -- 503486 & UP ECH-89033252730
...
33
FILTER, AIR - HEAVY DUTY S/N: SRM-2400 -- 563000 & UP, SRM-2410 -- 503486 & UP ECH-13031051830
...
34
SCREW 5x65 S/N: SRM-2400 -- 563000 & UP, SRM-2410 -- 503486 & UP ECH-90024205065
...
35
PLATE, PREVENT S/N: SRM-2400 -- 563000 & UP, SRM-2410 -- 503486 & UP ECH-12901157731
...
36
CASE, AIR FILTER S/N: SRM-2400 -- 563000 & UP, SRM-2410 -- 503486 & UP ECH-13030757730
...
37
CARBURETOR S/N: SRM-2400 -- 563000 & UP, SRM-2410 -- 503486 & UP ECH-12300051731
...
38
GASKET, INTAKE S/N: SRM-2400 -- 563000 & UP, SRM-2410 -- 503486 & UP; Also Included In GASKET KIT ECH-13001044431
...
39
SCREW 5x20 S/N: SRM-2400 -- 563000 & UP, SRM-2410 -- 503486 & UP ECH-90023805020
...
40
INSULATOR KIT S/N: SRM-2400 -- 563000 & UP, SRM-2410 -- 503486 & UP ECH-P021015350
...
41
NUT M5 S/N: SRM-2400 -- 563000 & UP, SRM-2410 -- 503486 & UP ECH-90050000005
...
42
HEAT SHIELD, INTAKE S/N: SRM-2400 -- 563000 & UP, SRM-2410 -- 503486 & UP; Also Included In GASKET KIT ECH-V103001360
...
43
GASKET KIT S/N: SRM-2400 -- 563000 & UP, SRM-2410 -- 503486 & UP ECH-88900004861
