Echo SRM-2400 Type 1E Brushcutter

Model: SRM-2400 Type 1E

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

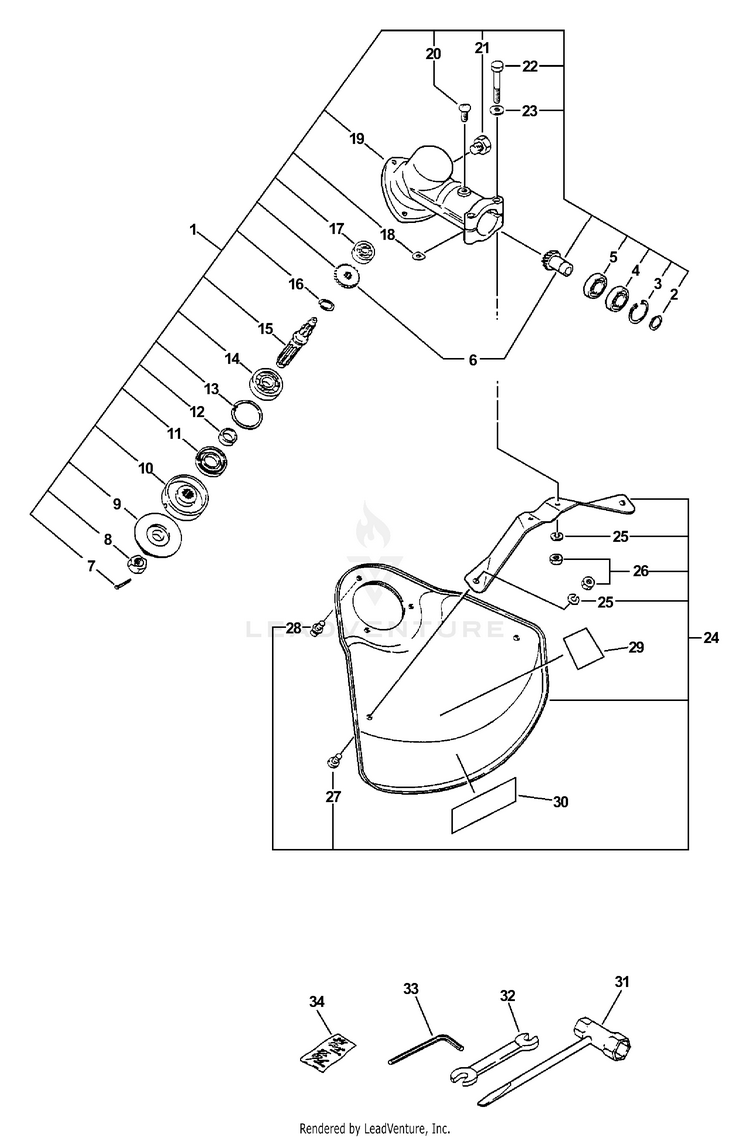

Gear Case, Shield, Tools

...
...
1
GEAR CASE ASSY INCLUDES ITEMS 2-23 ECH-P021046670
...
2
RING, SNAP 10 ECH-90070600010
...
3
RING, SNAP 22 ECH-90070200022
...
4
BEARING, BALL 6900Z ECH-90085806900
...
5
BEARING, BALL 6900 ECH-90085506900
...
6
GEAR SET ECH-61030044830
...
7
PIN, COTTER 2x22 BULK OPTION: 89850201130 - 10 PACK ECH-90030020022
...
8
NUT 10 ECH-90051100010
...
9
PLATE, ADAPTOR - LOWER ECH-C535000150
...
10
PLATE, ADAPTOR - UPPER SRM-2410 WITH BLADE ONLY ECH-C535000160
...
11
SEAL, OIL 22 ECH-61041307130
...
12
RING, SNAP 32 ECH-90070200032
...
13
SPACER 11.8x15x9 ECH-61031507130
...
14
BEARING, BALL 6201 ECH-9403536201
...
15
SHAFT, GEAR ECH-C534000270
...
16
RING, SNAP 12 ECH-90070600012
...
17
BEARING, BALL 609 ECH-90080000609
...
18
D-WASHER ECH-61023904130
...
19
GEAR CASE ASSY ECH-P021053000
...
20
SCREW 5x10 ECH-90024205010
...
21
BOLT 8x8 SP ECH-90010008008
...
22
BOLT 5x35 SP ECH-90010005035
...
23
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
24
SHIELD ASSY, METAL DEBRIS INCLUDES ITEMS 25-28 ECH-69900023432
...
25
WASHER, SPRING 5 ECH-90060500005
...
26
NUT M5 ECH-90050000005
...
27
SCREW 5x8 ECH-90022005008
...
28
SCREW 5x10 ECH-90024205010
...
29
LABEL - ECHO ECH-X502000320
...
30
LABEL - DANGER ECH-89016841031
...
31
T-WRENCH 17x19 L200 ECH-X602000020
...
32
SPANNER 8x10 ECH-89511200330
...
33
WRENCH, ALLEN 3 MM ECH-X605000090
...
34
PIN, COTTER 2x22 (PKG. OF 10) BULK OPTION: 89850201130 - 10 PACK ECH-89850201130
