Echo SRM-2400 Type 1E Brushcutter

Model: SRM-2400 Type 1E

Back To Assemblies

Save Part Not Listed?
product name

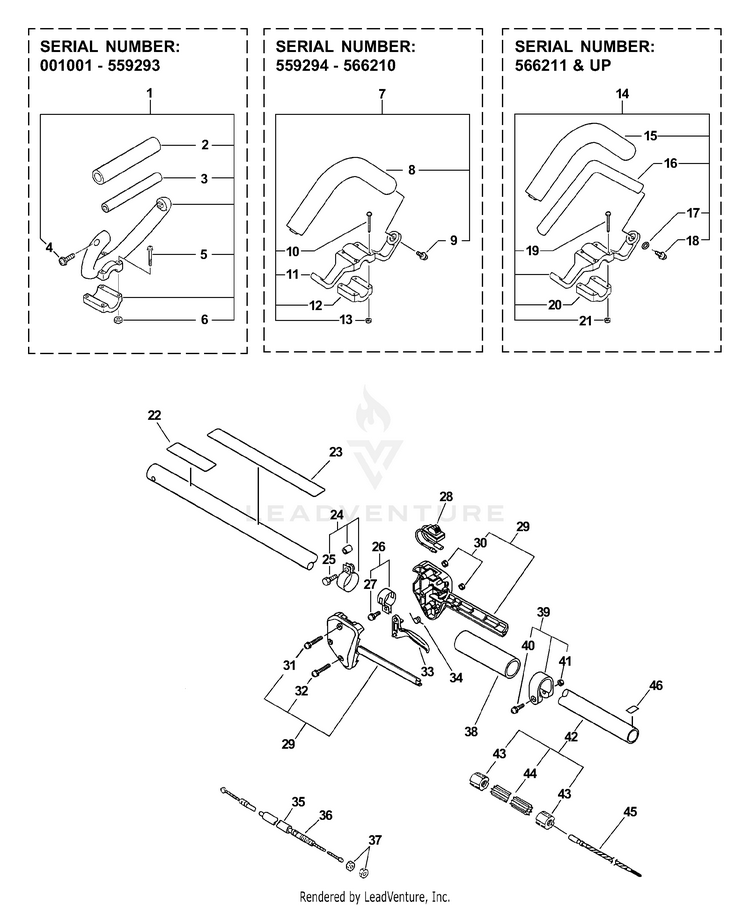

Handle, Ignition Switch, Throttle Cable, Driveshaft

...
...
1
HANDLE ASSY - LOOP INCLUDES ITEMS 2-6; S/N: 001001 - 559293 ECH-35120152130
...
2
GRIP, HANDLE S/N: 001001 - 559293 ECH-35121351730
...
3
HANDLE S/N: 001001 - 559293 ECH-35121051730
...
4
SCREW 5x30 S/N: 001001 - 559293 ECH-90024605030
...
5
SCREW 5x35 S/N: 001001 - 559293 ECH-90024205035
...
6
NUT M5 S/N: 001001 - 559293 ECH-90050000005
...
7
HANDLE ASSY, FRONT INCLUDES ITEMS 8-13; S/N: 559294 - 566210 ECH-P021000000
...
8
HANDLE, LOOP S/N: 559294 - 566210 ECH-35120507131
...
9
SCREW 5x14 S/N: 559294 - 566210 ECH-90024205014
...
10
SCREW 5x35 S/N: 559294 - 566210 ECH-90024205035
...
11
BRACKET, HANDLE S/N: 559294 - 566210 ECH-P021013241
...
12
BRACKET, HANDLE S/N: 559294 - 566210 ECH-C423000300
...
13
NUT M5 S/N: 559294 - 566210 ECH-90050000005
...
14
HANDLE ASSY, SUPPORT INCLUDES ITEMS 15-21; S/N: 566211 & UP ECH-P021012390
...
15
GRIP, HANDLE S/N: 566211 & UP ECH-35121666230
...
16
HANDLE, SUPPORT S/N: 566211 & UP ECH-35120566230
...
17
WASHER, FLAT 5.5x10x0.8 S/N: 566211 & UP ECH-90060000005
...
18
SCREW 5 S/N: 566211 & UP ECH-88995021060
...
19
SCREW 5x35 S/N: 566211 & UP ECH-90024205035
...
20
BRACKET, HANDLE S/N: 566211 & UP ECH-C423000300
...
21
NUT M5 S/N: 566211 & UP ECH-90050000005
...
22
LABEL - CAUTION ECH-89022809560
...
23
LABEL - CAUTION ECH-89016054130
...
24
HOOK Includes ITEM 25 ECH-30120708930
...
25
BOLT 5x18 ECH-90010005018
...
26
CLAMP KIT Includes ITEM 27 ECH-30120029431
...
27
SCREW 5x14 ECH-90024205014
...
28
SWITCH ASSY, ON-OFF ECH-16340155631
...
29
HANDLE KIT, CONTROL INCLUDES ITEMS 30-32 ECH-17800352130
...
30
NUT M5 ECH-90050000005
...
31
SCREW 5x35 ECH-90024205035
...
32
SCREW 5x25 ECH-90024205025
...
33
TRIGGER, THROTTLE ECH-17801052130
...
34
SPRING, TORSION ECH-17804342230
...
35
PIPE ECH-17812750330
...
36
CABLE, THROTTLE S/N: 001001-509053 ECH-17800144430
...
36
CABLE, THROTTLE S/N: 509054-562999 ECH-17800156730
...
36
CABLE, THROTTLE S/N: 563000 & UP ECH-17800156530
...
37
NUT M6 S/N: 001001-562999 ECH-90050200006
...
38
GRIP, HANDLE ECH-35121352130
...
39
CLAMP KIT INCLUDES ITEMS 40-41 ECH-61027252130
...
40
SCREW 5x28 ECH-90024205028
...
41
NUT M5 ECH-90050000005
...
42
MAIN PIPE ASSY 25x1500 INCLUDES ITEMS 43-44 ECH-61060944730
...
43
STOPPER ECH-61024644730
...
44
LINER, FLEXIBLE ECH-C507000430
...
45
DRIVESHAFT - FLEXIBLE ECH-C506000390
...
46
LABEL - ALIGNMENT ECH-89015204930
