Echo SRM-2400 Type 1E Brushcutter

Model: SRM-2400 Type 1E

Back To Assemblies

Save Part Not Listed?
product name

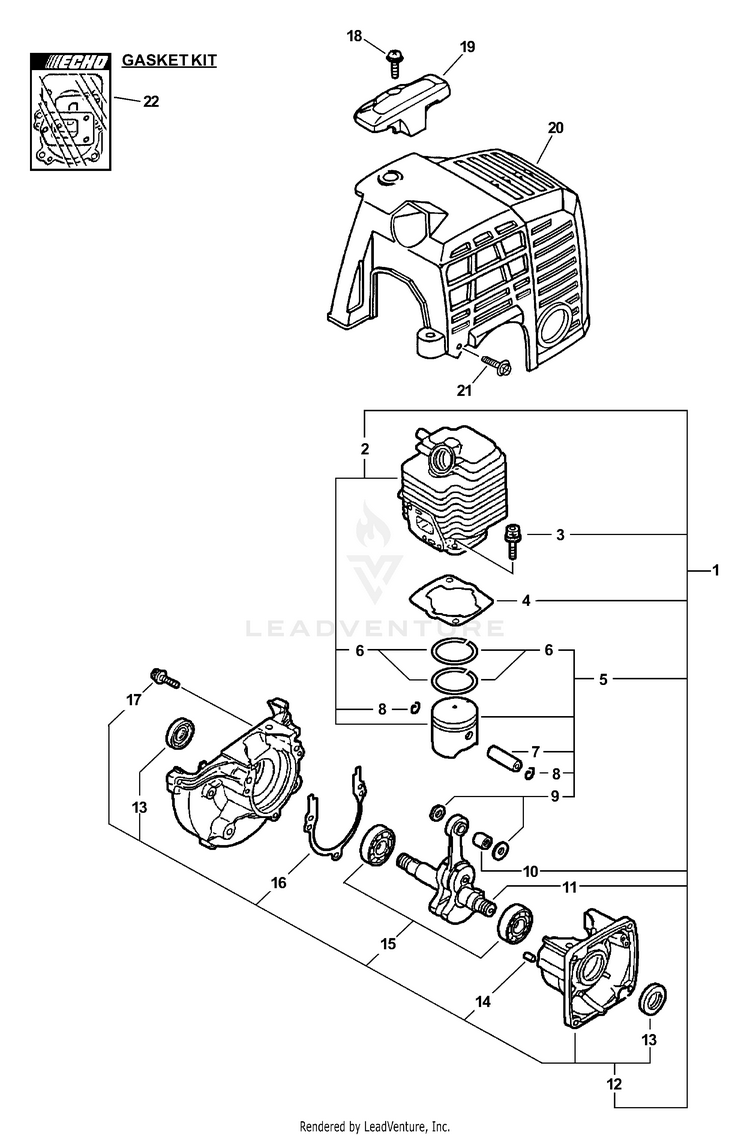

Engine, Crankcase, Cylinder Cover

...
...
1
SHORT BLOCK ES-2400 INCLUDES ITEMS 2-17; OPTIONAL ENGINE REPOWER ECH-SB1027
...
2
CYLINDER/PISTON KIT SRM-2400 INCLUDES CYLINDER, PISTON, & ITEMS 6 & 8 ECH-P021035810
...
3
BOLT 5x22 ECH-90016205022
...
4
GASKET, CYLINDER Included In GASKET KIT ECH-10101044332
...
5
PISTON KIT Includes ITEMS 6-9 ECH-10000052130
...
6
RING, PISTON ECH-10001109560
...
7
PIN, PISTON 8 ECH-10001311520
...
8
RING, SNAP ECH-10001504630
...
9
WASHER, THRUST ECH-10001411520
...
10
BEARING, NEEDLE 8 ECH-V553000010
...
11
CRANKSHAFT ASSY ECH-A011001410
...
12
CRANKCASE KIT Includes ITEMS 13-17 ECH-10020451031
...
13
SEAL, OIL 12 ECH-10021242031
...
14
PIN, LOCATING 4 ECH-V622000020
...
15
BEARING, BALL 6201 ECH-9403536201
...
16
GASKET, CRANKCASE Included In GASKET KIT ECH-10024242030
...
17
BOLT 5x28 ECH-90016205028
...
18
SCREW 5x16 ECH-90023805016
...
19
GUARD, TOP ECH-15991254130
...
20
COVER, ENGINE ECH-10151448930
...
21
BOLT 4x16 ECH-V202000830
...
22
GASKET KIT S/N: SRM-2400 -- 001001-562999 & SRM-2410 -- 001001-503485 ECH-88900005960
...
22
GASKET KIT S/N: SRM-2400 -- 563000 & UP & SRM-2410 -- 503486 & UP ECH-88900004861
