Echo SRM-2300 Brushcutter

Model: SRM-2300

Back To Assemblies

Save Part Not Listed?
product name

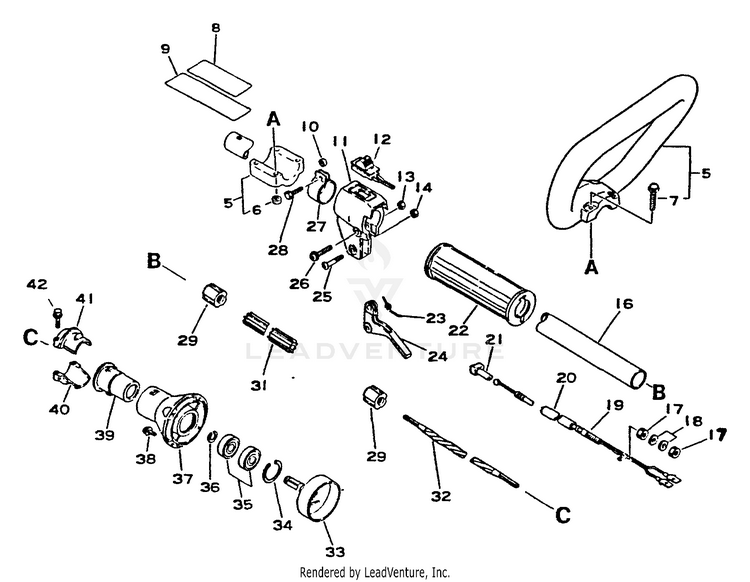

Driveshaft, Handles, Throttle, Stop Switch, Clutch Housing

...
...
5
HANDLE ASSY - SUPPORT ECH-P021049270
...
6
NUT M5 ECH-90050000005
...
7
SCREW 5x35 ECH-90024205035
...
8
LABEL ECH-89017709130
...
9
LABEL ECH-89016044730
...
10
SPACER ECH-69901203330
...
11
BRACKET, THROTTLE CONTROL ECH-17802449230
...
12
IGNITION SWITCH ASSY ECH-16340009630
...
13
NUT M5 ECH-90050000005
...
14
NUT, LOCK M5 ECH-90056000005
...
16
PIPE, MAIN ECH-61021023030
...
17
NUT M6 ECH-90050200006
...
18
WASHER 6.5x11.5x0.8 ECH-90060000006
...
19
CABLE, THROTTLE ECH-17800108931
...
20
PIPE ECH-17812724030
...
21
GUIDE, CABLE ECH-17804805630
...
22
GRIP ECH-35101244730
...
23
SPRING, THROTTLE ECH-17804306930
...
24
TRIGGER, THROTTLE ECH-C450000060
...
25
SCREW ECH-17811005330
...
26
SCREW 5x30 ECH-90024205030
...
27
HOOK ECH-30120708930
...
28
BOLT 5x18 ECH-90010005018
...
29
STOPPER ECH-61024644730
...
31
LINER, FLEXIBLE ECH-C507000430
...
32
DRIVESHAFT - FLEXIBLE ECH-C506000390
...
33
DRUM, CLUTCH ECH-17500544730
...
34
RING, SNAP 28 ECH-90070200028
...
35
BEARING, BALL ECH-9404206001
...
36
RING, SNAP 12 ECH-90070100012
...
37
CASE, CLUTCH ECH-61022344730
...
38
SCREW 5x16 ECH-90023805016
...
39
CUSHION ECH-61091027832
...
40
HOLDER ECH-61092327432
...
41
HOLDER, MAIN PIPE - UPPER ECH-61092227432
...
42
BOLT - 5x25 ECH-90014205025
