product name

Echo SRM-2300 Brushcutter

Model: SRM-2300

Back To Assemblies

Save Part Not Listed?
product name

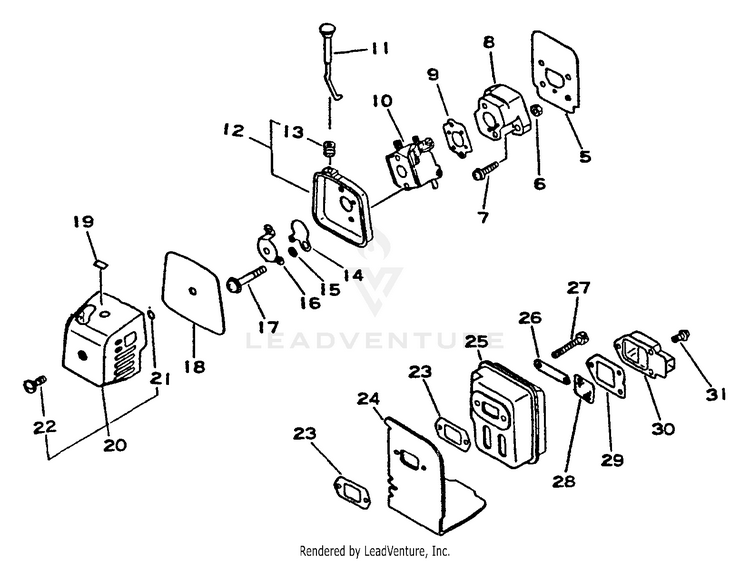

Intake, Exhaust, Air Cleaner

...
...
5
HEAT SHIELD, INTAKE ECH-V103001360
...
6
NUT M5 ECH-90050000005
...
7
SCREW 5x20 ECH-90023805020
...
8
INSULATOR, INTAKE ECH-13001742031
...
9
GASKET, INTAKE ECH-13001642031
...
10
CARBURETOR ECH-12520044733
...
11
ROD, CHOKE ECH-17851004560
...
12
CASE, AIR FILTER ECH-13030104560
...
13
GROMMET, CHOKE ECH-17881005230
...
14
SHUTTER, CHOKE ECH-17851504560
...
15
WASHER 5.2x8x0.8T ECH-17851600830
...
16
CASE, AIR FILTER ECH-13041044730
...
17
SCREW 5x57 ECH-90024205057
...
18
FILTER, AIR ECH-13031004560
...
19
LABEL - CHOKE ECH-89012112330
...
20
COVER ASSY, AIR FILTER ECH-13030244730
...
21
O-RING ECH-90072000004
...
22
SCREW ECH-13041540630
...
23
GASKET, EXHAUST Included in Muffler Ass'y, P/N 14580042030 ECH-V104000160
...
24
HEAT SHIELD, EXHAUST ECH-A320000251
...
25
MUFFLER Included in Muffler Ass'y, P/N 14580042030 ECH-14580642030
...
26
WASHER ECH-14564204930
...
27
BOLT 5x55 ECH-90010505055
...
28
SCREEN, SPARK ARRESTER Included in Muffler Ass'y, P/N 14580042030 ECH-14586240630
...
29
GASKET, EXHAUST Included in Muffler Ass'y, P/N 14580042030 ECH-14586642031
...
30
COVER, MUFFLER Included in Muffler Ass'y, P/N 14580042030 ECH-145809-42030
...
31
SCREW 4x10 Included in Muffler Ass'y, P/N 14580042030 ECH-90024204010
...
xx
MUFFLER ECH-14580642030
