Echo SRM-2300 Brushcutter

Model: SRM-2300

Back To Assemblies

Save Part Not Listed?
product name

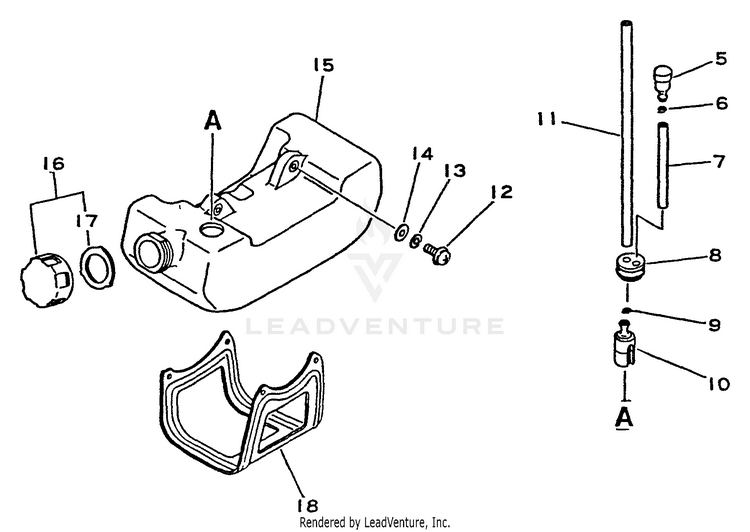

Fuel System

...
...
5
VENT ASSY ECH-13130056431
...
6
CLIP 5.5 ECH-13011100530
...
7
PIPE, FUEL RePower BULK OPTION: 90014 ECH-V471-001200
...
8
GROMMET, FUEL ECH-13211544331
...
9
CLIP 6 MM ECH-13201309820
...
10
FILTER, FUEL ECH-A369000480
...
11
PIPE, FUEL RePower BULK OPTION: 90014 ECH-V471-001190
...
12
SCREW 5x16 ECH-90022005016
...
13
WASHER, SPRING 5 ECH-90060500005
...
14
WASHER 5.5x12x0.8 ECH-90060300005
...
15
TANK, FUEL ECH-13100546831
...
16
FUEL CAP ASSY ECH-P200000820
...
17
GASKET, FUEL CAP ECH-13101640930
...
18
GUARD, FUEL TANK ECH-30511042030
Schematic Image Zoomed
