Echo SRM-2300 Brushcutter

Model: SRM-2300

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

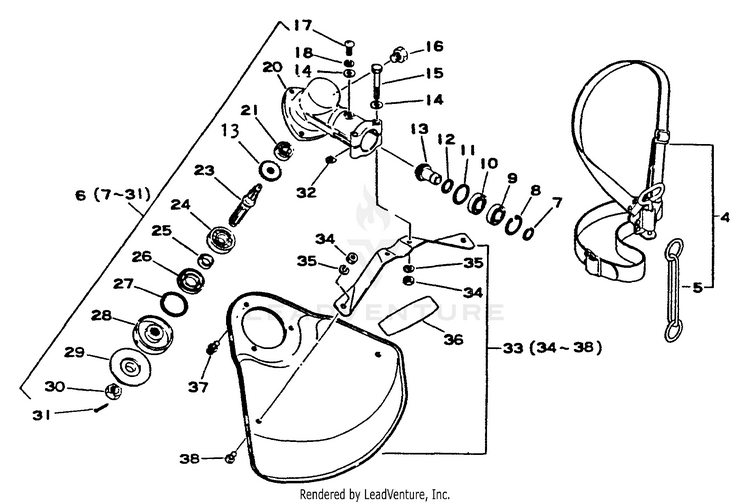

Gear Case, Shield, Metal, Harness

...
...
4
HARNESS ASY ECH-30100055232
...
5
RING, HARNESS ECH-30130524330
...
6
GEAR CASE ASSY ECH-61040042330
...
7
RING, SNAP 10 ECH-90070600010
...
8
RING, SNAP 22 ECH-90070200022
...
9
BEARING, BALL 6900Z ECH-90085806900
...
10
BEARING, BALL 6900 ECH-90085506900
...
11
WASHER ECH-61031722830
...
12
WASHER ECH-61031622830
...
13
GEAR SET ECH-61030042330
...
14
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
15
BOLT 5x35 SP ECH-90010005035
...
16
BOLT 8x8 SP ECH-90010008008
...
17
SCREW 5x10 ECH-90022005010
...
18
WASHER, SPRING 5 ECH-90060500005
...
20
CASE, GEAR ECH-61041040830
...
21
BEARING, BALL 626 ECH-90081000626
...
23
SHAFT, GEAR ECH-61031040830
...
24
BEARING, BALL 6000 ECH-90080006000
...
25
SPACER ECH-61031522830
...
26
SEAL, OIL ECH-61041322830
...
27
RING, SNAP 26 ECH-90070200026
...
28
PLATE, ADAPTOR - UPPER ECH-61031340830
...
29
PLATE, ADAPTOR - LOWER ECH-61031406030
...
30
NUT 10 ECH-90051100010
...
31
PIN, COTTER 2x22 BULK OPTION: 89850201130 - 10 PACK ECH-90030020022
...
32
D-WASHER ECH-61023904130
...
33
SHIELD ASSY ECH-69900009131
...
34
NUT M5 ECH-90050000005
...
35
WASHER, SPRING 5 ECH-90060500005
...
37
SCREW 5x10 ECH-90024205010
...
38
SCREW 5x16 ECH-90024205016
...
36
LABEL - ECHO ECH-X502000320
