Echo SRM-2110 Type 1E Brushcutter

Model: SRM-2110 Type 1E

Back To Assemblies

Save Part Not Listed?
product name

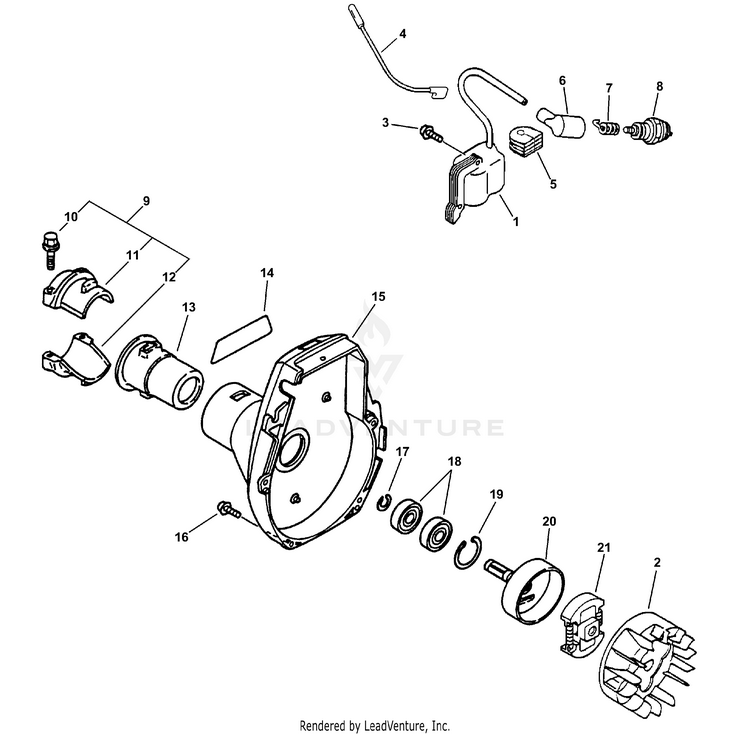

Ignition, Fan Case

...
...
1
COIL, IGNITION SRM-2100 TYPE 1E & SRM-2110 TYPE 1E - S/N 001001-008042 ECH-15660152131
...
2
FLYWHEEL SRM-2100 TYPE 1E & SRM-2110 TYPE 1E - S/N 001001-008042 ECH-15680144731
...
1
COIL,IGNITION SRM-2100 TYPE 1E - S/N 008043 & UP & SRM-2110 TYPE 1E - S/N 501001 & UP ECH-15662609661
...
2
FLYWHEEL SRM-2100 TYPE 1E - S/N 008043 & UP & SRM-2110 TYPE 1E - S/N 501001 & UP ECH-15680109660
...
3
SCREW 4x22 ECH-90016204022
...
4
LEAD - IGNITION ECH-V485001080
...
5
GROMMET ECH-15611240630
...
6
CAP, SPARK PLUG ECH-15901201620
...
7
TERMINAL, SPARK PLUG ECH-15901103432
...
8
SPARK PLUG - BPMR7A ECH-15901010230
...
9
RETAINER KIT Includes ITEMS 10-12 ECH-61090355230
...
10
BOLT - 5x25 ECH-90014205025
...
11
HOLDER, MAIN PIPE - UPPER ECH-61092227432
...
12
HOLDER - LOWER ECH-A575000100
...
13
CUSHION 25 ECH-61091055230
...
14
LABEL - MODEL SRM-2100 ECH-89011554130
...
14
LABEL - MODEL SRM-2110 ECH-89011254130
...
15
COVER ASSY, FAN ECH-10150352131
...
16
BOLT 4x16 ECH-V202000830
...
17
RING, SNAP 12 ECH-90070100012
...
18
BEARING, BALL 6001 ECH-9406106001
...
19
RING, SNAP 28 ECH-90070200028
...
20
DRUM, CLUTCH ECH-17500548931
...
21
CLUTCH ASSY ECH-17500056831
