Echo SRM-2110 Type 1E Brushcutter

Model: SRM-2110 Type 1E

Back To Assemblies

Save Part Not Listed?

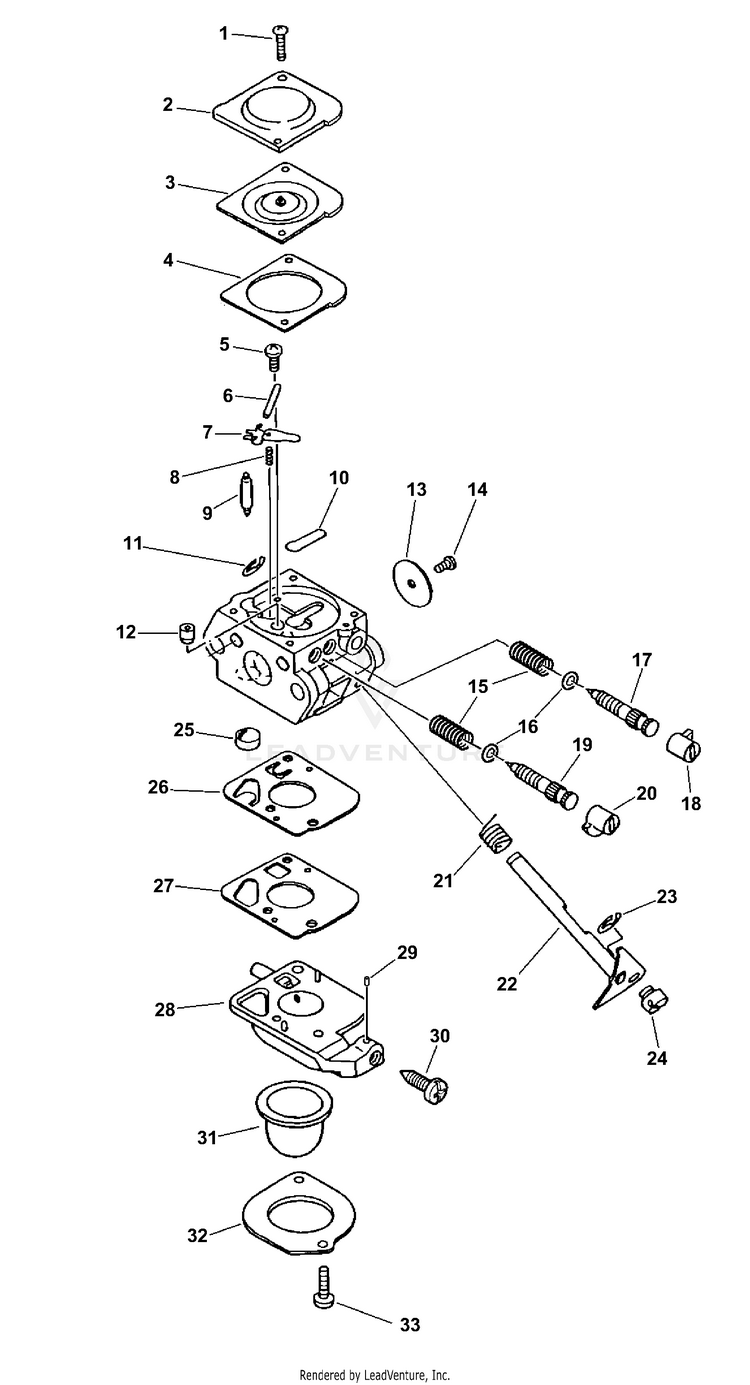

Carburetor S/N: 001001 - 008042

CARBURETOR C1U-K52 SRM-2400 SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001 - 008042; INCLUDES THE FOLLOWING: ECH-12520013317

SCREW SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001 - 008042 ECH-12534452130

COVER, METERING DIAPHRAGM SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001 - 008042 ECH-12534252130

DIAPHRAGM, METERING SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001 - 008042; USE REPAIR KIT 12530049030 AND GASKET/DIAPHRAGM KIT 12530349030 ECH---

GASKET, METERING SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001 - 008042; USE REPAIR KIT 12530049030 AND GASKET/DIAPHRAGM KIT 12530349030 ECH---

SCREW SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001 - 008042 ECH-12533942030

PIN, METERING LEVER SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001 - 008042; USE REPAIR KIT 12530049030 ECH---

LEVER, METERING SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001 - 008042; USE REPAIR KIT 12530049030 ECH---

SPRING, METERING LEVER SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001 - 008042; USE REPAIR KIT 12530049030 ECH---

VALVE, INLET NEEDLE SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001 - 008042; USE REPAIR KIT 12530049030 ECH---

PLUG, WELCH SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001 - 008042; USE REPAIR KIT 12530049030 ECH---

E-RING SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001 - 008042 ECH-12532715130

NOZZLE, CHECK VALVE SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001 - 008042 ECH-12537649030

VALVE, THROTTLE SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001 - 008042 ECH-12531649030

SCREW SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001 - 008042 ECH-12531413930

SPRING, COIL SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001 - 008042 ECH-125319-42030

WASHER SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001 - 008042 ECH-12535320560

NEEDLE, IDLE SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001 - 008042 ECH-12531807360

CAP, LIMITER - WHITE SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001 - 008042 ECH-12532909860

NEEDLE, HIGH SPEED SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001 - 008042 ECH-12532007360

CAP, LIMITER - RED SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001 - 008042 ECH-12532939030

SPRING, THROTTLE RETURN SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001 - 008042 ECH-12531342030

SHAFT, THROTTLE SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001 - 008042 ECH-12531749030

CLIP SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001 - 008042 ECH-125327-13930

SWIVEL SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001 - 008042 ECH-12537242030

STRAINER SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001 - 008042; USE REPAIR KIT 12530049030 ECH---

DIAPHRAGM, PUMP SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001 - 008042; USE REPAIR KIT 12530049030 AND GASKET/DIAPHRAGM KIT 12530349030 ECH---

GASKET, PUMP SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001 - 008042; USE REPAIR KIT 12530049030 AND GASKET/DIAPHRAGM KIT 12530349030 ECH---

BODY ASSY, PURGE SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001 - 008042 ECH-P005000990

PIECE, FRICTION SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001 - 008042 ECH-12537813930

SCREW, IDLE ADJUST SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001 - 008042 ECH-12533413930

BULB, PURGE SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001 - 008042 ECH-P005003120

RETAINER SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001 - 008042 ECH-12536311610

SCREW SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001 - 008042 ECH-12531011610

REPAIR KIT, CARBURETOR ECH-P005002840

GASKET / DIAPHRAGM KIT ECH-12530313310
