Echo SRM-2110 Type 1E Brushcutter

Model: SRM-2110 Type 1E

Back To Assemblies

Save Part Not Listed?
product name

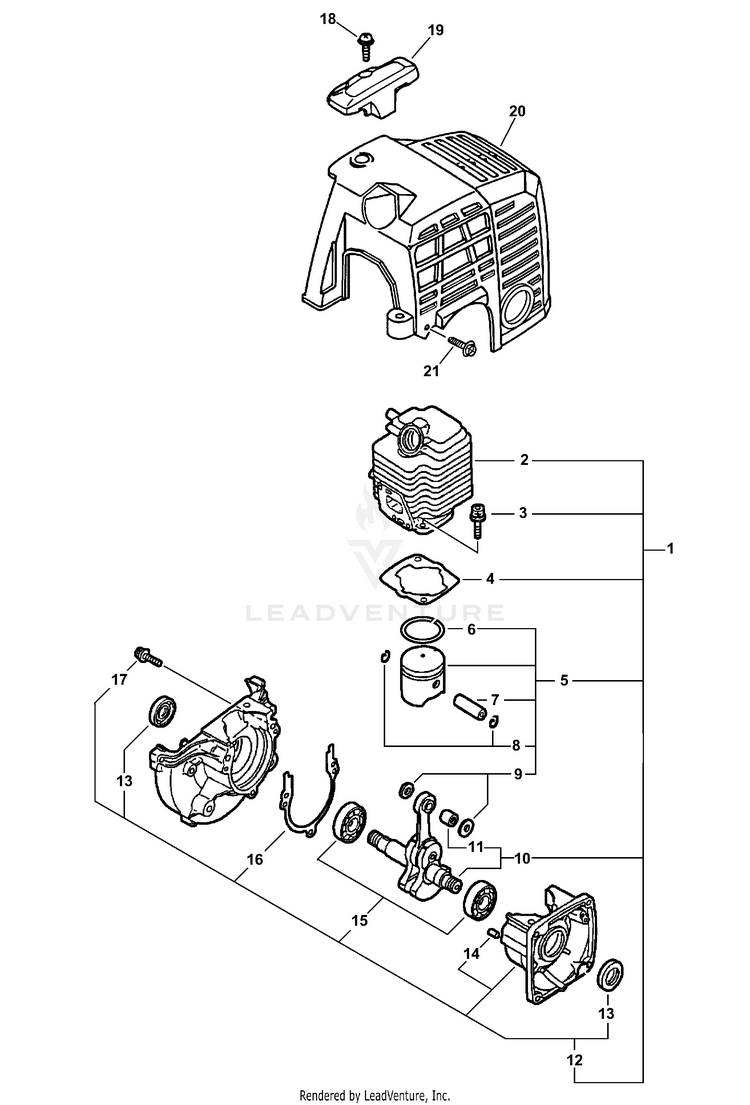

Engine, Crankcase, Cylinder Cover

...
...
1
SHORT BLOCK ES-2100;PB-2100 INCLUDES ITEMS 2-17; OPTIONAL ENGINE REPOWER ECH-SB1026
...
2
CYLINDER SRM-2100 TYPE 1E - S/N 001001-671697, SRM-2110 TYPE 1E - S/N 001001- 503538 ECH-10101106562
...
2
CYLINDER SRM-2100 TYPE 1E - S/N 671698 & UP, SRM-2110 TYPE 1E - S/N 503539 & UP ECH-A130000012
...
3
BOLT 5x22 ECH-90016205022
...
4
GASKET, CYLINDER Included in GASKET KIT 88900042033 ECH-10101044332
...
5
KIT, PISTON Includes ITEMS 6-9 ECH-P100013150
...
6
RING, PISTON ECH-10001105330
...
7
PIN, PISTON 8 ECH-10001311520
...
8
RING, SNAP ECH-10001504630
...
9
WASHER, THRUST ECH-10001411520
...
10
CRANKSHAFT ASSY Includes ITEM 11 ECH-A011001410
...
11
BEARING, NEEDLE 8 ECH-V553000010
...
12
CRANKCASE KIT Includes ITEMS 13-17 ECH-10020452133
...
13
SEAL, OIL 12 ECH-10021242031
...
14
PIN, LOCATING 4 ECH-V622000020
...
15
BEARING, BALL 6201 ECH-9403536201
...
16
GASKET, CRANKCASE Included in GASKET KIT 88900042033 ECH-10024242030
...
17
BOLT 5x28 ECH-90016205028
...
18
SCREW 5x16 ECH-90023805016
...
19
GUARD, TOP ECH-15991254130
...
20
COVER, ENGINE ECH-10151448930
...
21
BOLT 4x16 ECH-V202000830
...
xx
GASKET KIT CONTAINS THE FOLLOWING: ECH-88900042036
...
xx
GASKET, CRANKCASE GASKET KIT ECH-10024242030
...
xx
GASKET, CYLINDER GASKET KIT ECH-10101044332
...
xx
HEAT SHIELD, INTAKE GASKET KIT ECH-V103001360
...
xx
GASKET, INTAKE GASKET KIT ECH-13001642031
...
xx
GASKET, EXHAUST GASKET KIT ECH-14586642031
...
xx
GASKET, EXHAUST GASKET KIT ECH-V104000003
...
xx
GASKET, EXHAUST GASKET KIT ECH-V104000160
