Echo SRM-2110 Type 1 Brushcutter

Model: SRM-2110 Type 1

Back To Assemblies

Save Part Not Listed?
product name

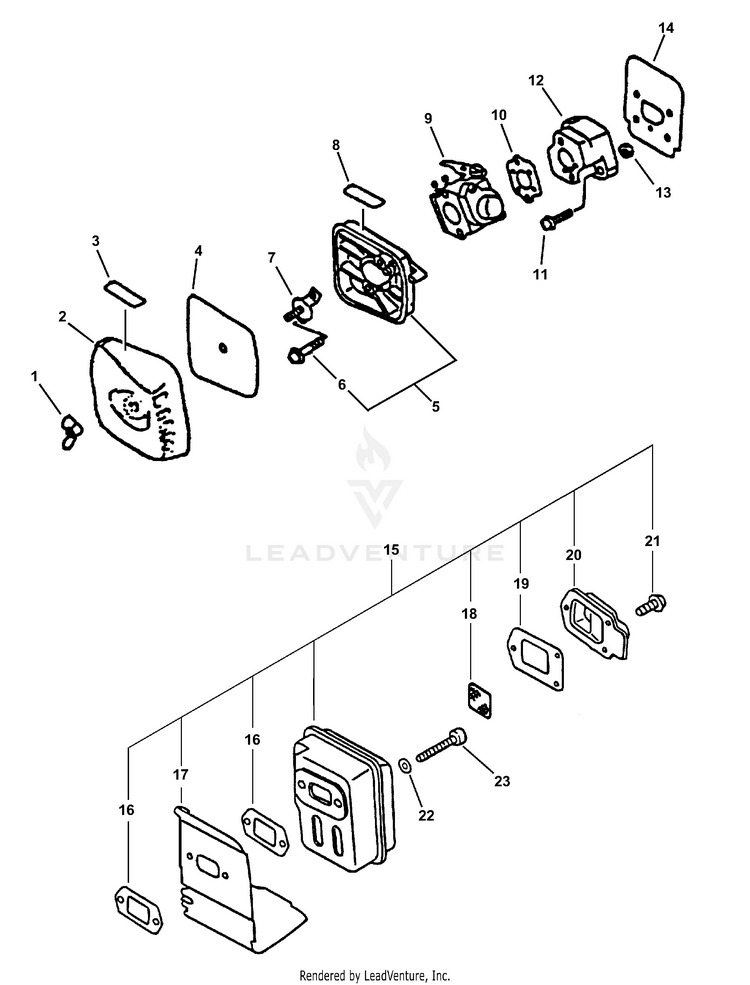

Intake, Exhaust

...
...
1
WINGNUT - 6 ECH-90052800005
...
2
COVER, AIR FILTER ECH-13030206561
...
3
LABEL - TOP ECH-89018706960
...
4
FILTER, AIR - DOUBLE LAYER ECH-A226001410
...
5
CASE, AIR FILTER - GRAY Includes ITEM 6 ECH-P021002921
...
6
SCREW 5x65 ECH-90024205065
...
7
PLATE, PREVENT ECH-12901105060
...
8
LABEL - CHOKE ECH-89012106360
...
9
CARBURETOR SEE "Carburetor (S/N 001001-205481, S/N 001001-018529)" ILLUSTRATION & PARTS LIST; SRM-2100 S/N 001001-205481 & SRM-2110 S/N 001001-018529 ECH-12520050633
...
9
CARBURETOR C1U-K52 SRM-2400 SEE "Carburetor (S/N 205482-290322, S/N 018530-024170)" ILLUSTRATION & PARTS LIST; SRM-2100 S/N 205482-290322 & SRM-2110 S/N 018530-024170 ECH-12520013317
...
9
CARBURETOR C1U-K52 SRM-2400 SEE "Carburetor (S/N 290323 & UP, S/N 024171 & UP)" ILLUSTRATION & PARTS LIST; SRM-2100 S/N 290323 & UP & SRM-2110 S/N 024171 & UP ECH-12520013317
...
10
GASKET, INTAKE ECH-13001642031
...
11
SCREW 5x20 ECH-90023805020
...
12
INSULATOR, INTAKE ECH-13001742031
...
13
NUT M5 ECH-90050000005
...
14
HEAT SHIELD, INTAKE ECH-V103001360
...
15
MUFFLER Includes ITEMS 16-21 ECH-14580642030
...
16
GASKET, EXHAUST ECH-V104000160
...
17
COVER, MUFFLER ECH-A320-000251
...
18
SCREEN, SPARK ARRESTER ECH-14586240630
...
19
GASKET, EXHAUST ECH-14586642031
...
20
COVER, MUFFLER ECH-145809-42030
...
21
SCREW 4x10 ECH-90023804010
...
22
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
23
BOLT 5x55 ECH-90010505055
