Echo SRM-2110 Type 1 Brushcutter

Model: SRM-2110 Type 1

Back To Assemblies

Save Part Not Listed?
product name

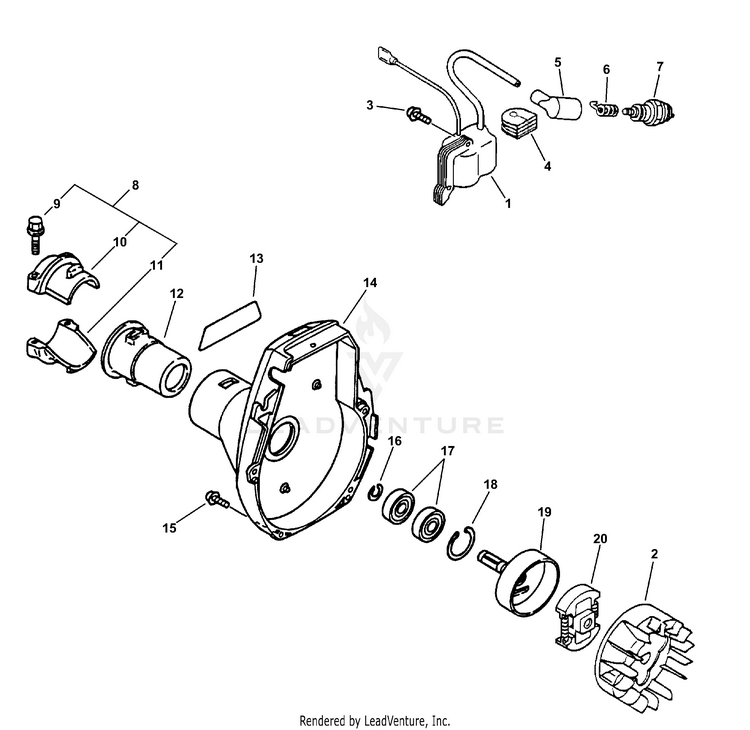

Ignition, Fan Case

...
...
1
COIL, IGNITION SRM-2100 S/N 001001 - 289257 & SRM-2110 S/N 001001 - 024169 ECH-15660144732
...
2
FLYWHEEL SRM-2100 S/N 001001 - 289257 & SRM-2110 S/N 001001 - 024169 ECH-15680144731
...
1
COIL,IGNITION SRM-2100 S/N 289258 & UP & SRM-2110 S/N 024170 & UP ECH-15662609661
...
2
FLYWHEEL SRM-2100 S/N 289258 & UP & SRM-2110 S/N 024170 & UP ECH-15680109660
...
3
SCREW 4x22 ECH-90016204022
...
4
GROMMET ECH-15611240630
...
5
CAP, SPARK PLUG ECH-15901201620
...
6
TERMINAL, SPARK PLUG ECH-15901103432
...
7
SPARK PLUG - BPMR7A ECH-15901010230
...
8
RETAINER KIT INCLUDES ITEMS 9-11 ECH-61090355230
...
9
BOLT - 5x25 ECH-90014205025
...
10
HOLDER, MAIN PIPE - UPPER ECH-61092227432
...
11
HOLDER - LOWER ECH-A575000100
...
12
CUSHION 25 ECH-61091055230
...
13
LABEL - MODEL SRM-2100 ECH-89011554130
...
13
LABEL - MODEL SRM-2110 ECH-89011254130
...
14
COVER ASSY, FAN ECH-10150352131
...
15
BOLT 4x16 ECH-V202000830
...
16
RING, SNAP 12 ECH-90070100012
...
17
BEARING, BALL 6001 ECH-9406106001
...
18
RING, SNAP 28 ECH-90070200028
...
19
DRUM, CLUTCH ECH-17500548931
...
20
CLUTCH ASSY ECH-17500056831
