Echo SRM-210E Brushcutter

Model: SRM-210E

Back To Assemblies

Save Part Not Listed?
product name

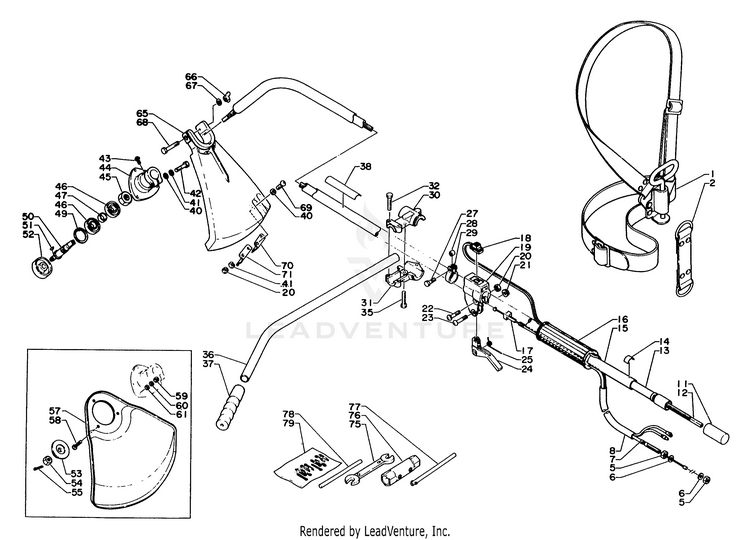

Driveshaft, Handles, Harness, Throttle, Stop Switch, Gear Case, Shield, Tools

...
...
1
HARNESS ASY ECH-30100055232
...
2
STRAP ASSY, SHOULDER ECH-30130507530
...
5
NUT M6 ECH-90050200006
...
6
WASHER 6.5x11.5x0.8 ECH-90060000006
...
7
CABLE, THROTTLE ECH-17800109630
...
8
PIPE ECH-17812724030
...
11
CAP ECH---
...
12
DRIVESHAFT - FLEXIBLE ECH-C506000090
...
13
LINER ECH-61021723330
...
14
LABEL - ALIGNMENT ECH-89015204930
...
15
MAIN PIPE ASSY ECH-61060944530
...
16
GRIP ECH-35111144530
...
17
GUIDE, CABLE ECH-17804805630
...
18
IGNITION SWITCH ASSY ECH-16340009630
...
19
BRACKET, THROTTLE ECH-17802409630
...
20
NUT M5 ECH-90050000005
...
21
NUT, LOCK M5 ECH-90056000005
...
22
SCREW 5x28 ECH-90024205028
...
23
SCREW ECH-17811005330
...
24
TRIGGER, THROTTLE ECH-C450000060
...
25
SPRING, THROTTLE ECH-17804306930
...
27
BOLT 5x18 ECH-90010005018
...
28
SPACER ECH-69901203330
...
29
HOOK ECH-30120723330
...
xx
HANDLE BRACKET Consists of 30 thru 35 ECH-35160125130
...
30
BRACKET ECH---
...
31
BRACKET ECH---
...
32
BOLT - 5x25 ECH-90014205025
...
35
BOLT 5x28 ECH-90014205028
...
36
HANDLE ECH-35161009930
...
37
GRIP ECH-35121305930
...
38
LABEL ECH-89016044730
...
xx
GEAR CASE ASSY Consists of 40 thru 55 ECH-61040023330
...
40
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
41
WASHER, SPRING 5 ECH-90060500005
...
42
BOLT - 5x25 ECH-90015005025
...
43
SCREW 4x10 ECH-90024204010
...
44
CASE, BEARING ECH-61041023330
...
45
NUT - 12 - LEFT HAND ECH-99051300012
...
46
BEARING, BALL ECH-9404206001
...
47
SPACER ECH-61031506530
...
48
UNKNOWN ECH---
...
49
RING, SNAP 28 ECH-90070200028
...
50
GEAR, SHAFT ECH-61031023330
...
51
KEY, WOODRUFF ECH-61032502730
...
52
PLATE, ADAPTOR - UPPER ECH-61031306530
...
53
PLATE, ADAPTOR - LOWER ECH-61031406030
...
54
NUT ECH-61032023330
...
55
PIN, SPLIT Includes items 67 ECH---
...
57
SHIELD ASS'Y (STEEL) Consists of 58 thru 61 ECH-69900007330
...
58
SCREW 4x18 ECH-90022004018
...
59
NUT ECH-900500-00004
...
60
WASHER, SPRING 4 ECH-900605-00004
...
61
WASHER 4 MM ECH-90060000004
...
65
SHIELD ASSY, DEBRIS Consists of 20, 40, 41, and 66 thru 71 ECH-P021053910
...
20
NUT M5 ECH-90050000005
...
40
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
41
WASHER, SPRING 5 ECH-90060500005
...
66
NUT, WING 6 ECH-90052500006
...
67
WASHER 6 ECH-90060200006
...
68
BOLT - 6x50 ECH-90010006050
...
69
SCREW 5x14 ECH-90022005014
...
70
KNIFE, TRIMMER LINE ECH-69901606320
...
71
GUARD ECH-69921209630
...
75
SPANNER 8x10 ECH-89511200330
...
76
WRENCH 17x19 ECH-89541905330
...
77
ROD, HANDLE ECH-89541200230
...
78
TOOL, LOCKING 5x120 MM ECH-89751801131
...
79
PIN, COTTER 2x22 (PKG. OF 10) ECH-89850201130
