Echo SRM-210E Brushcutter

Model: SRM-210E

Back To Assemblies

Save Part Not Listed?
product name

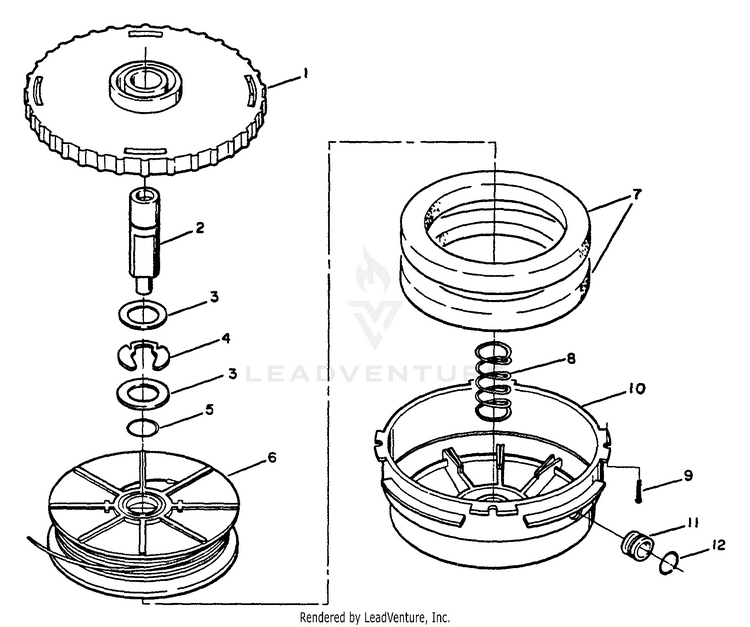

Line Head

...
...
1
PLATE - REAR ECH-382915
...
2
ADAPTOR, DRIVE ECH-529600
...
3
WASHER ECH-22014643
...
4
RING, WIRE RETAINING ECH-487410
...
5
RING, THRUST RETAINING ECH-246730
...
xx
SPOOL ASSY ECH---
...
6
SPOOL WITH 0.080 LINE (CLEAR) ECH-486865
...
6
SPOOL WITH 0.095 LINE (CLEAR) ECH-486855
...
6
SPOOL WITH 0.080 LINE (CLEAR) ECH-486865
...
7
PAD, FOAM ECH-158620
...
8
SPRING ECH-157410
...
9
PIN - COTTER ECH-270310
...
10
HUB ASSY ECH-486425
...
11
EYELET ECH-157600
...
12
RING, EYELET ECH-487420
