Echo SRM-210AE Brushcutter

Model: SRM-210AE

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

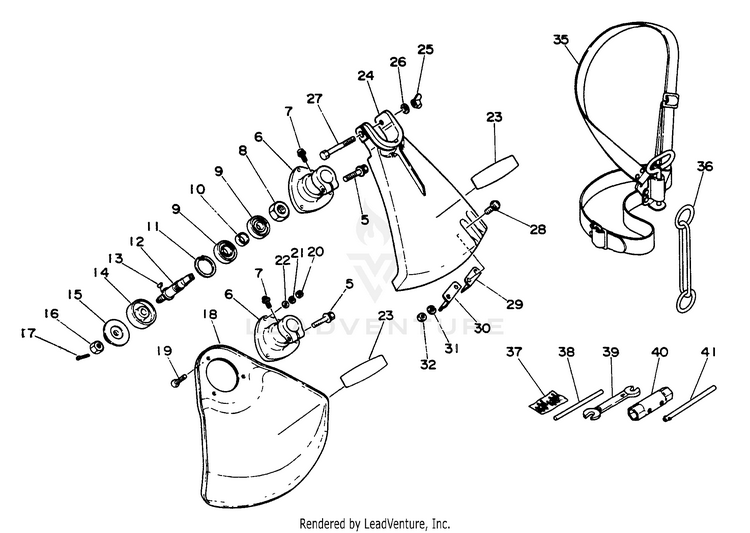

Shield, Gear Case, Harness, Tools

...
...
xx
GEAR CASE ASSY Consists of 5 thru 17 ECH-61040023330
...
5
BOLT - 5x25 ECH-90015205025
...
6
CASE, BEARING ECH-61041023330
...
7
SCREW 4x10 ECH-90024204010
...
8
NUT 12 L.H. ECH-90051300012
...
9
BEARING, BALL ECH-9404206001
...
10
SPACER ECH-61031506530
...
11
RING, SNAP 28 ECH-90070200028
...
12
GEAR, SHAFT ECH-61031023330
...
13
KEY, WOODRUFF ECH-61032502730
...
14
PLATE, ADAPTOR - UPPER ECH-61031306530
...
15
PLATE, ADAPTOR - LOWER ECH-61031406030
...
16
NUT ECH-61032023330
...
17
PIN, COTTER 2x22 BULK OPTION: 89850201130 - 10 PACK ECH-90030020022
...
18
SHIELD ASS'Y (STEEL) Includes 19 thru 23 ECH-69900007330
...
19
SCREW 4x18 ECH-90022004018
...
20
NUT ECH-900500-00004
...
21
WASHER, SPRING 4 ECH-900605-00004
...
22
WASHER 4 MM ECH-90060000004
...
23
LABEL - ECHO ECH-X502000320
...
24
SHIELD - NYLON Includes 25 thru 32 ECH-59900023330
...
25
NUT, WING 6 ECH-90052500006
...
26
WASHER 6.5x11.5x0.8 ECH-90060000006
...
27
BOLT - 6x50 ECH-90010006050
...
28
SCREW 5x14 ECH-90024005014
...
29
KNIFE, TRIMMER LINE ECH-69901606320
...
30
GUARD ECH-69921209630
...
31
WASHER, SPRING 5 ECH-90060500005
...
32
NUT M5 ECH-90050000005
...
35
HARNESS ASY Includes 36 ECH-30100055232
...
36
RING, HARNESS ECH-30130524330
...
37
PIN, COTTER 2x22 (PKG. OF 10) ECH-89850201130
...
38
ROD, LOCKING ECH-89761801131
...
39
SPANNER 8x10 ECH-89511200330
...
40
WRENCH 17x19 ECH-89541905330
...
41
ROD, HANDLE ECH-89541200230
