Echo SRM-210AE Brushcutter

Model: SRM-210AE

Back To Assemblies

Save Part Not Listed?
product name

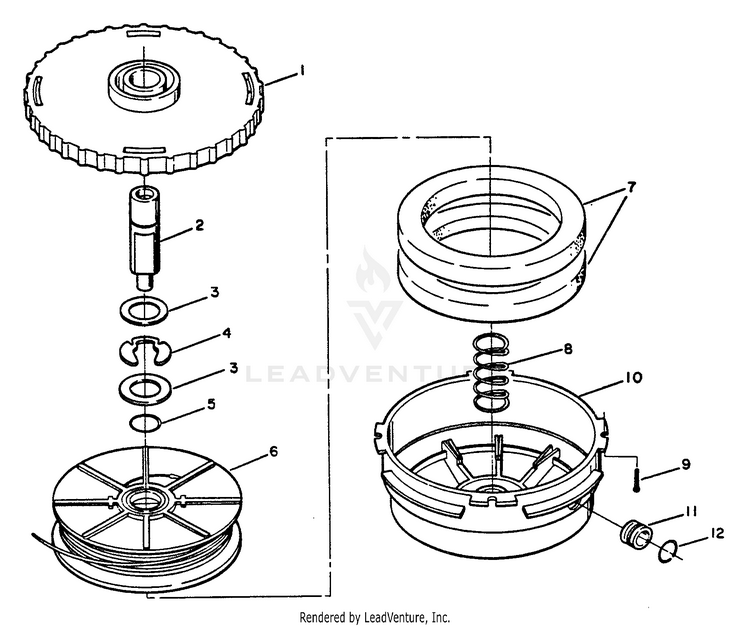

Line Head

...
...
1
PLATE - REAR ECH-362915
...
2
ADAPTOR, DRIVE ECH-529600
...
3
WASHER ECH-22014643
...
4
RING, WIRE RETAINING ECH-487410
...
5
RING, THRUST RETAINING ECH-246730
...
6
SPOOL ASSY ECH---
...
6
SPOOL WITH 0.080 LINE (CLEAR) ECH-486865
...
6
SPOOL WITH 0.095 LINE (CLEAR) ECH-486855
...
6
SPOOL WITH 0.080 LINE (CLEAR) ECH-486865
...
7
PAD, FOAM ECH-158620
...
8
SPRING ECH-157410
...
9
PIN - COTTER ECH-270310
...
10
HUB ASSY ECH-486425
...
11
EYELET ECH-157600
...
12
RING, EYELET ECH-487420
...
xx
BLADE, 20 MM ID - 8 TOOTH - 8" OPTIONAL ECH-69600120330
...
xx
SAW, CIRCULAR OPTIONAL ECH-69500108330
