Echo SRM-2100 Type 1E Brushcutter

Model: SRM-2100 Type 1E

Back To Assemblies

Save Part Not Listed?
product name

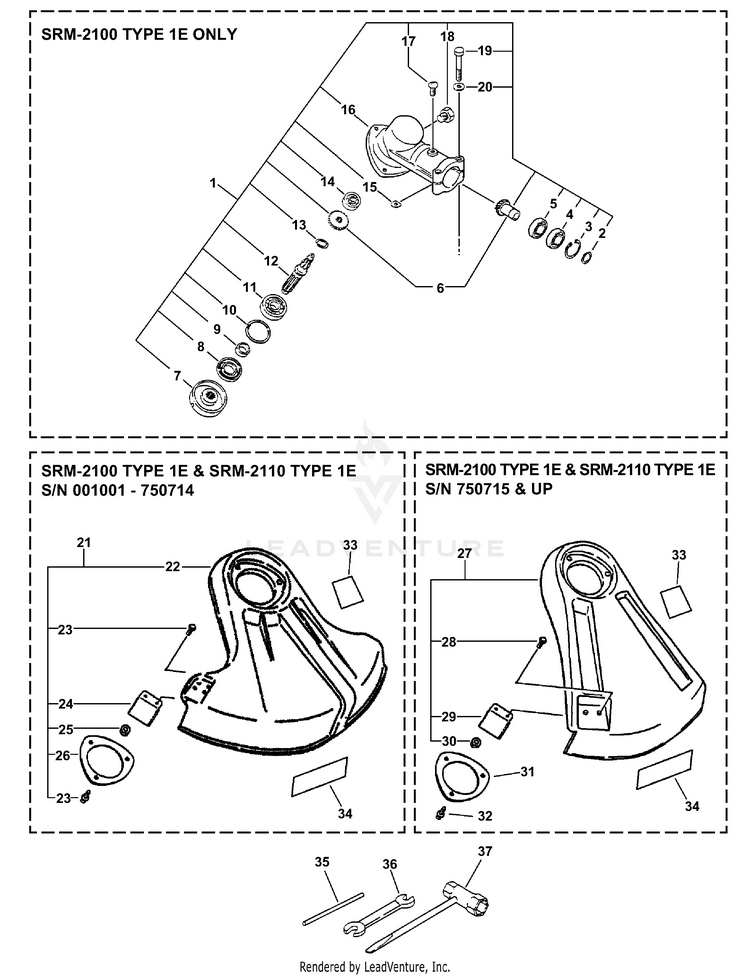

Gear Case, Shields, Tools

...
...
1
GEAR CASE ASSY INCLUDES ITEMS 1-20; SRM-2100 TYPE 1E ONLY ECH-P021053000
...
2
RING, SNAP 10 SRM-2100 TYPE 1E ONLY ECH-90070600010
...
3
RING, SNAP 22 SRM-2100 TYPE 1E ONLY ECH-90070200022
...
4
BEARING, BALL 6900Z SRM-2100 TYPE 1E ONLY ECH-90085806900
...
5
BEARING, BALL 6900 SRM-2100 TYPE 1E ONLY ECH-90085506900
...
6
GEAR SET SRM-2100 TYPE 1E ONLY ECH-61030044830
...
7
PLATE, ADAPTOR - UPPER SRM-2100 TYPE 1E ONLY ECH-61031347731
...
8
SEAL, OIL 22 SRM-2100 TYPE 1E ONLY ECH-61041307130
...
9
SPACER 11.8x15x9 SRM-2100 TYPE 1E ONLY ECH-61031507130
...
10
RING, SNAP 32 SRM-2100 TYPE 1E ONLY ECH-90070200032
...
11
BEARING, BALL 6201 SRM-2100 TYPE 1E ONLY ECH-9403536201
...
12
SHAFT, GEAR SRM-2100 TYPE 1E ONLY ECH-C534000270
...
13
RING, SNAP 12 SRM-2100 TYPE 1E ONLY ECH-90070600012
...
14
BEARING, BALL 609 SRM-2100 TYPE 1E ONLY ECH-90080000609
...
15
D-WASHER SRM-2100 TYPE 1E ONLY ECH-61023904130
...
16
GEAR CASE ASSY SRM-2100 TYPE 1E ONLY ECH-P021053000
...
17
SCREW 5x10 SRM-2100 TYPE 1E ONLY ECH-90024205010
...
18
BOLT 8x8 SP SRM-2100 TYPE 1E ONLY ECH-90010008008
...
19
BOLT 5x35 SP SRM-2100 TYPE 1E ONLY ECH-90010005035
...
20
WASHER, FLAT 5.5x10x0.8 SRM-2100 TYPE 1E ONLY ECH-90060000005
...
21
SHIELD ASSY, DEBRIS INCLUDES ITEMS 22-26; SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001-750714 ECH-69900440931
...
22
SHIELD, DEBRIS SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001-750714 ECH-69901027231
...
23
SCREW 5x16 SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001-750714 ECH-90024205016
...
24
CUTTER, LINE SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001-750714 ECH-C554000080
...
25
NUT M5 SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001-750714 ECH-90050000005
...
26
PLATE, SHIELD SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001-750714 ECH-C552000240
...
27
SHIELD KIT, DEBRIS INCLUDES ITEMS 28-30; SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 750715 & UP ECH-P021053450
...
28
SCREW 5x16 SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 750715 & UP ECH-90024205016
...
29
CUTTER, LINE SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 750715 & UP ECH-C554000080
...
30
NUT M5 SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 750715 & UP ECH-90050000005
...
31
PLATE, SHIELD SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 750715 & UP ECH-C552000240
...
32
SCREW 5x16 SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 750715 & UP ECH-90024205016
...
33
LABEL - CAUTION ECH-89016844830
...
34
LABEL - ECHO ECH-X502000320
...
35
TOOL, LOCKING 5x120 MM ECH-89751801131
...
36
SPANNER 8x10 ECH-89511200330
...
37
T-WRENCH 17x19 L200 ECH-X602000020
