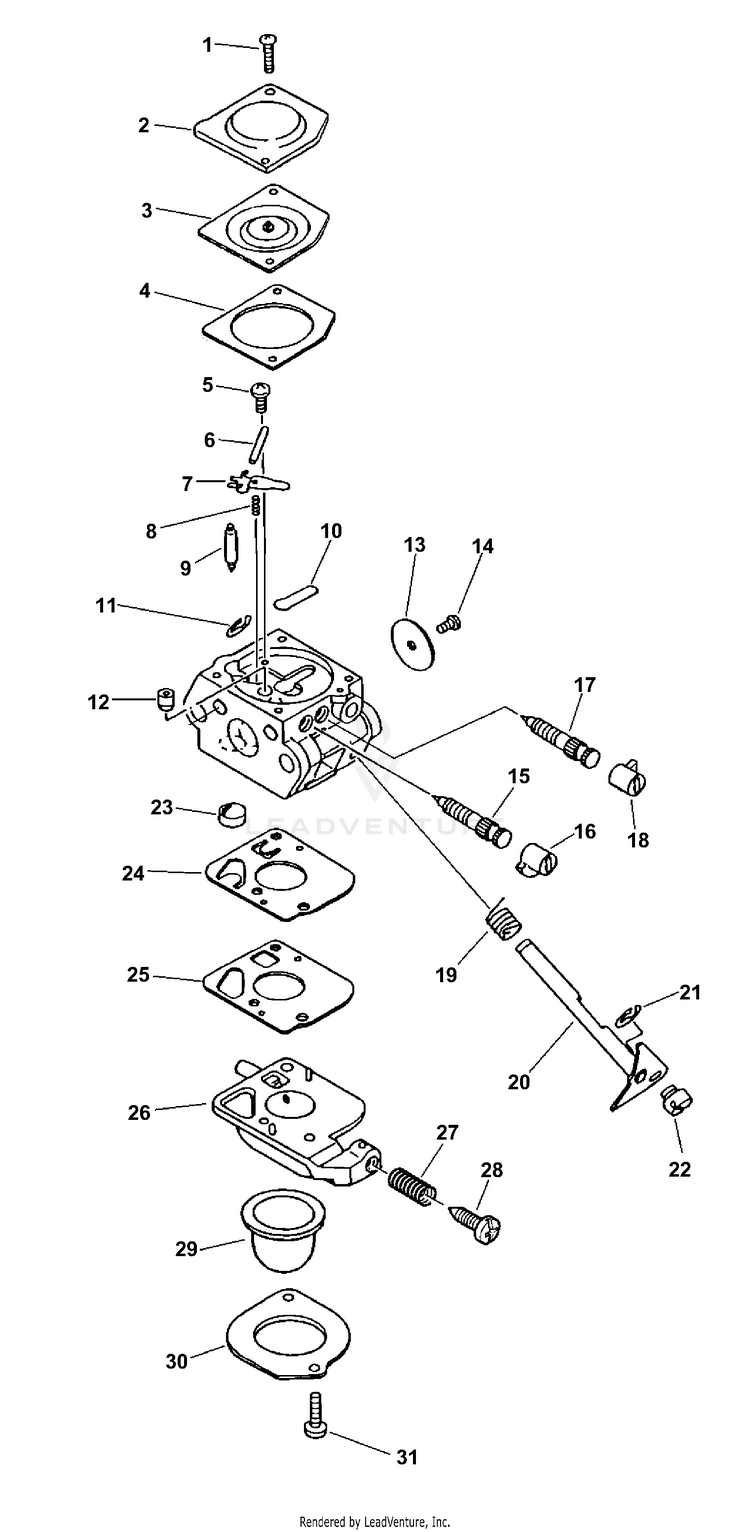

CARBURETOR C1U-K52 SRM-2400 2100 TYPE 1E S/N 008043 & UP & SRM-2110 TYPE 1E S/N 501001 & UP; INCLUDES THE FOLLOWING ITEMS:
ECH-12520013317
1
SCREW 2100 TYPE 1E S/N 008043 & UP & SRM-2110 TYPE 1E S/N 501001 & UP
ECH-12534452130
2
COVER, METERING DIAPHRAGM 2100 TYPE 1E S/N 008043 & UP & SRM-2110 TYPE 1E S/N 501001 & UP
ECH-12534252130
3
DIAPHRAGM, METERING USE REPAIR KIT 12530013310 AND GASKET/DIAPHRAGM KIT 12530313310; 2100 TYPE 1E S/N 008043 & UP & SRM-2110 TYPE 1E S/N 501001 & UP
ECH---
4
GASKET, METERING USE REPAIR KIT 12530013310 AND GASKET/DIAPHRAGM KIT 12530313310; 2100 TYPE 1E S/N 008043 & UP & SRM-2110 TYPE 1E S/N 501001 & UP
ECH---
5
SCREW 2100 TYPE 1E S/N 008043 & UP & SRM-2110 TYPE 1E S/N 501001 & UP
ECH-12533942030
6
PIN, METERING LEVER USE REPAIR KIT 12530013310; 2100 TYPE 1E S/N 008043 & UP & SRM-2110 TYPE 1E S/N 501001 & UP
ECH---
7
LEVER, METERING USE REPAIR KIT 12530013310; 2100 TYPE 1E S/N 008043 & UP & SRM-2110 TYPE 1E S/N 501001 & UP
ECH---
8
SPRING, METERING LEVER USE REPAIR KIT 12530013310; 2100 TYPE 1E S/N 008043 & UP & SRM-2110 TYPE 1E S/N 501001 & UP
ECH---
9
VALVE, NEEDLE USE REPAIR KIT 12530013310; 2100 TYPE 1E S/N 008043 & UP & SRM-2110 TYPE 1E S/N 501001 & UP
ECH---
10
PLUG, WELCH USE REPAIR KIT 12530013310; 2100 TYPE 1E S/N 008043 & UP & SRM-2110 TYPE 1E S/N 501001 & UP
ECH---
11
E-RING 2100 TYPE 1E S/N 008043 & UP & SRM-2110 TYPE 1E S/N 501001 & UP
ECH-12532715130
12
NOZZLE, CHECK VALVE 2100 TYPE 1E S/N 008043 & UP & SRM-2110 TYPE 1E S/N 501001 & UP
ECH-12537649030
13
VALVE, THROTTLE 2100 TYPE 1E S/N 008043 & UP & SRM-2110 TYPE 1E S/N 501001 & UP
ECH-12531649030
14
SCREW 2100 TYPE 1E S/N 008043 & UP & SRM-2110 TYPE 1E S/N 501001 & UP
ECH-12531413930
15
NEEDLE, HIGH SPEED 2100 TYPE 1E S/N 008043 & UP & SRM-2110 TYPE 1E S/N 501001 & UP
ECH-12532013310
16
CAP, LIMITER - RED 2100 TYPE 1E S/N 008043 & UP & SRM-2110 TYPE 1E S/N 501001 & UP
ECH-12532939030
17
NEEDLE, MIXTURE 2100 TYPE 1E S/N 008043 & UP & SRM-2110 TYPE 1E S/N 501001 & UP
ECH-12531813120
18
CAP, LIMITER - WHITE 2100 TYPE 1E S/N 008043 & UP & SRM-2110 TYPE 1E S/N 501001 & UP
ECH-12532909860
19
SPRING, THROTTLE RETURN 2100 TYPE 1E S/N 008043 & UP & SRM-2110 TYPE 1E S/N 501001 & UP
ECH-12531342030
20
SHAFT, THROTTLE 2100 TYPE 1E S/N 008043 & UP & SRM-2110 TYPE 1E S/N 501001 & UP
ECH-12531713310
21
CLIP 2100 TYPE 1E S/N 008043 & UP & SRM-2110 TYPE 1E S/N 501001 & UP
ECH-125327-13930
22
SWIVEL 2100 TYPE 1E S/N 008043 & UP & SRM-2110 TYPE 1E S/N 501001 & UP
ECH-12537242030
23
STRAINER USE REPAIR KIT 12530013310; 2100 TYPE 1E S/N 008043 & UP & SRM-2110 TYPE 1E S/N 501001 & UP
ECH---
24
DIAPHRAGM, PUMP USE REPAIR KIT 12530013310 AND GASKET/DIAPHRAGM KIT 12530313310; 2100 TYPE 1E S/N 008043 & UP & SRM-2110 TYPE 1E S/N 501001 & UP
ECH---
25
GASKET, PUMP USE REPAIR KIT 12530013310 AND GASKET/DIAPHRAGM KIT 12530313310; 2100 TYPE 1E S/N 008043 & UP & SRM-2110 TYPE 1E S/N 501001 & UP
ECH---
26
BODY ASSY, PURGE 2100 TYPE 1E S/N 008043 & UP & SRM-2110 TYPE 1E S/N 501001 & UP
ECH-P005000990
27
SPRING 2100 TYPE 1E S/N 008043 & UP & SRM-2110 TYPE 1E S/N 501001 & UP
ECH-12533306960
28
SCREW, THROTTLE ADJUST 2100 TYPE 1E S/N 008043 & UP & SRM-2110 TYPE 1E S/N 501001 & UP
ECH-12533406960
29
BULB, PURGE 2100 TYPE 1E S/N 008043 & UP & SRM-2110 TYPE 1E S/N 501001 & UP
ECH-P005003120
30
RETAINER 2100 TYPE 1E S/N 008043 & UP & SRM-2110 TYPE 1E S/N 501001 & UP
ECH-12536311610
31
SCREW 2100 TYPE 1E S/N 008043 & UP & SRM-2110 TYPE 1E S/N 501001 & UP
ECH-12531011610
