Echo SRM-2100 Type 1E Brushcutter

Model: SRM-2100 Type 1E

Back To Assemblies

Save Part Not Listed?

Popular Parts

Gasket Intake ECH-13001642031

Air Filter - Double Layer ECH-A226001410

Nut - 5 ECH-90050000005

Shield Intake ECH-V103001360

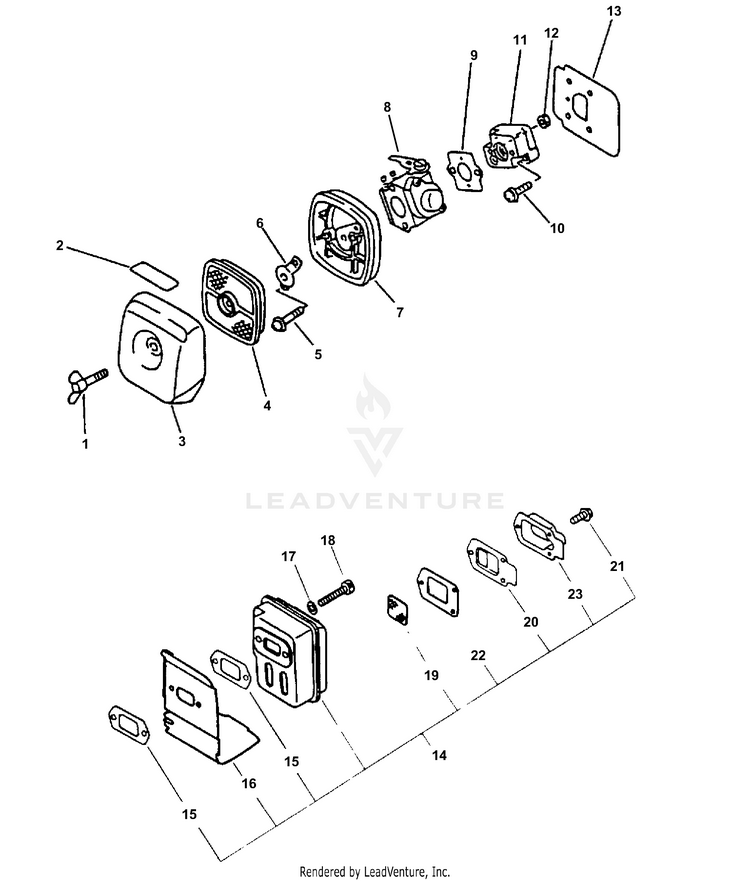

Intake, Exhaust

BOLT, WING 5x20 ECH-21041752730

LABEL - CHOKE ECH-89012106360

COVER, AIR FILTER - GRAY ECH-13031306563

FILTER, AIR - DOUBLE LAYER ECH-A226001410

SCREW 5x65 ECH-90024205065

PLATE, PREVENT ECH-12901152730

CASE, AIR FILTER - GRAY ECH-P021002921

CARBURETOR C1U-K52 SRM-2400 SEE "Carburetor" Illustration & Parts List; SRM-2100 TYPE 1E & SRM-2110 TYPE 1E - S/N 001001 - 008042 ECH-12520013317

CARBURETOR C1U-K52 SRM-2400 SEE "Carburetor" Illustration & Parts List; SRM-2100 TYPE 1E - S/N 008043 & UP, SRM-2100 TYPE 1E - 2110 1E S/N 501001 & UP ECH-12520013317

GASKET, INTAKE Included In GASKET KIT 88900042033 ECH-13001642031

SCREW 5x20 ECH-90023805020

INSULATOR, INTAKE ECH-13001742031

NUT M5 ECH-90050000005

HEAT SHIELD, INTAKE Included In GASKET KIT 88900042033 ECH-V103001360

MUFFLER ASSY INCLUDES ITEMS 15 -21 ECH-14580054133

GASKET, EXHAUST Included in GASKET KIT 88900042033 ECH-V104000160

HEAT SHIELD, EXHAUST ECH-A320000251

WASHER, FLAT 5.5x10x0.8 ECH-90060000005

BOLT 5x55 ECH-90010505055

SCREEN, SPARK ARRESTER ECH-14586240630

GUIDE, EXHAUST ECH-14587642030

SCREW 4x10 ECH-90023804010

GASKET, EXHAUST Included in GASKET KIT 88900042033; SRM-2100 TYPE 1E - S/N 001001-671697, SRM-2100 TYPE 1E - 2110 1E S/N 001001-503301 ECH-14586642031

GUIDE, EXHAUST - INNER SRM-2100 TYPE 1E - S/N 001001-671697, SRM-2100 TYPE 1E - 2110 1E S/N 001001-503301 ECH-14586354130

GASKET, EXHAUST Included in GASKET KIT 88900042033; SRM-2100 TYPE 1E - S/N 671698 & UP, SRM-2100 TYPE 1E - 2110 1E S/N 503302 & UP ECH-V104000003

GUIDE, EXHAUST - INNER SRM-2100 TYPE 1E - S/N 671698 & UP, SRM-2100 TYPE 1E - 2110 1E S/N 503302 & UP ECH-A313000000

GASKET KIT ECH-88900042036
