Echo SRM-2100 Type 1E Brushcutter

Model: SRM-2100 Type 1E

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

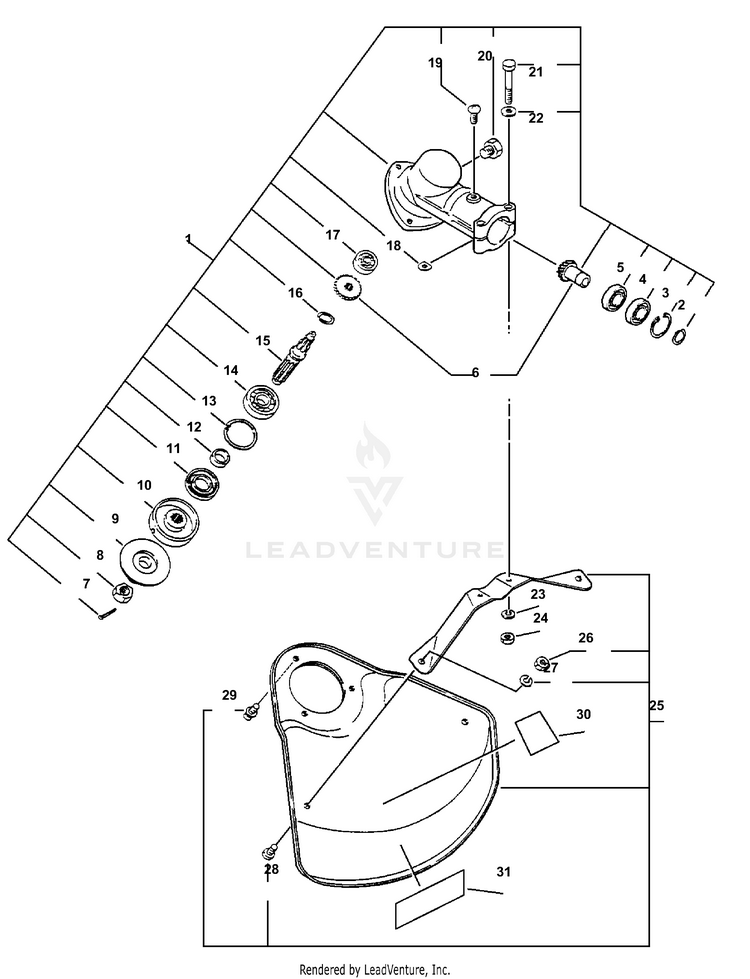

Gear Case, Shield, Tools

...
...
1
GEAR CASE ASSY INCLUDES ITEMS 2-22; SRM-2110 TYPE 1E ONLY ECH-P021046670
...
2
RING, SNAP 10 SRM-2110 TYPE 1E ONLY ECH-90070600010
...
3
RING, SNAP 22 SRM-2110 TYPE 1E ONLY ECH-90070200022
...
4
BEARING, BALL 6900Z SRM-2110 TYPE 1E ONLY ECH-90085806900
...
5
BEARING, BALL 6900 SRM-2110 TYPE 1E ONLY ECH-90085506900
...
6
GEAR SET SRM-2110 TYPE 1E ONLY ECH-61030044830
...
7
PIN, COTTER 2x22 BULK OPTION: 89850201130 - 10 PACK SRM-2110 TYPE 1E ONLY ECH-90030020022
...
8
NUT 10 SRM-2110 TYPE 1E ONLY ECH-90051100010
...
9
PLATE, ADAPTOR - LOWER SRM-2110 TYPE 1E ONLY ECH-C535000150
...
10
PLATE, ADAPTOR - UPPER SRM-2110 TYPE 1E ONLY ECH-C535000160
...
11
SEAL, OIL 22 SRM-2110 TYPE 1E ONLY ECH-61041307130
...
12
SPACER 11.8x15x9 SRM-2110 TYPE 1E ONLY ECH-61031507130
...
13
RING, SNAP 32 SRM-2110 TYPE 1E ONLY ECH-90070200032
...
14
BEARING, BALL 6201 SRM-2110 TYPE 1E ONLY ECH-9403536201
...
15
SHAFT, GEAR SRM-2110 TYPE 1E ONLY ECH-C534000270
...
16
RING, SNAP 12 SRM-2110 TYPE 1E ONLY ECH-90070600012
...
17
BEARING, BALL 609 SRM-2110 TYPE 1E ONLY ECH-90080000609
...
18
D-WASHER SRM-2110 TYPE 1E ONLY ECH-61023904130
...
19
SCREW 5x10 SRM-2110 TYPE 1E ONLY ECH-90024205010
...
20
BOLT 8x8 SP SRM-2110 TYPE 1E ONLY ECH-90010008008
...
21
BOLT 5x35 SP SRM-2110 TYPE 1E ONLY ECH-90010005035
...
22
WASHER, FLAT 5.5x10x0.8 SRM-2110 TYPE 1E ONLY ECH-90060000005
...
23
WASHER, SPRING 5 SRM-2110 TYPE 1E ONLY ECH-90060500005
...
24
NUT M5 SRM-2110 TYPE 1E ONLY ECH-90050000005
...
25
SHIELD ASSY, METAL DEBRIS INCLUDES ITEMS 26-29; SRM-2110 TYPE 1E ONLY ECH-69900023432
...
26
NUT M5 SRM-2110 TYPE 1E ONLY ECH-90050000005
...
27
WASHER, SPRING 5 SRM-2110 TYPE 1E ONLY ECH-90060500005
...
28
SCREW 5x8 SRM-2110 TYPE 1E ONLY ECH-90022005008
...
29
SCREW 5x10 SRM-2110 TYPE 1E ONLY ECH-90024205010
...
30
LABEL - CAUTION SRM-2110 TYPE 1E ONLY ECH-89016844830
...
31
LABEL - ECHO SRM-2110 TYPE 1E ONLY ECH-X502000320
