Echo SRM-202F Brushcutter

Model: SRM-202F

Back To Assemblies

Save Part Not Listed?
product name

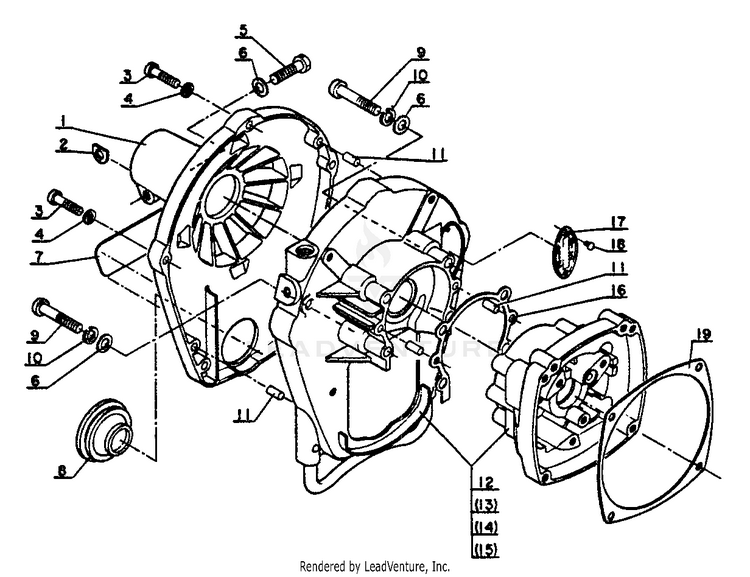

Crankcase, Fan Housing

...
...
1
CASE, FAN ECH-10151104631
...
2
D-WASHER ECH-61023904130
...
3
SCREW 4x18 ECH-90022004018
...
4
WASHER 4 MM ECH-90060000004
...
5
BOLT - 5x20 ECH-90010005020
...
6
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
7
NAME PLATE ECH-89003404630
...
8
COVER, SPARK PLUG ECH-15901504630
...
9
SCREW 5x28 ECH-90022005028
...
10
WASHER, SPRING 5 ECH-90060500005
...
11
PIN, LOCATING 4 ECH-V622000020
...
12
CRANKCASE SET ECH-10020004632
...
13
N/A ECH---
...
14
STAND ECH-30511004630
...
15
N/A ECH---
...
16
GASKET, CRANKCASE ECH-10024204630
...
17
MODEL PLATE ECH-89001004630
...
18
RIVET ECH-89001100130
...
19
GASKET, STARTER ECH-10061504631
