Echo SRM-200BE Brushcutter

Model: SRM-200BE

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

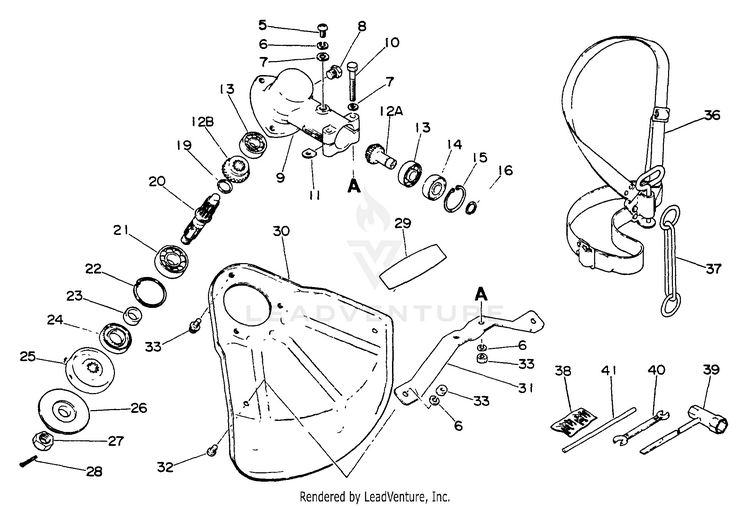

Shield, Gear Case, Harness, Tools

...
...
xx
GEAR CASE ASSY Consists of items 5 thru 28 ECH-61040208932
...
5
SCREW 5x10 ECH-90022005010
...
6
WASHER, SPRING 5 ECH-90060500005
...
7
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
8
BOLT 8x8 SP ECH-90010008008
...
9
GEAR HOUSING ECH-61046008931
...
10
BOLT 5x35 SP ECH-90010005035
...
11
D-WASHER ECH-61023904130
...
12
GEAR SET ECH-61030108930
...
12A
GEAR SET See Ref No. 12, Gear set, P/N 61030108930 ECH-61030108930
...
12B
GEAR SET See Ref No. 12, Gear set, P/N 61030108930 ECH-61030108930
...
13
BEARING, BALL 609 ECH-90080000609
...
14
BEARING, BALL 609Z ECH-90080300609
...
15
RING, SNAP 25 ECH-90070200025
...
16
RING, SNAP 9 ECH-90070600009
...
19
RING, SNAP 12 ECH-90070600012
...
20
SHAFT, GEAR ECH-C534000270
...
21
BEARING, BALL 6201 ECH-9403536201
...
22
RING, SNAP 32 ECH-90070200032
...
23
SPACER 11.8x15x9 ECH-61031507130
...
24
SEAL, OIL 22 ECH-61041307130
...
25
PLATE, ADAPTOR - UPPER ECH-C535000160
...
26
PLATE, ADAPTOR - LOWER ECH-C535000150
...
27
NUT 10 ECH-90051100010
...
28
PIN, COTTER 2x22 BULK OPTION: 89850201130 - 10 PACK ECH-90030020022
...
29
LABEL - ECHO ECH-X502000320
...
30
SHIELD ASSY Includes items 6, 31 thru 33 ECH-69900020330
...
6
WASHER, SPRING 5 ECH-90060500005
...
31
BRACKET, SHIELD MOUNTING ECH-69901523431
...
32
SCREW 5x8 ECH-90022005008
...
33
NUT M5 ECH-90050000005
...
36
HARNESS ASY Includes item 37 ECH-30100055232
...
37
RING, HARNESS ECH-30130524330
...
38
PIN, COTTER 2x22 (PKG. OF 10) ECH-89850201130
...
39
T-WRENCH 17x19 L200 ECH-X602000020
...
40
SPANNER 8x10 ECH-89511200330
...
41
TOOL, LOCKING 5x120 MM ECH-89751801131
...
xx
BLADE - 8 TOOTH OPTIONAL ECH-69600108330
...
xx
SAW, CIRCULAR OPTIONAL ECH-69500108330
